Proprietary Protective Signaling Systems Appendix D: NFPA Standard-Specific Requirements
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
93
Proprietary Protective Signaling Systems
Notes:
1. Connection between the AFP-100 and the transmitter are supervised by the transmitter.
2. This AFP-100/Transmitter arrangement can be employed for NFPA 72 Proprietary Protective
Signaling System.

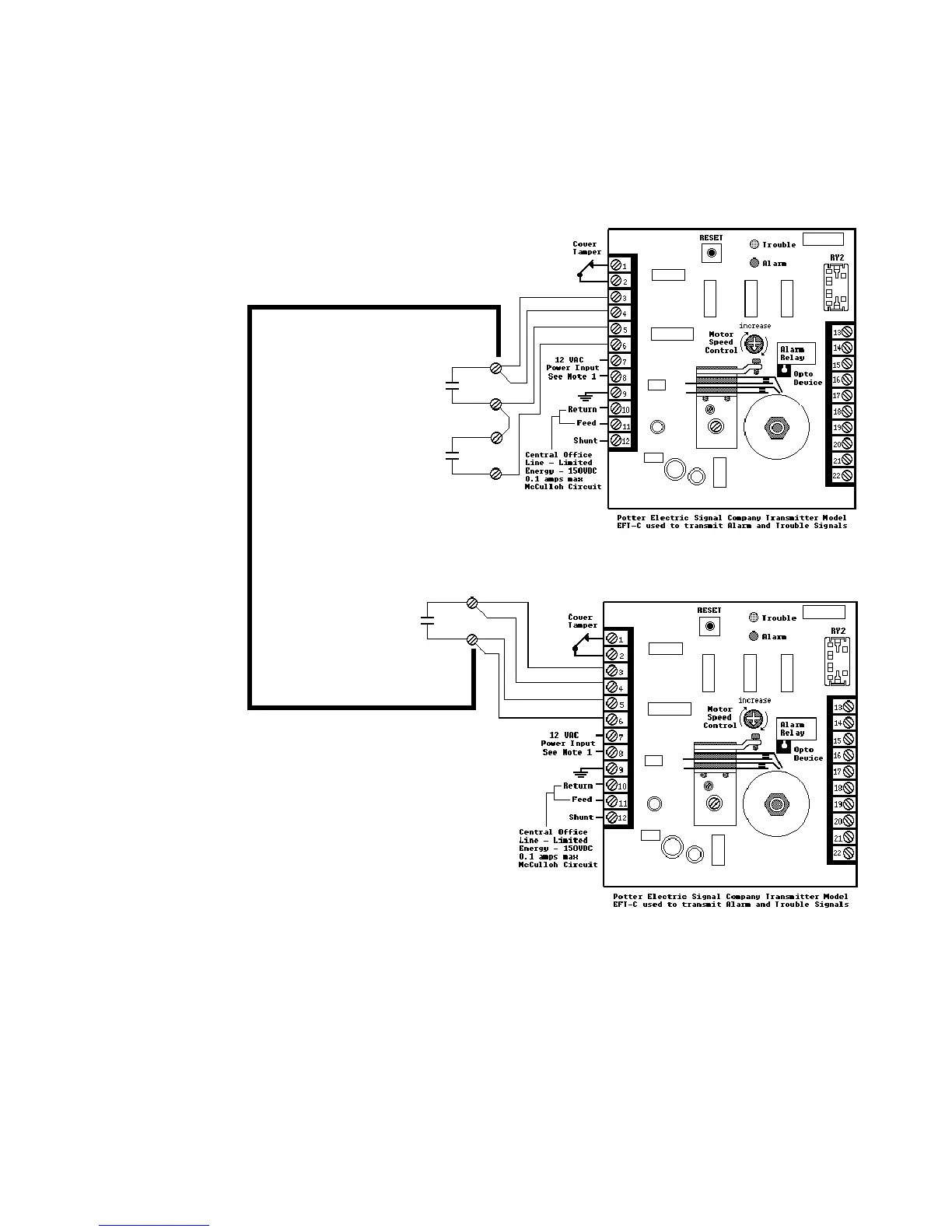

Figure 30 Proprietary Protective Signaling System
Form-A relay contact
programmed to activate on
Supervisory condition.
Form-C Trouble contact
which will automatically
activate on any Trouble
condition.
Form-C Alarm contact
programmed to activate
on General Alarm.
AFP-100 Main Board
AFP-100 Addressable Fire Control Panel
