2. Installation
Cabinet Mounting
26
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
Cabinet Mounting
This section provides instructions for mounting the AFP-100 cabinet. Follow these guidelines when
mounting the backbox:
Caution: Unless you are familiar with the placement of components within this cabinet, only use the
knockout locations provided for conduit entry.
• Locate the top of the cabinet approximately 5 feet (1.5 m) above the floor with the hinge
mounting on the left.
• Use the four holes in the back surface of the backbox to provide secure mounting.
• Mount the cabinet on a surface that is in a clean, dry, vibration free area.

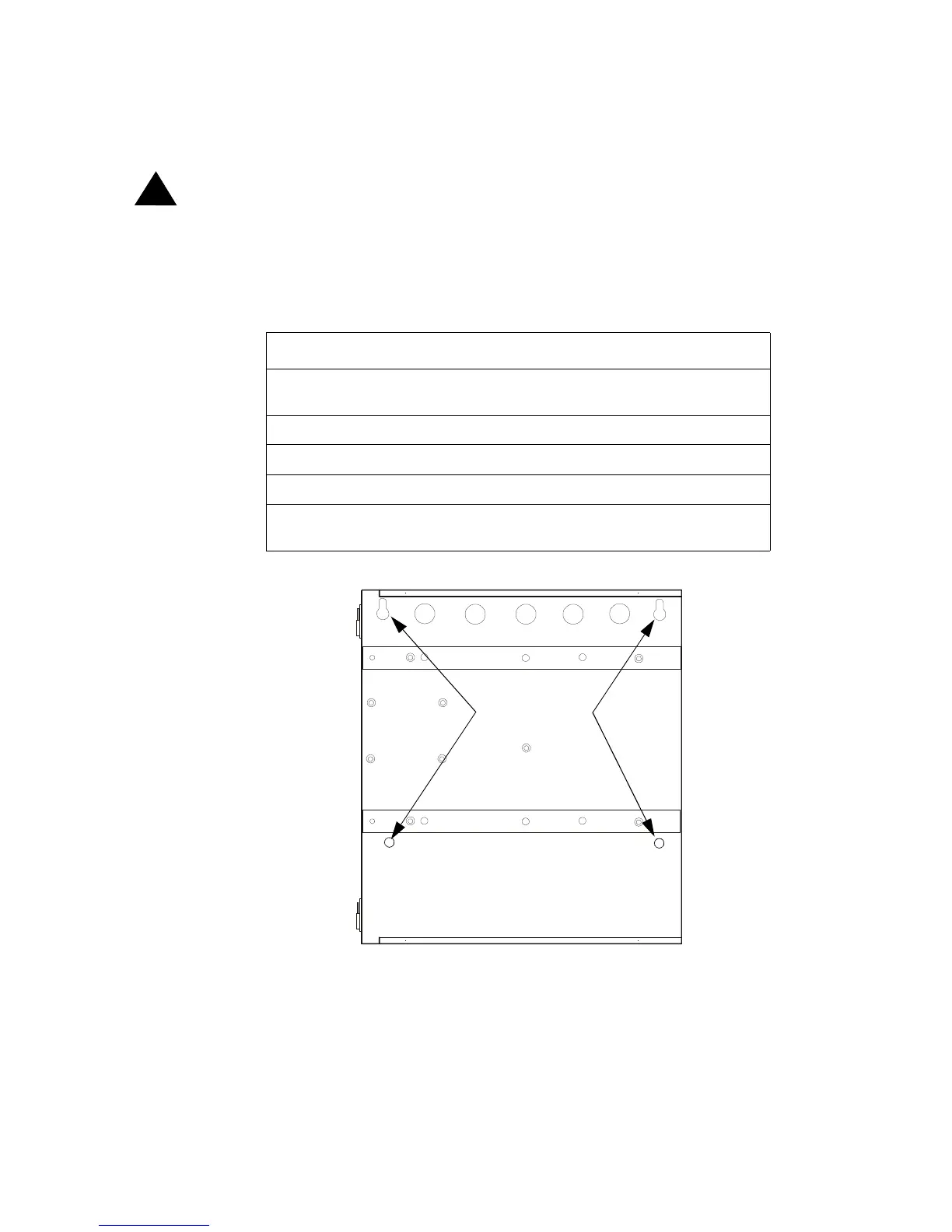

The figure below shows the mounting hole location of the cabinet backbox:
Figure 4 Mounting Holes of Backbox
Step Action
1 Mark and predrill holes for the top two keyhole mounting bolts using the
dimensions shown below.
2 Install two upper fasteners in the wall with the screw heads protruding.
3 Using the upper “keyholes,” mount the backbox over the two screws.
4 Mark and drill the lower two holes.
5 Secure backbox by installing the remaining fasteners and tightening all
screws.
!
AFP1bbox.cdr
MOUNTING HOLES
