Cabinet Mounting

2. Installation

AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002

Shown below are dimensions for the AFP-100 cabinet.

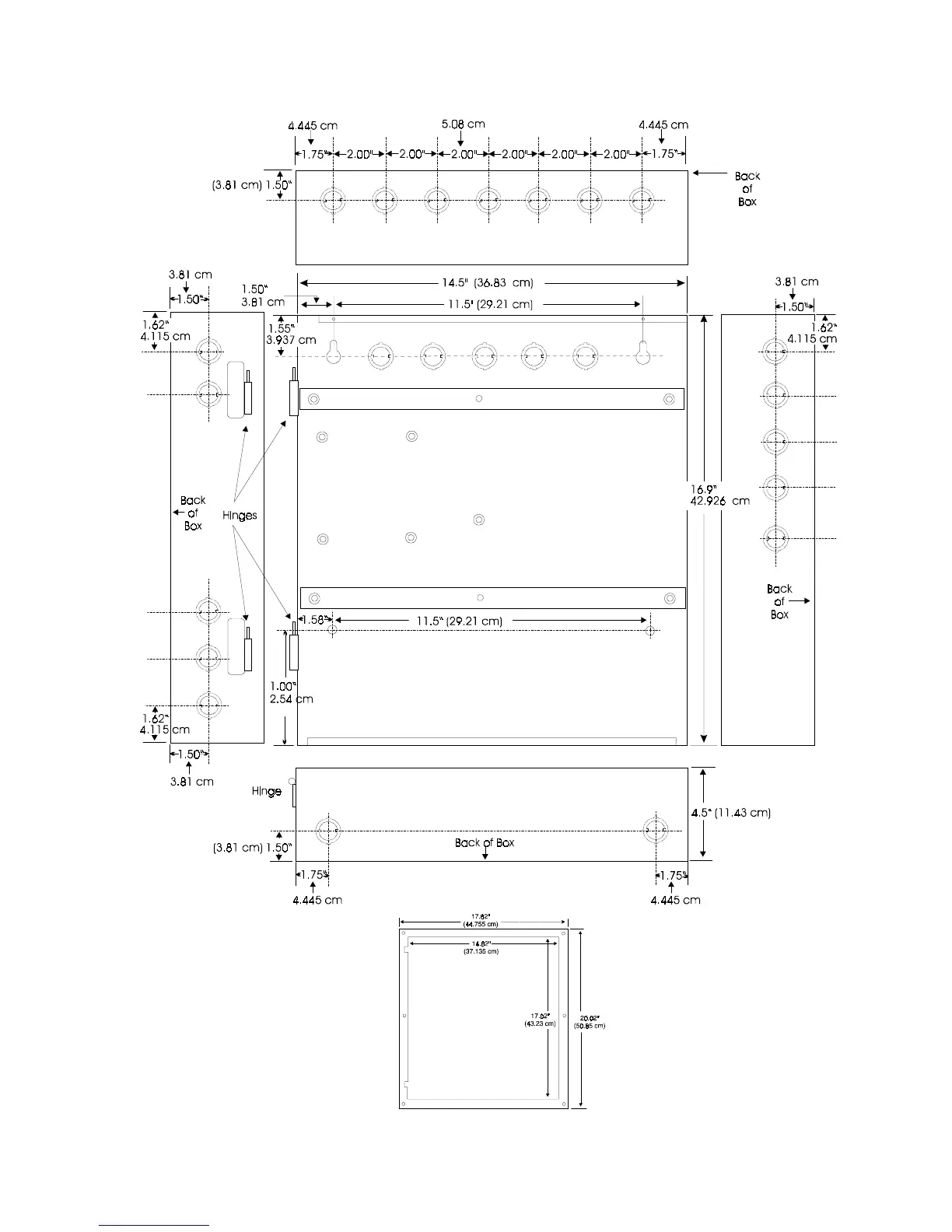

Figure 5 AFP-100 Cabinet Dimensions

TR-4-R Trim Ring
