Notifier AFP-100 User Manual

Printer and PC Interface
2. Installation
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
39
Printer Configuration
Refer to the documentation supplied with the printer for additional pertinent information. Set the
printer's options as listed below:
PC Configuration
Connecting the control panel to a PC requires the following:
• The Windows-based VeriFire CD Medium System Programming Utility
PIM-24 Interface Module
 !"#$%&!"
'()'(#*&%&!
+,!#-#
&.'(#*/&

0
&.

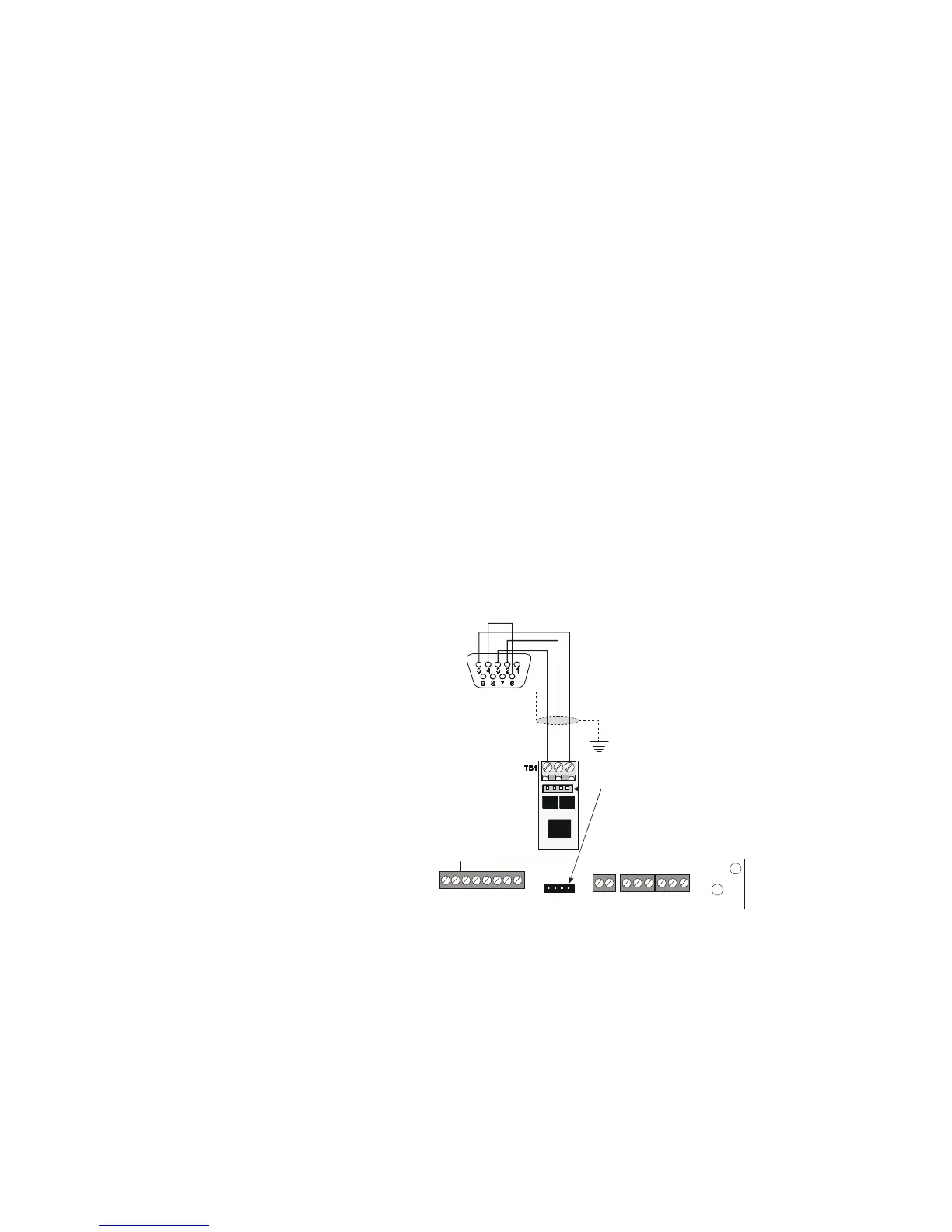

Figure 18 Printer and Computer Connections with PIM-24
BUFFER: LARGE
DATA BITS: 7
PARITY: EVEN
STOP BIT: 1 STOP
BAUD RATE: 2400
SUPV
ALARM
TROUBLE
OPTIO N
PRINTER
& UP/DOWN LOAD
J11
NO C NO NC C NO NC C
A B B+ A+ B- A-
1 COMM 2
ACS
SHIELD
SLC SLC
T
B
3
T
B
5
T
B
6
9200DB9F.cdr
Plug this DB9 connector
into the EAI-232 port of
the printer or PC.
J1 (on back)
Connect to J11
PIM-24
