1. Product Description
Circuits
14
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
Circuits
Shown below is a layout of the terminal blocks on the main circuit board and a breif description of what
is provided.

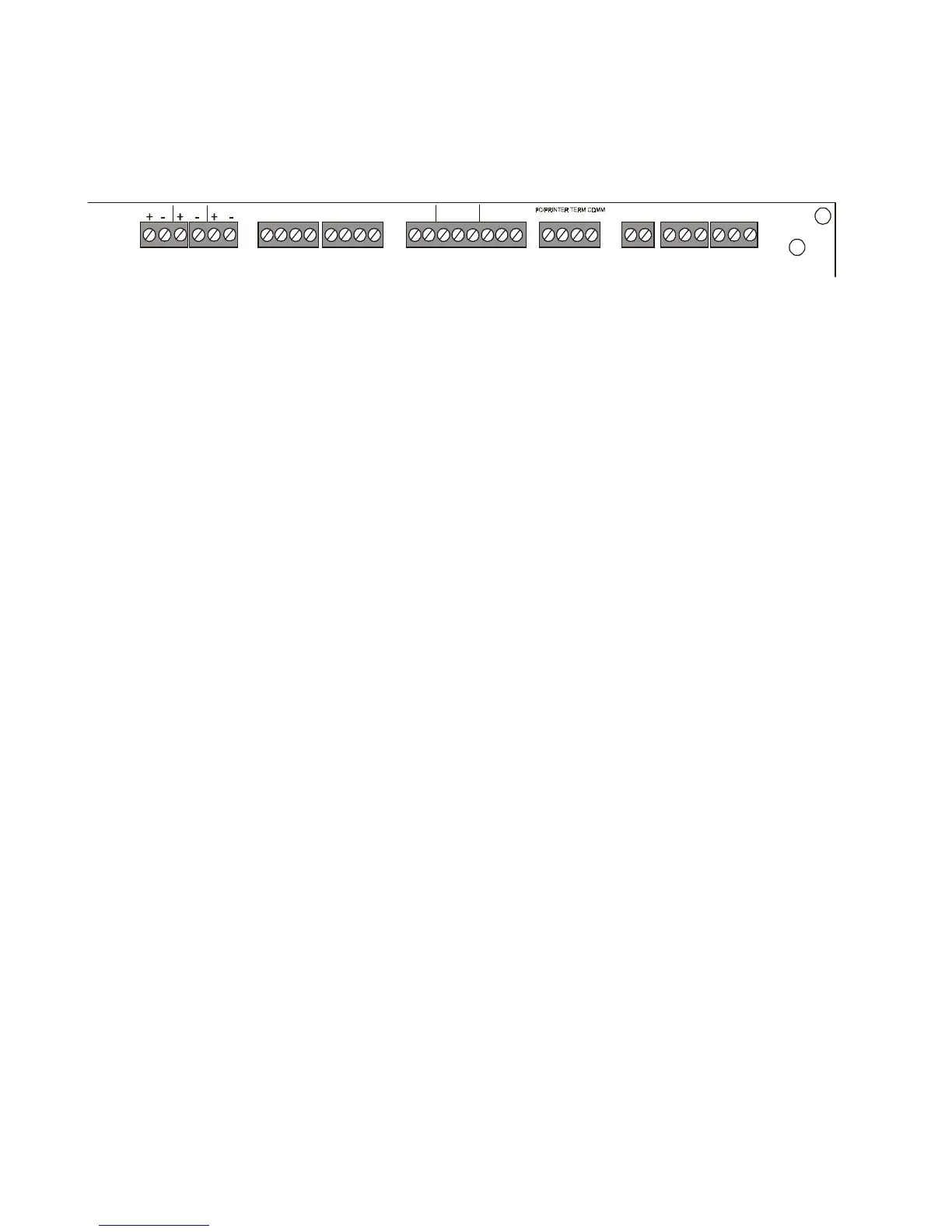

Figure 3 Terminal Layout
Signaling Line Circuit (SLC)
One SLC, configurable for NFPA Style 4, 6 or 7, is provided for communication to addressable monitor
(initiating device) and control (output device) modules.
Output Circuits
The following output circuits are available on the FACP:
• 24 VDC Resettable Power Output 300 mA
• 24 VDC Nonresettable Power Output 300 mA
• 24 VDC Battery Charger (up to 18 AH batteries)
Notification Appliance Circuits (NACs)
Two NACs, configurable for Style Y (Class B) or Style Z (Class A), are provided with various
programmable features.
Relays
Three dry contact relays are provided for System Alarm and System Trouble (Form-C contacts) and
Supervisory (Form-A contacts). Contacts are rated 2.0 amps @ 30 VDC (resistive) and 0.5 amps @ 30
VAC (resistive).
24V UNREG 24V NONRS 24V RST BELL 2 POWER BELL 1 POWER SUPV ALARM TROUBLE
B+ A+ A- B- B+ A+ A- B- NO C NO NC C NO NC C A B B+ A+ B- A-
1 COMM 2
ACS SHI ELD SLC SLC
OUT+ IN+ OUT- IN-
T
B
4
T
B
2
T
B
1
T
B
3
T
B
7
T
B
5
T
B
6
24 VDC Power
9200edge.cdr
NACs
Relays
SLC
