DC Power Output Connections
2. Installation
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
31
DC Power Output Connections
All DC power outputs are power-limited and connections are available from TB4 on the control panel
as shown below.

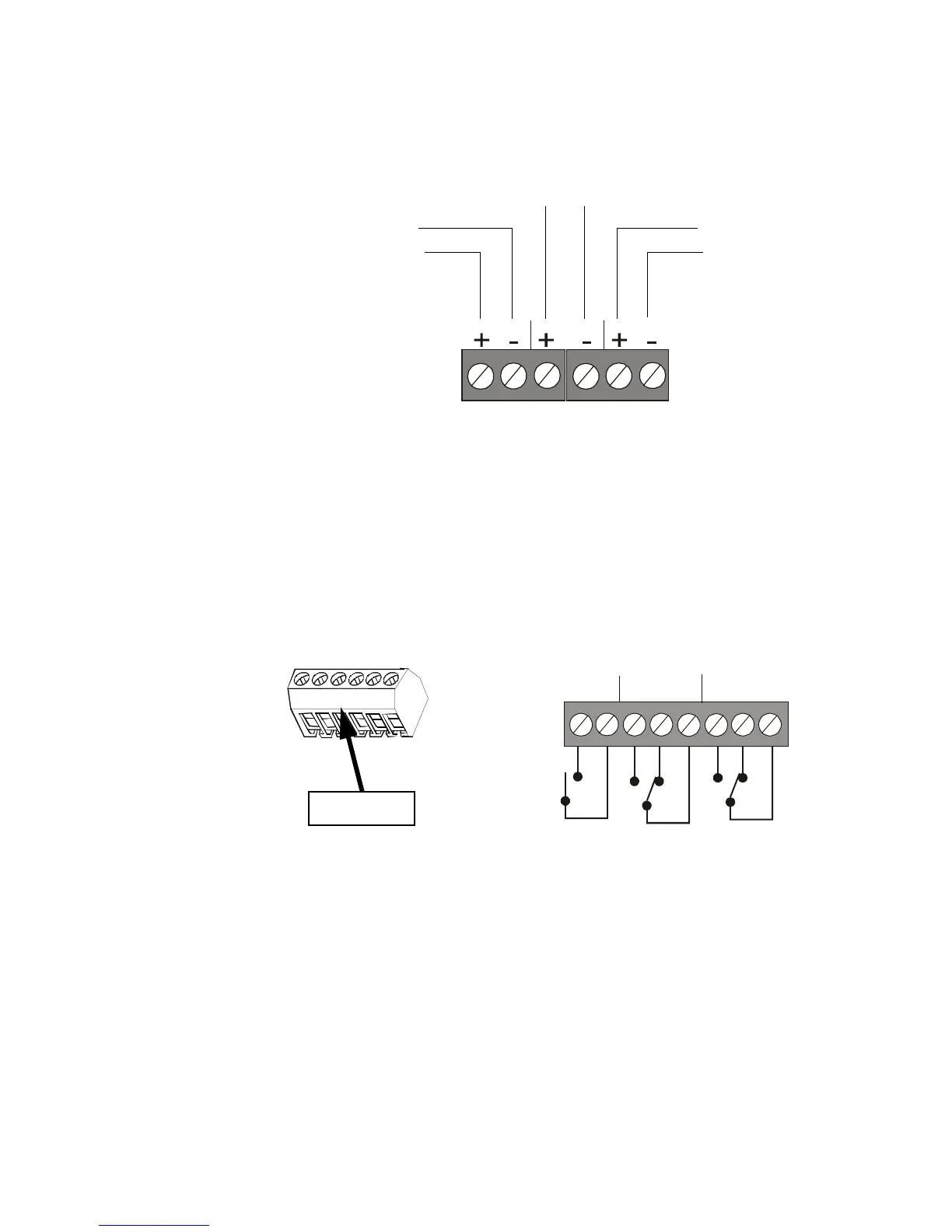

Figure 9 DC Power Outputs (TB4)
Standard Relays Circuits
Through terminal block TB3 the AFP-100 provides a set of Form-C alarm and Form-C trouble contacts
rated for 2.0 amps @ 30 VDC (resistive). The control panel also provides a Form-A supervisory contact
rated for 2.0 amps @ 30 VDC (resistive).
Relay connections may be power-limited or nonpower-limited, provided that 0.25 inch spacing is
maintained between conductors of power-limited and nonpower-limited circuits, or leave one unused
terminal between power-limited and nonpower-limited circuits.
Note: Note: If relays are used as power-limited circuits, affix supplied label to terminal block to indicate use of
power-limited wiring.
Figure 10 Relay Connections (TB3)
Nonregulated Special Purpose
Power
2.5 amps, 24 VDC power for
Notification Appliance Circuits.
Resettable Power
300 mA, 24 VDC nominal
Filtered, resettable power.
Note: This power is unsuitable for
EIA-485 annunciation devices.
Nonresettable Power
300 mA, 24 VDC nominal
Filtered, nonresettable power.
9200-DCpwrout.cdr
24V UNREG
24V NONRS 24V RST
T
B
4
SUPV
ALARM
TROUBLE
NO C NO NC C NO NC C
T
B
3
Power
Limited
Power
Limited
9200-relays.cdr
