1. Product Description
Optional Internal Modules
20
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
Optional Internal Modules
The AFP-100 main circuit board includes option module connectors which are located on the right side
of the board. Available optional modules are as follows:

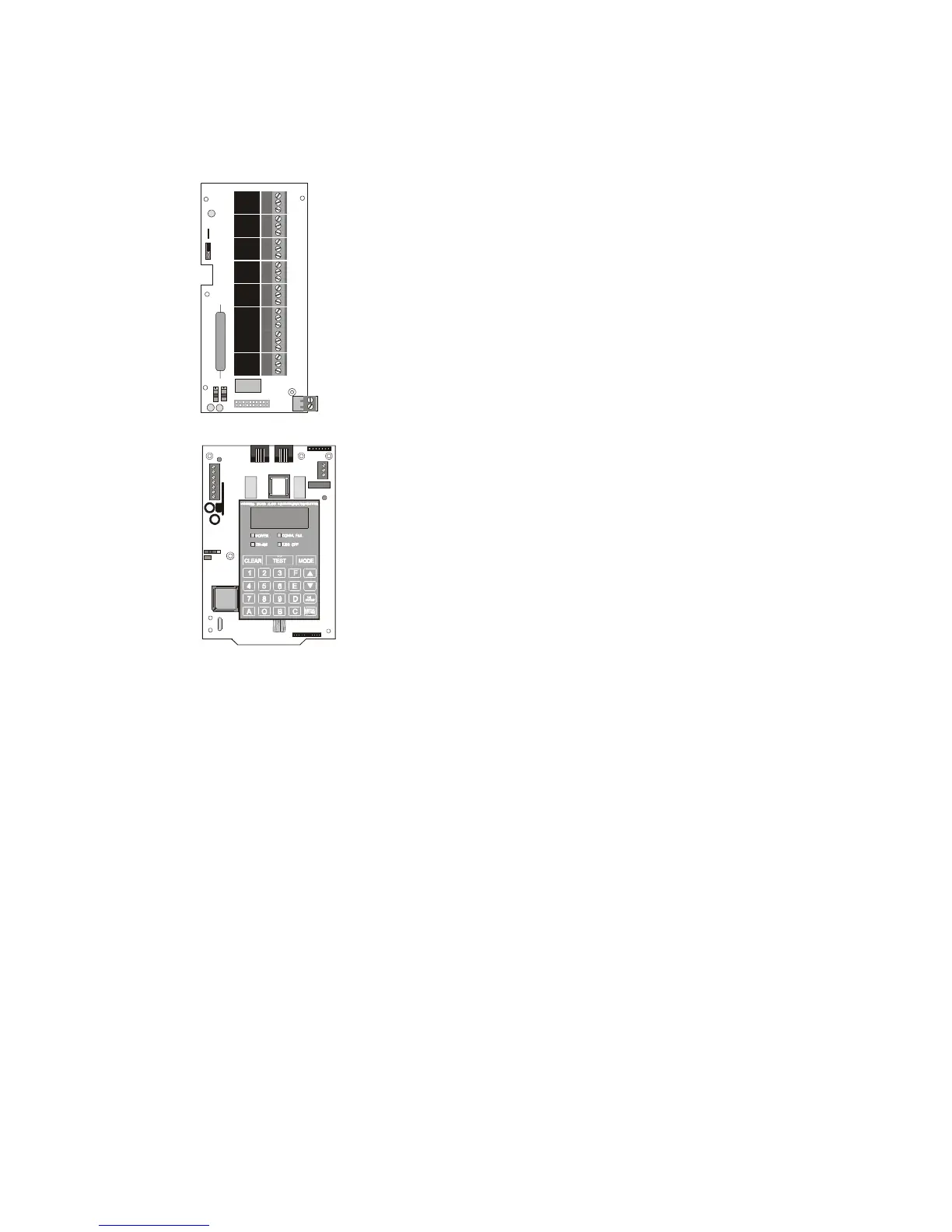

RTM-8F Relay/Transmitter Module
The RTM-8F provides eight high current (5 amps) Form-C relays. These
relays track software zones 1 through 8. The module also provides
Municipal Box or Remote Station transmitters. A control panel equipped
with an RTM-8F meets NFPA 72 codes for Auxiliary and Remote Station
requirements. In remote station applications, the RTM-8F can be
configured to transmit alarm only or alarm and trouble signals. Disable
switches and indicators are provided on the RTM-8F module. The module
plugs into connector J6 and mounts on the right side of the AFP-100 main
circuit board.
Refer to "Installing a RTM-8F Module" on page 35 for additional
information.
UDACT - Universal Digital Alarm Communicator/Transmitter
The UDACT transmits system status to UL-listed Central Station receivers
through the public switched telephone network. The UDACT is compact in
size and may be mounted inside the FACP cabinet, plugging into the J16
connector, or may mount externally in a separate cabinet. EIA-485
annunciator communications bus and filtered 24 VDC connections are
required. The UDACT transmits 198 points or 56 zones when connected to
the AFP-100.
For more information and installation instructions refer to the UDACT
Instruction manual.
Refer to "System Edit" on page 49, for information on programming the
AFP-100 for use with the UDACT.
PIM-24 Printer/PC Interface Module
Older versions of the AFP-100 main circuit board will require the PIM-24 Printer/PC Interface Module
to permanently connect a printer to the control panel or to connect a computer for upload/download of
programming data. The module plugs into the J11 connector on the older AFP-100 main circuit board.
Note: The PIM-24 option cannot be used simultaneously with the DIM-485/LCD-2x20 option.
DIM-485 Display Interface Module
Older versions of the AFP-100 main circuit board will require the DIM-485 Display Interface Module
to connect an LCD-2X20 Series Remote Fire Annunciator to the control panel. The module plugs into
the J11 connector on the older AFP-100 main circuit board.
Note: The the DIM-485 and LCD-2x20 cannot be used simultaneously with the PIM-24 module.
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
RTM-8F.cdr
UDACT-01.cdr
