Notifier AFP-100 User Manual

Auxiliary Fire Alarm System Appendix D: NFPA Standard-Specific Requirements
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
91
Auxiliary Fire Alarm System
All connections are power-limited and supervised. This applications is not suitable for separate
transmission of sprinkler supervisory or trouble conditions.
General Notes:
1. The maximum loop resistance allowed for wiring from the AFP-100 to Municipal Box is 3 ohms.
2. Cut JP4 on the AFP-100 main circuit board to supervise placement of RTM-8F module and circuit.
3. Jumper JP2 must be in position LE MUNCPL BOX for use in this application.
4. For information on UL power-limited wiring requirements see "UL Power-limited Wiring
Requirements" on page 34.

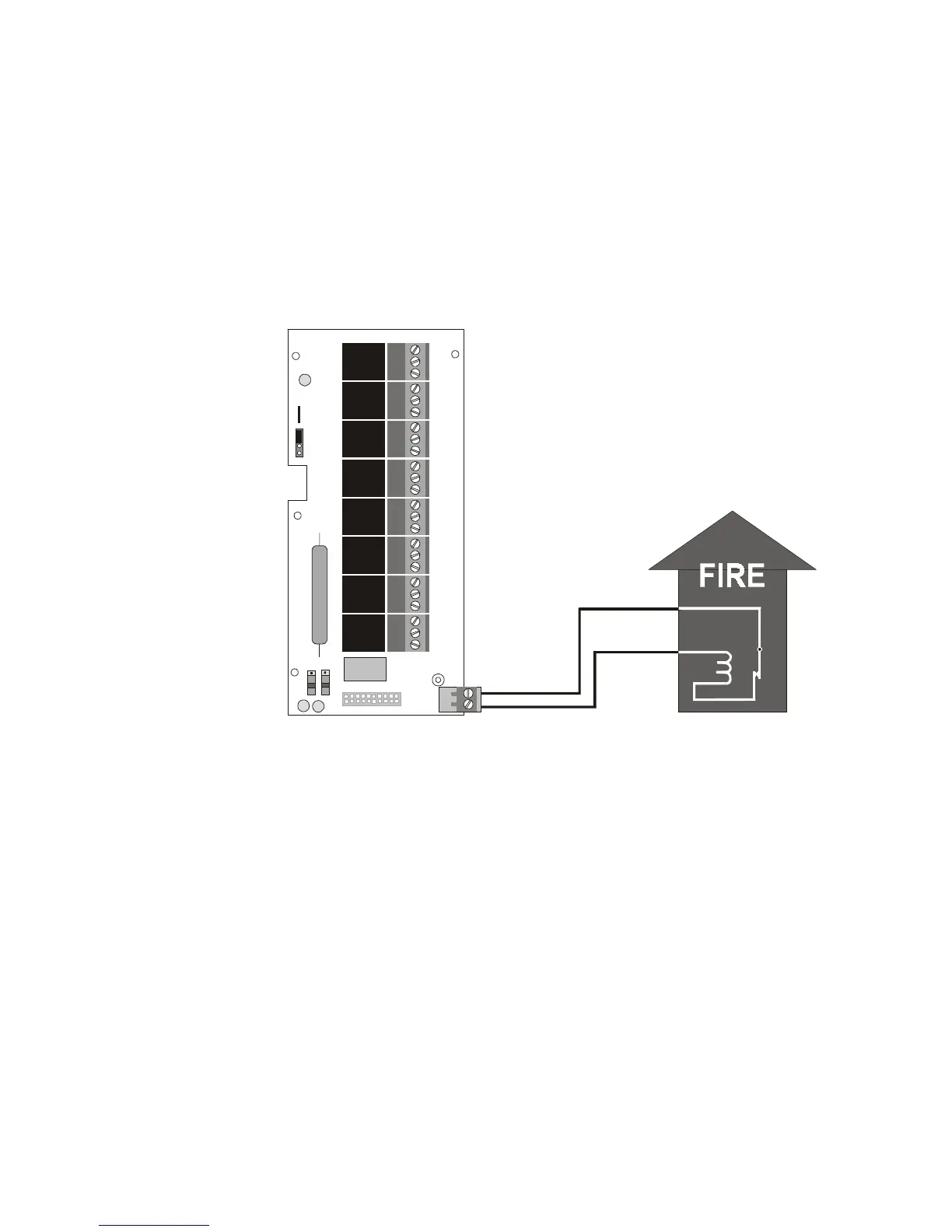

Figure 28 Municipal Box Connected to RTM-8F
+
+
–
–
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
Gamewell Model M34-56
Local Energy Municipal Box
Nonpower-limited
Polarities shown in alarm condition
Municipal Box
Circuit
JP2
AFP1mbox.cdr
RTM-8F
