Notifier AFP-100 User Manual

Appendix D: NFPA Standard-Specific Requirements Remote Station Protective Signaling System
92
AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
Remote Station Protective Signaling System
General Notes:
1. Cut Jumper JP4 on the AFP-100 main circuit board to supervise placement of the RTM-8F module.
2. Jumper JP1 must be cut for polarity reversal Remote Station operation.
3. Jumper JP2 must be in position ALARM/TROUBLE REVERSE POLARITY for use in alarm
and trouble transmission or ALARM ONLY for alarm transmission only.
4. For information on UL Power-limited wiring requirements see "UL Power-limited Wiring
Requirements" on page 34 .

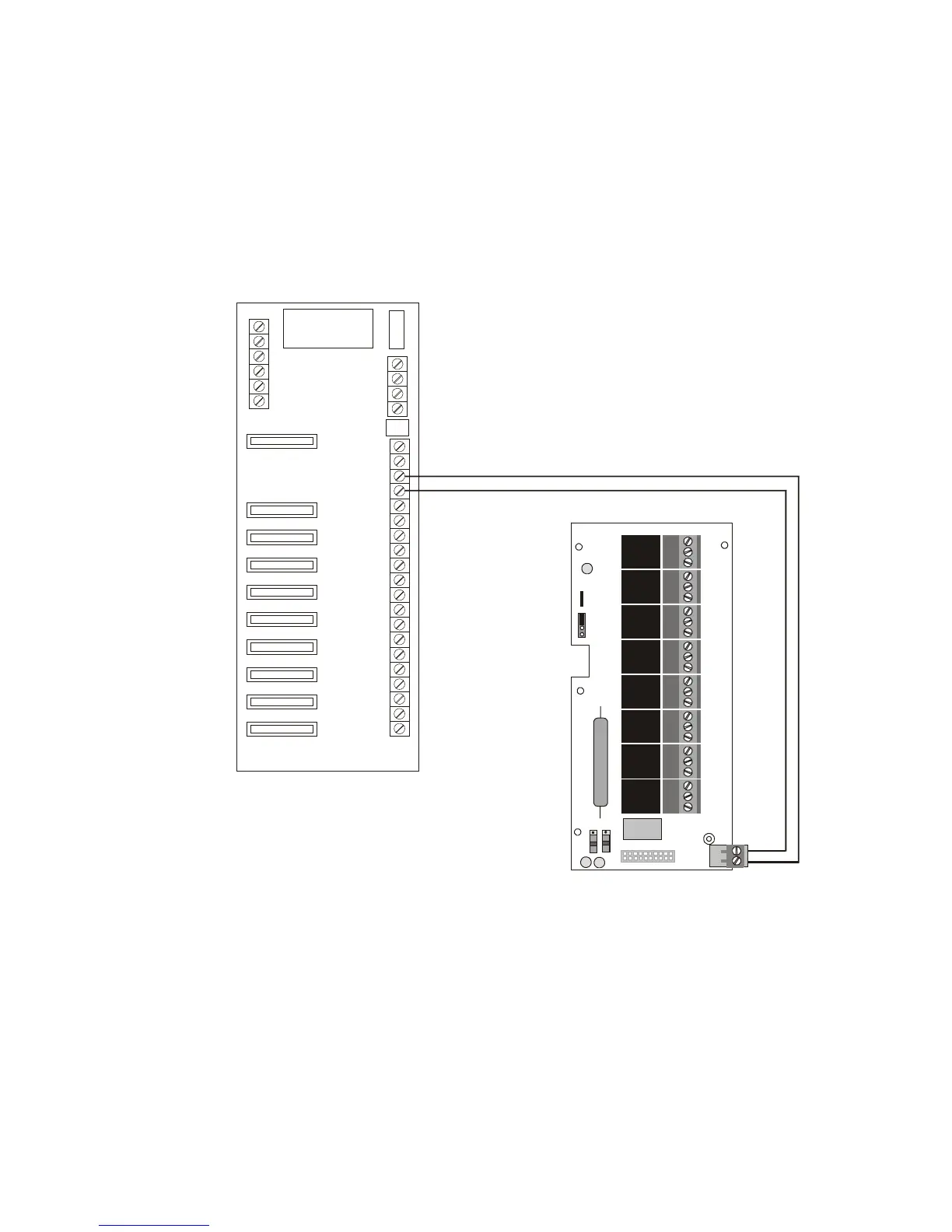

Figure 29 NFPA 72 Remote Station Protective Signaling System
2
1
2
1
4
3
2
1
2
1
2
1
2
1
2
1
2
1
2
1
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
C
NC
NO
Fire•Lite RS-82 Receiving Station (UL listed).
Refer to RS82 Remote Station Receiver Manual.
+
–
Polarity Shown is
Normal Standby
RTM-8F
(not suitable for transmission
of separate alarm and trouble
signals to Remote Station)
JP1
JP2
Power-limited
AFP1rs82.cdr
–
+
