AFP-100/AFP-100E Instruction PN 51010:C1 02/06/2002
89
Central & Remote Station Service (Protected Premises Unit)
The following figure illustrates the use of an MS-5012.
General Notes:
1. Program the MS-5012 for slave operation.
2. SW2 Trouble/No AC switch located on the bottom right of the AFP-100 main circuit board, must be
positioned in the down position for this application. This prevents the transmission of a trouble on
the loss of AC power.

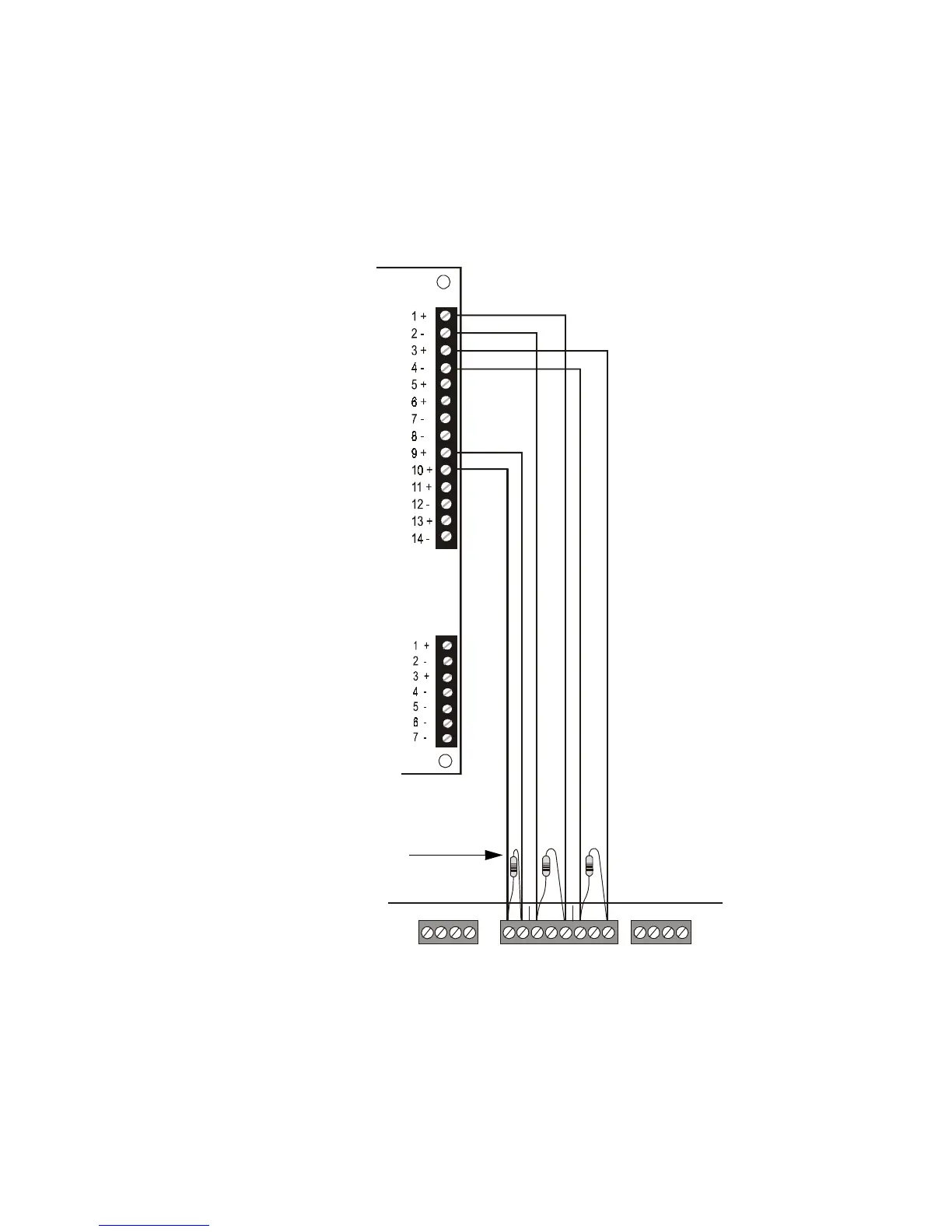

Figure 26 Central Station Service Using MS-5012
TB2
TB3
BELL 1 POWER
SUPV
ALARM
TROUBLE
PC/PRINTER TERM COMM
B+ A+ A- B-
NO C NO NC C NO NC C
OUT+ IN+ OUT- IN-
T
B
1
T
B
3
T
B
7
MS-5012
Alarm
Trouble
Supv.
ELR = 2.2K ohms
(supplied with MS-5012)
AFP-100
AFP1ms5012.cdr
