NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
106
5. Place a checkmark in “Enable SNMP Traps” checkbox under the sensor configuration for each sensor that should send traps
when there is an alert. If you want them sent for Critical Alerts and Non-Critical Alerts, there is a checkbox for each level.

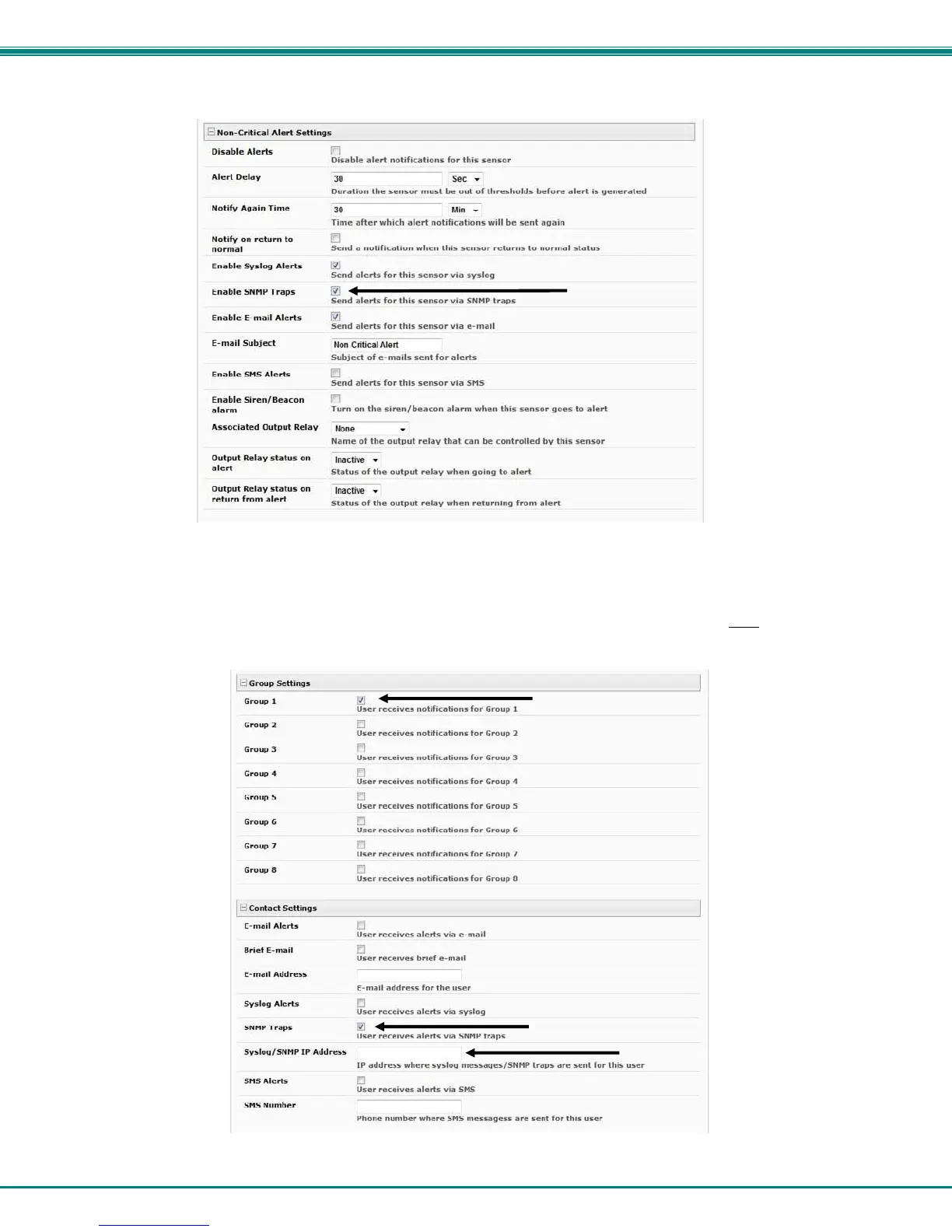

Figure 111- Enable SNMP Traps for the sensor
Under User Settings
:
6. Apply a checkmark to the Group number(s) for the sensor(s) you want to receive SNMP traps about.
7. Be sure to apply a checkmark in the “SNMP Traps” box under Configure User ->Contact Settings for each
user that should
receive SNMP traps
8. Enter a valid IP address where traps are to be sent for each user.
Figure 112- User Settings required for SNMP Traps
