NTI ENVIROMUX-16D User Manual

NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
19
Power Connection-ENVIROMUX-16D
Connect the power cord supplied to the IEC connector on the rear of ENVIROMUX-16D. Plug the other end into AC mains and
use the switch to power ON ENVIROMUX.

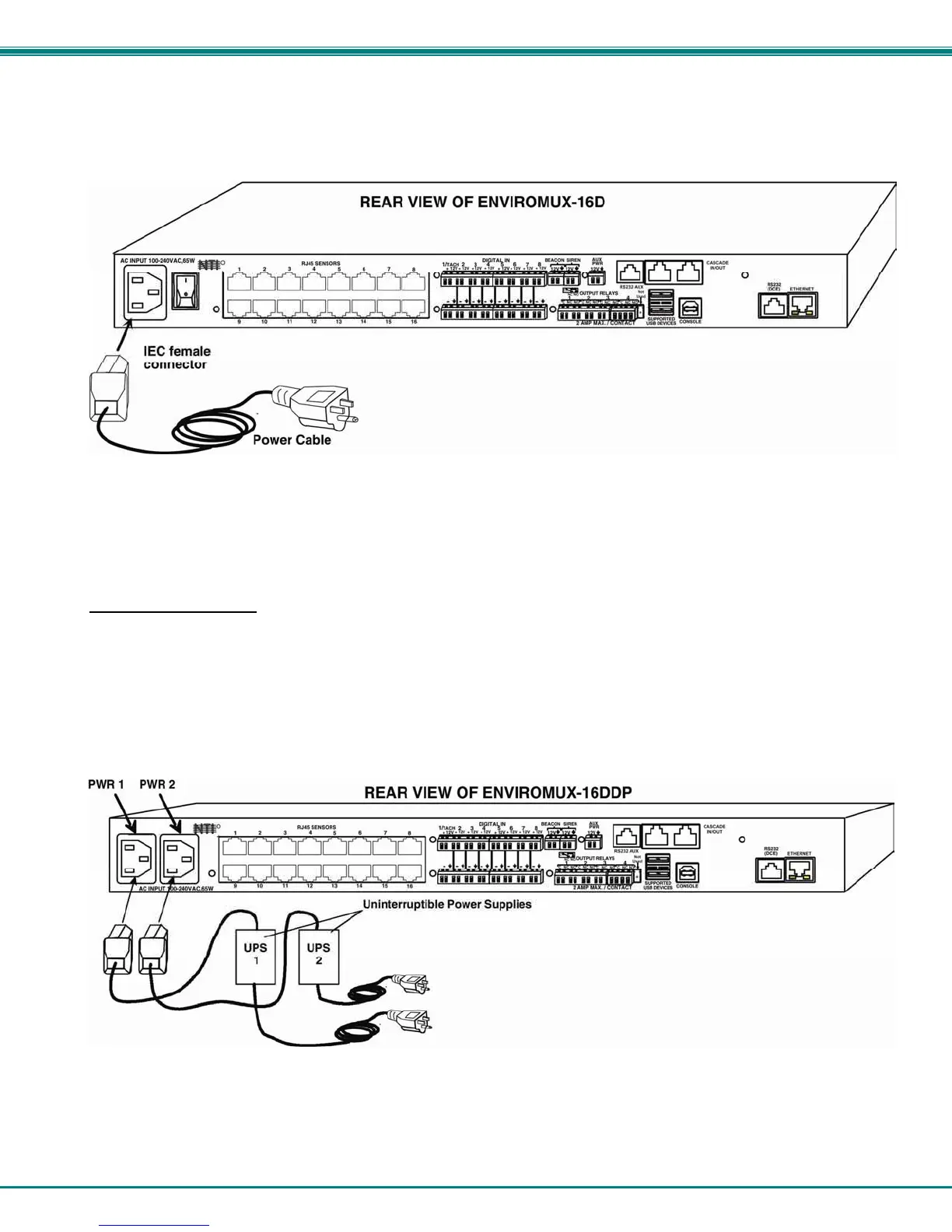

Figure 16- Connect the power cord
Dual Power Option
The ENVIROMUX-16DDP has two IEC connectors on the rear, for connection to two separate power sources. If the power
source connected to “PWR 1” fails, the ENVIROMUX will automatically and without interruption switch over to the power source
connected to “PWR 2” before switching to the battery backup (page 96).
Note: If only one power source is used, it should be connected to “PWR 1”.
Note: The power ON/OFF switch is located on the front panel of ENVIROMUX when two IEC connectors are present.
Figure 17- Power connections for ENVIROMUX with Dual Power Option
