NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
56
USB LCD Display
Select Screen Select what should be displayed on the ENVIROMUX-LCD7U when plugged into a USB port on
the ENVIROMUX (see Figure 61)
An ENVIROMUX-LCD7U USB LCD monitor can be connected to any of the USB Type A ports
(page 97). The ENVIROMUX will automatically sense the monitor and send the selected
images to the screen.
RJ45 Connector When RJ45 Connector is selected for display on the LCD monitor, choose between RJ45
connector 1 or 2 as the sensor status page to be viewed on the monitor.
Auxiliary Serial Port Configuration (“RS232 AUX”)
Use Aux Port for Choose between Remote Serial Port or GSM Modem.
Configure as a Remote Serial Port when the port will be used to control a remote serial device.
Baud Rate When “Remote Serial Port” is selected, set the Baud Rate to a speed compatible with the
connected serial device. Speeds range from 1200bps through 115200bps.
When GSM Modem is connected, no configuration is necessary here..
Format When “Remote Serial Port” is selected, enter the number of bits, parity, and number of stop bits
for the remote serial device to be connected.
When GSM Modem is connected, no configuration is necessary here..

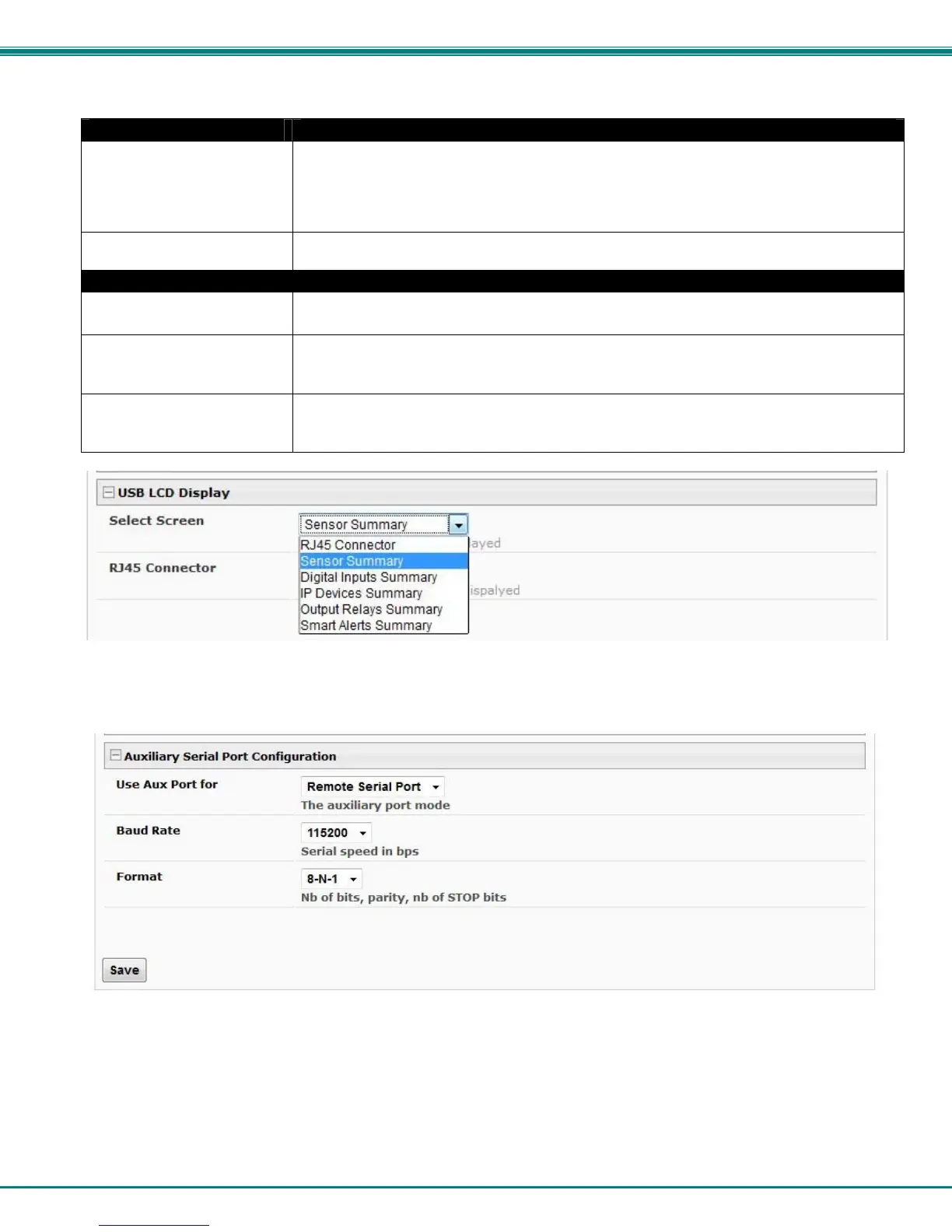

Figure 61- Select what will be displayed on connected USB LCD Monitor
Figure 62- Configure the purpose of the "RS232 AUX" port
