NTI ENTERPRISE ENVIRONMENT MONITORING SYSTEM
21
The ENVIROMUX-5D-48V is available with connections for a 18~72VDC (24 or 48VDC nominal) user-supplied power supply.
This is typically used when the ENVIROMUX is installed in a Telecom environment. The ENVIROMUX-5D-48V will accept a DC
power source with positive or negative polarity. A removable 3-pole screw terminal is provided for easy connection. The image
below shows an ENVIROMUX-5D-48VDP, which has dual 18-72VDC power connections for a dual power supply option.
For your convenience, the power jacks for connecting and AC adapter are also provided, and may be used as well. These jacks
will accept 9-12VDC (9VDC 3A power supply may be purchased separately-order PWR-SPLY-9V3A). All power connections can
be used simultaneously without damage to the ENVIROMUX.

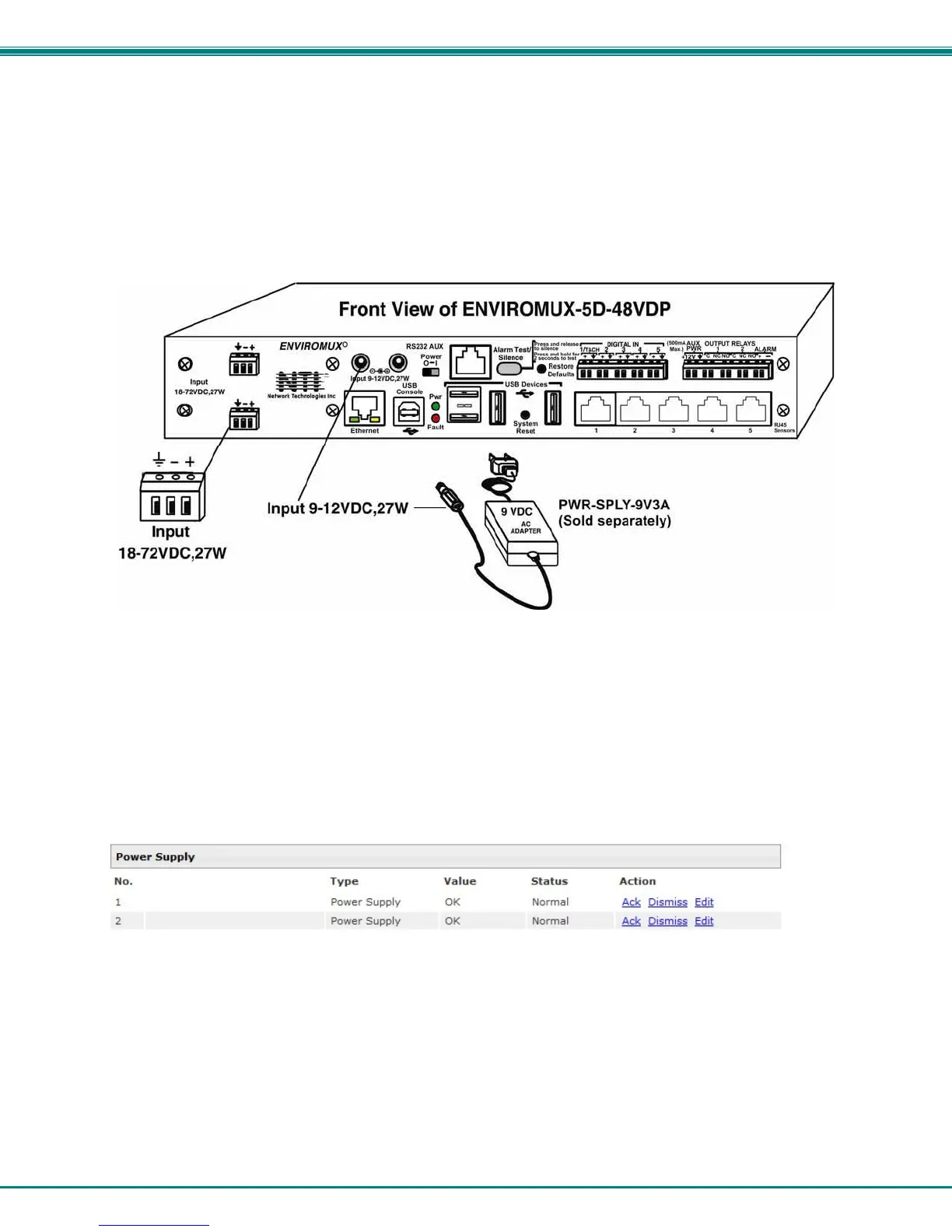

Figure 20- Power connections on ENVIROMUX-5D-48VDP
Note: The power supply monitor on the sensor summary page will only display the status of the 18-72VDC connections.
The 9-12VDC power connections will be ignored on the ENVIROMUX-5D-48V(DP) models.
Figure 21- Power Supply sensors-Summary Page
