Figure 100: Coils Color Screen
Coil Length Calculator
The controller has a built in calculator to estimate the length of a coil based on the
dimensions of the coil. From the Coils screen, press Length Calculator button.

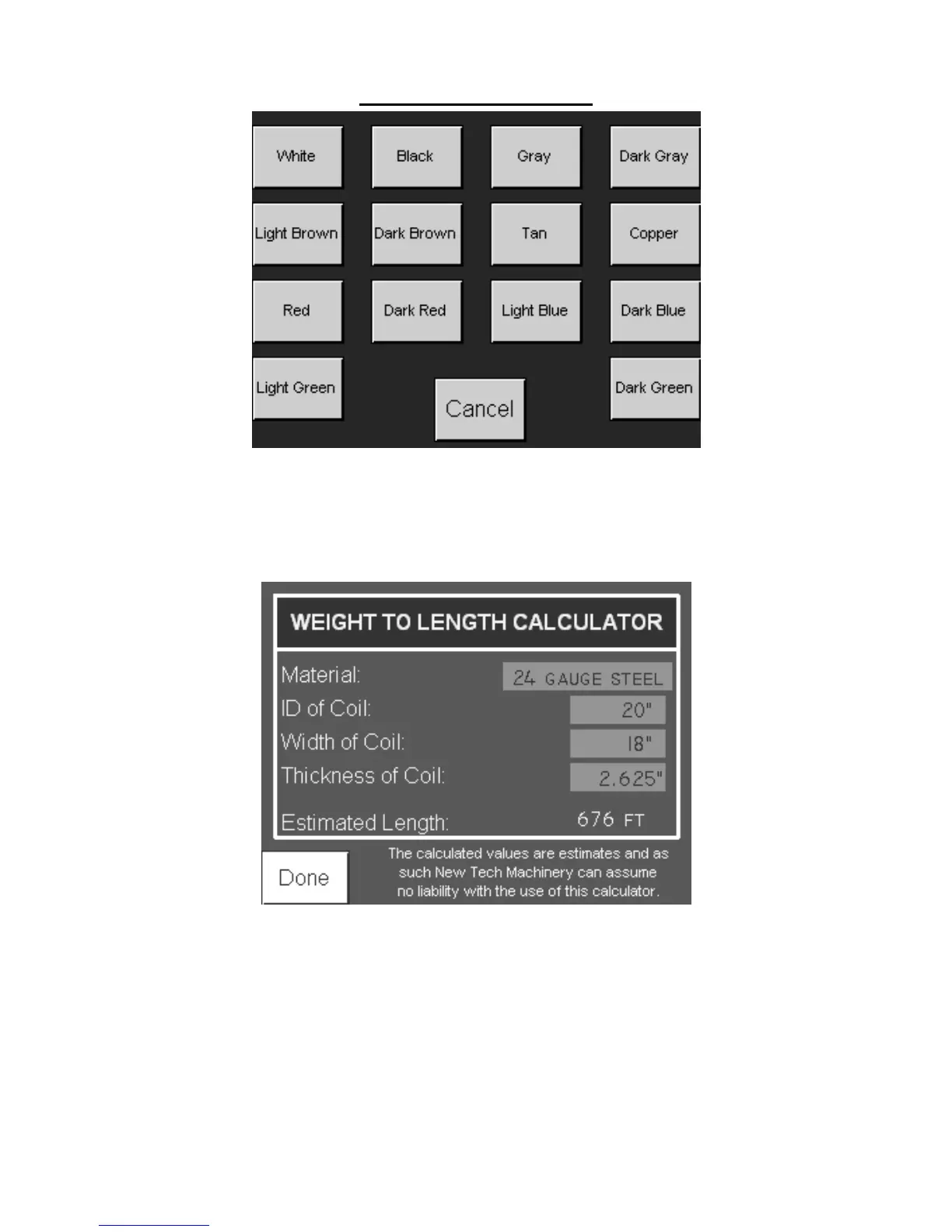

Figure 101: Length Calculator Screen
Press the Select Material button to select the thickness and type of material.
To Next Page
