CHAPTER 15
PROFILE CHANGEOVER PROCEDURE
59
17. Start the machine and use the Jog button on the Manual Control Box or Computer
to jog the material through the machine 6 to 8 inches at a time until it exits the last
forming stations, and is about 1” from the Bead Roller Assembly (Figure 54).

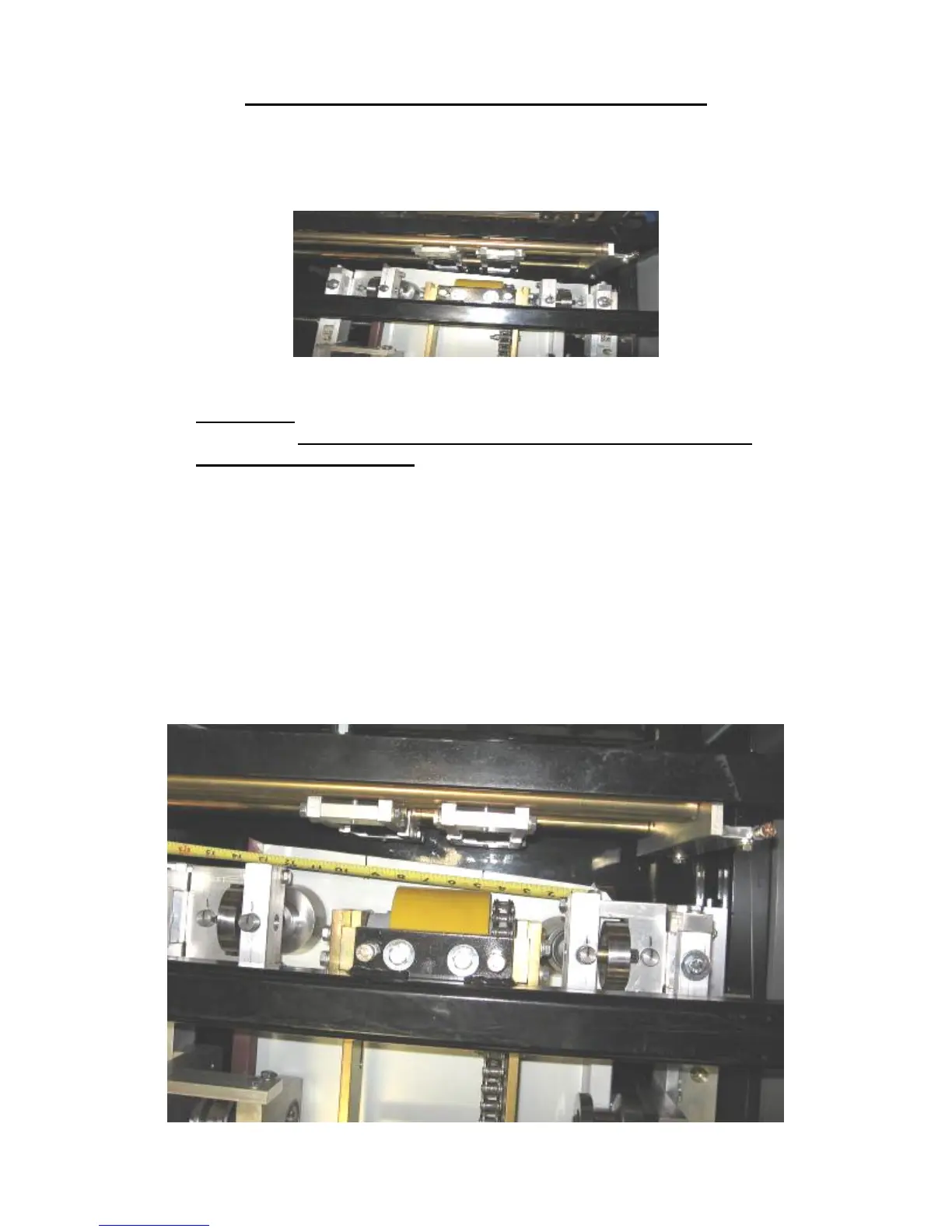

Figure 54: Jogging Material thru Machine
CAUTION: Always make sure your machine is shut down prior to making any
adjustments. DO NOT reach through the opening of the shear while the
machine is running. EVER! To do so could result in serious injury.
IF YOU NEED BEADS IN THE PANEL, GO TO STEP 18
IF YOU DO NOT NEED BEADS IN THE PANEL, GO TO STEP 21.
18. If you require beads in the panel, determine the spacing needed. For Example: a
12” wide panel with 2 beads centered on the panel would give you 3 equal spaces
or 12” divided by 3, which equals 4” from center to center of each bead. Hook the
end of your tape measure on the outside bottom corner of the female leg. Use a
magic marker or grease pencil to mark the 4” and 8” locations on the panel. You
now have 3 equal spaces. (Figure 55)
Figure 55: Spacing Bead Rollers
