NTM SSQ MultiPro - Figure 31: Expandable Arbor Setup

CHAPTER 14
WIDTH CHANGE PROCEDURE
42
4. Load material onto the Expandable Arbor and align it to the correct position
using the chart on (Figure 31).
Note: Also see REEL STANDS, REELS AND EXPANDABLE ARBORS for
more information.

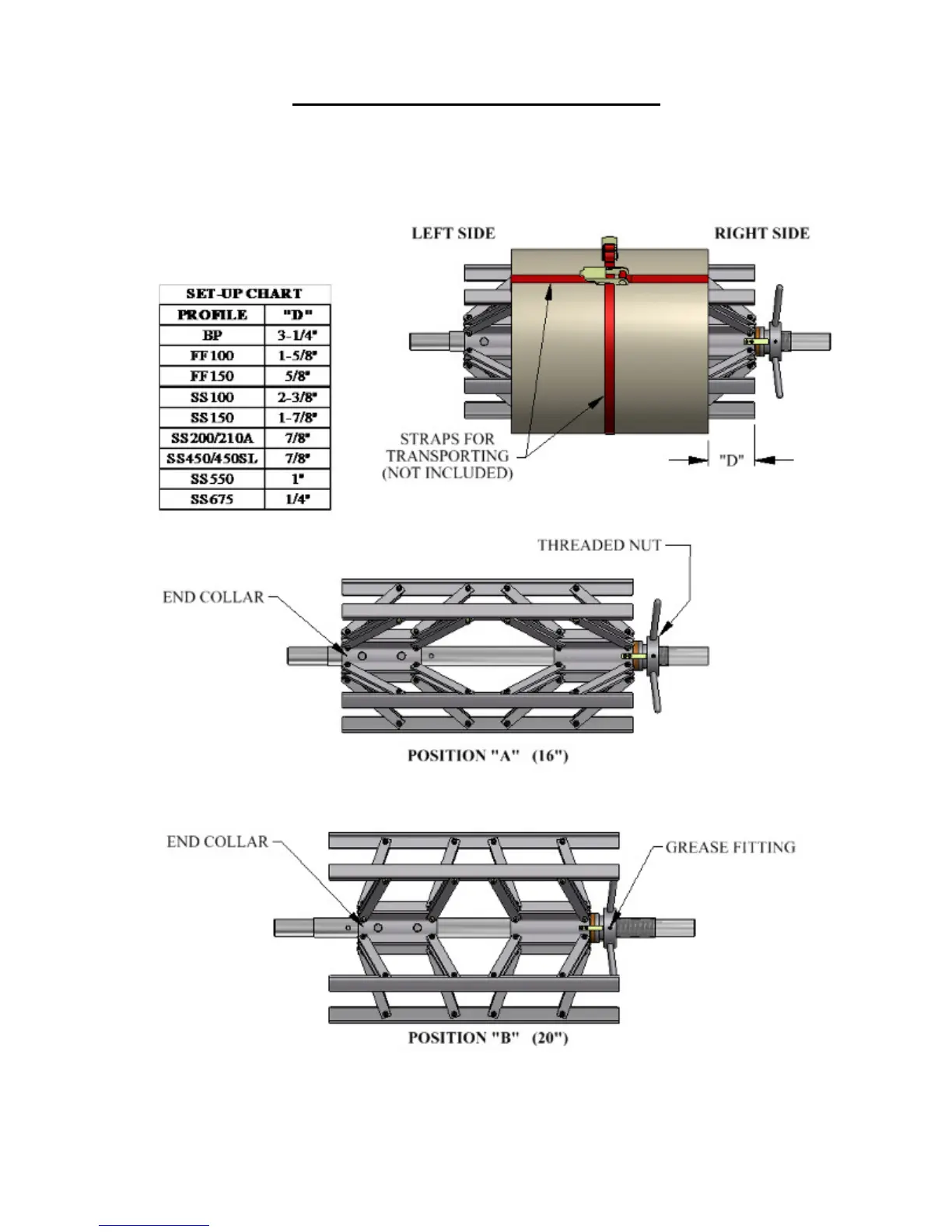

Figure 31: Expandable Arbor Setup
