CHAPTER 15
PROFILE CHANGEOVER PROCEDURE
50

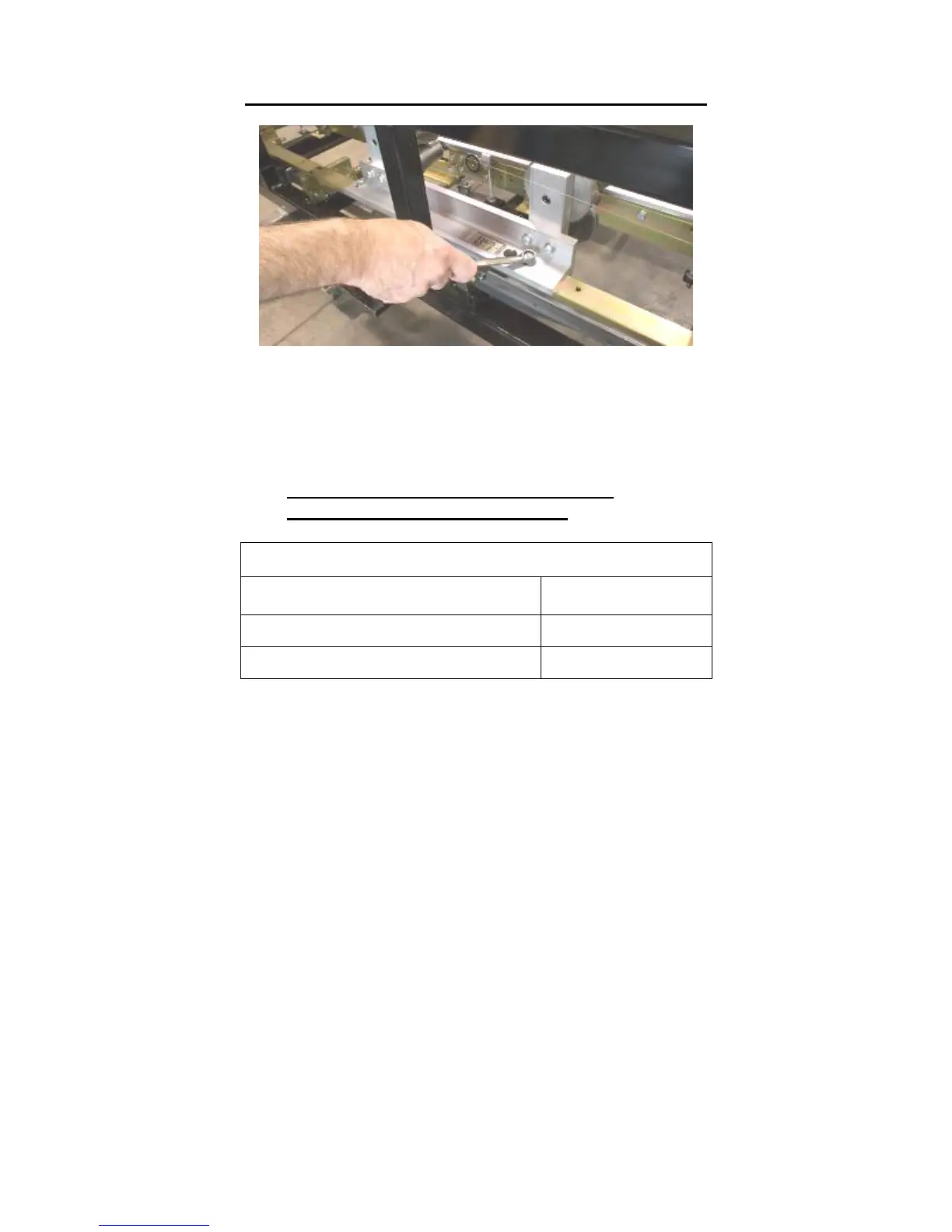

Figure 38: Removing Tooling Rails
3. Refer to the SSQ Slide Block chart (Figure 39) and find the profile you will be
installing into the machine. It will tell you if the Right Side Fixed Mount Rail #1
needs to be in the Inboard position or Outboard position (Figure 40).
IF THE RAIL IS NOT IN THE CORRECT POSITION, GO TO STEP 4.
IF THE RAIL IS IN THE CORRECT POSITION GO TO STEP 6.
SSQ SLIDE BLOCK CHART
PROFILE
RIGHT SIDE FIXED
MOUNT RAIL #1
BP, FF100, SS100, SS150 INBOARD
FF150, SS200, SS450, SS550, SS675 OUTBOARD
Figure 39: Block Chart
