CHAPTER 13
ENTRY DRUM ASSEMBLY
40
ENTRY DRUM ASSEMBLY
The Entry Drum Assembly is necessary when feeding coil off of the optional DR1/ Dual
Overhead Reel Stand. It allows you to route the material around the drums to get the
painted side of the coil on the top as it enters the machine. Without this assembly, you
could only feed coil from a remote arbor and stand lined up behind the machine. The
Entry Drums need to be adjusted whenever a width change is made.
To adjust the entry drums:
1. Using a 3/16” allen wrench, loosen the four Shaft Collars “E”, on either side of
Left Entry Drum and Center Entry Drum. (Figure 29)
2. Slide the Left Entry Drum over until it is lined up with left edge of the new coil
and align the Center Entry Drum equally spaced from the Left and Right Entry
Drums.
3. Slide the four Shaft Collars “E” against the sides of the drums and lock them into
place.
4. If you are making a Roller System Change, you may have to move all three drums
using the same procedure described above.

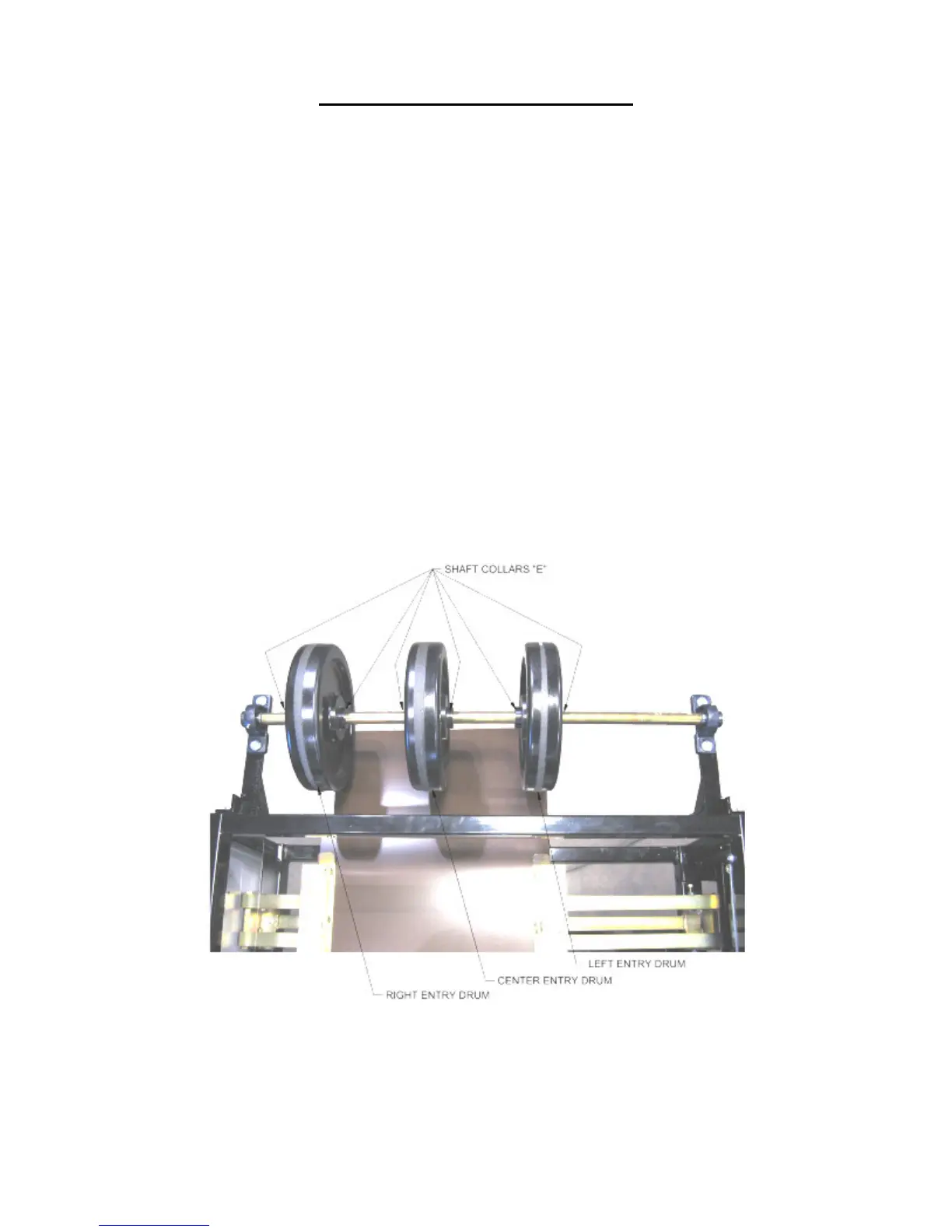

Figure 29: Entry Drum
