APPENDIX A
PLC CONTROLLER
A - 12

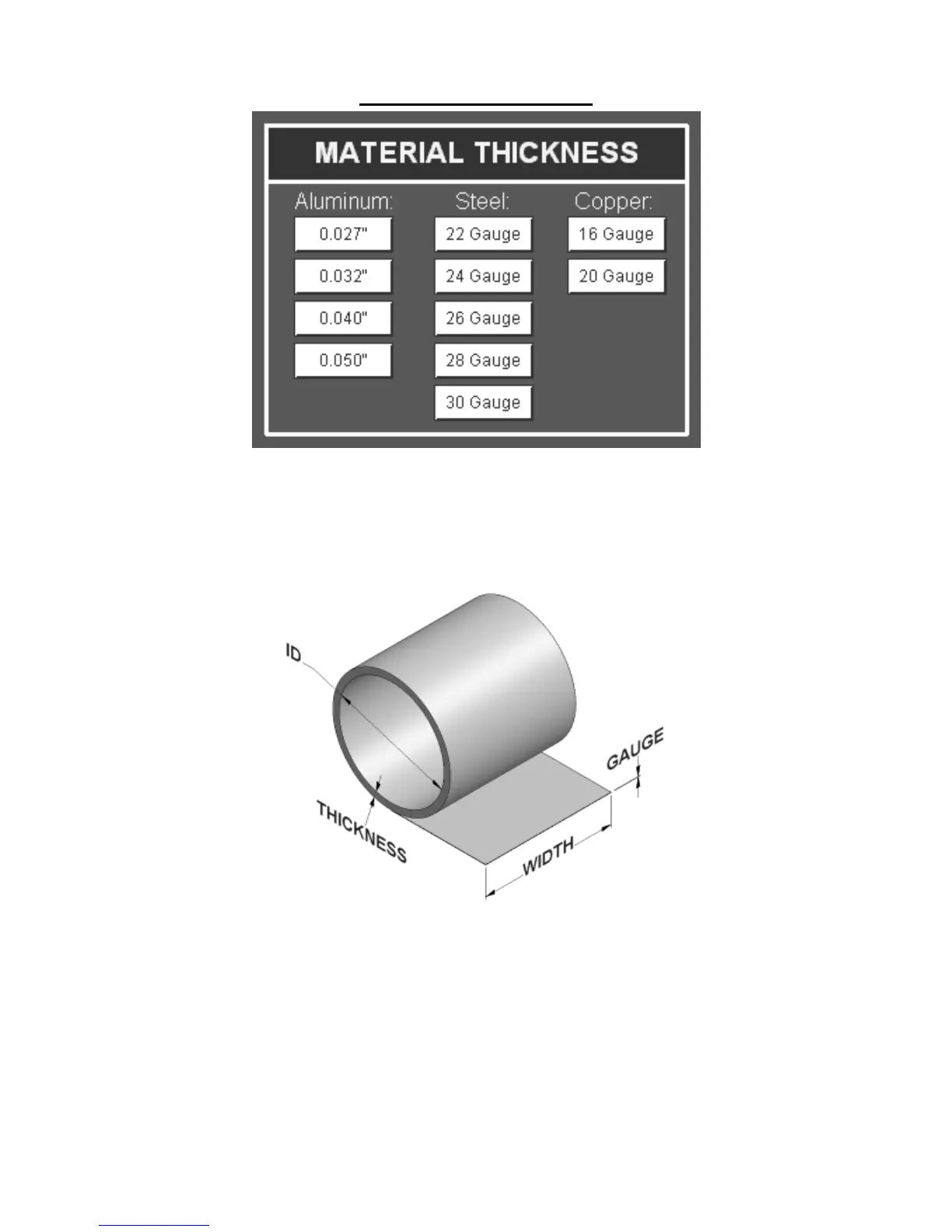

Figure 102: Material and Thickness Screen
Then enter in the Inside Diameter of the Coil, Width of the coil and thickness of the coil.
The thickness of the coil is the difference between the Inside Diameter (ID) and the
Outside Diameter (OD). When all the fields are populated, the calculator estimates the
length of the coil. Press the Done button to return to the Coils screen.
Figure 103: Coil Dimensions
