NTM SSQ MultiPro - Figure 52: Marker Plate Notch and Pin; Figure 53: Preparing Coil for Loading

CHAPTER 15
PROFILE CHANGEOVER PROCEDURE
58

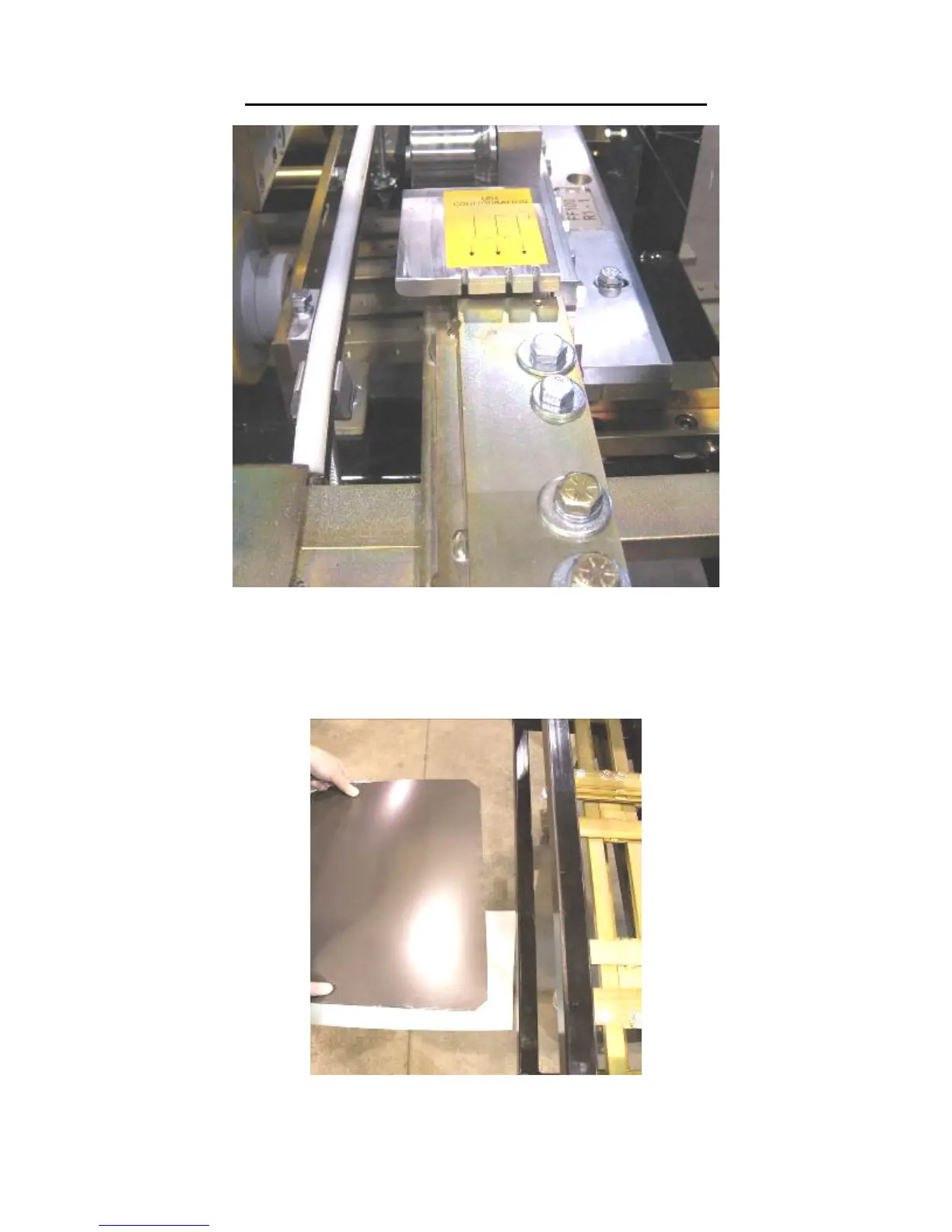

Figure 52: Marker Plate Notch and Pin
15. Load the reeled coil onto the machine using a fork lift or other rated lifting device.
16. Cut a 1” triangle of material off the 2 leading corners of the coil and feed it into
the entry guides.
Figure 53: Preparing Coil for Loading
