REV
ECR NO.
DATE RELEASED BY
MATERIAL LENGTH FINISH
NEW TECH MACHINERY
CORP.
DRAWN BY
DATE
CHECK BY
DATE
TOLERANCES PART NAME
SHEET
PART NUMBER
REVISION
1

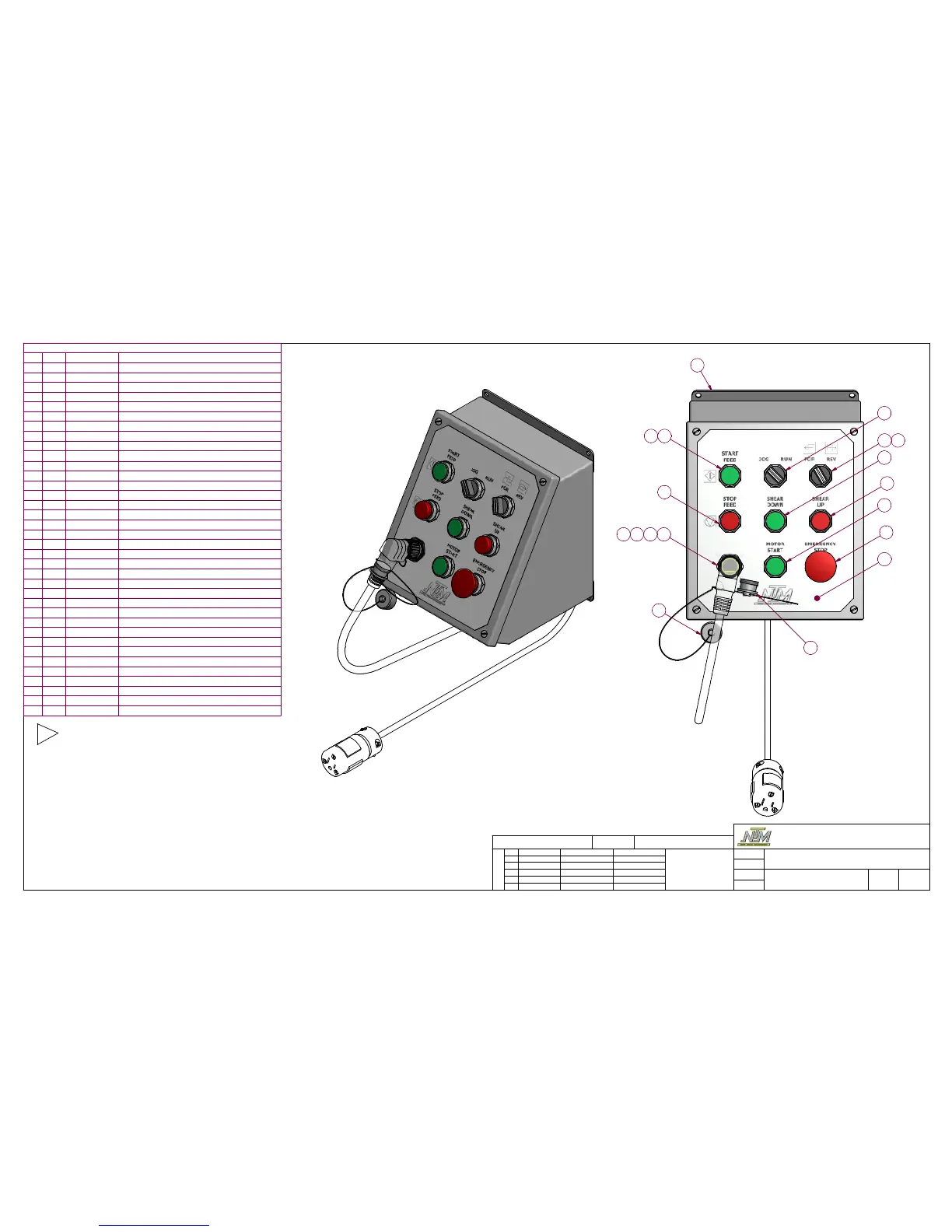

CONTROL BOX ASSEMBLY
PLC-381-000
1
5
OF
.XX =
`
.01
.XXX =
`
.005
FRACTION =
`
1/32"
ANGLE =
`
1/2
~
BT
01-26-2011
AJB
10/20/2011
N/A
NONE
0
R-1757
UNK
UNK
1 R-1800 10/20/2011
AJB
SEE BOM
PARTS LIST
ITEM QTY PART NUMBER TITLE
1 34
ELC-100-006 TERMINAL BLOCK, 10A
2 3 ELC-100-007 DIN RAIL STOP (NOT SHOWN)
3 12
ELC-100-008 TERMINAL BLOCK JUMPER (NOT SHOWN)
4
1 ELC-100-017 FEMALE CLOSURE CAP
5
1 ELC-100-018 MALE CLOSURE CAP
6 1
ELC-100-021 ENCLOSURE
7 6 ELC-100-025 RECEPTACLE, 4 PIN MALE x.5M
8 1 ELC-100-026 RECEPTACLE, 5 PIN MALE x.5M
9 1 ELC-300-101 FUSEHOLDER BUS HKP
10 3 ELC-300-103 PUSH BUTTON, GREEN
11 1
ELC-300-104 SELECTOR SWITCH, W/1 N.O.
12 1 ELC-300-105 FUSE, 10A, 250V, TIME DELAY
13 2 ELC-300-107 PUSH BUTTON, RAISED RED
14 1 ELC-300-109 SELECTOR SWITCH, 2 POS,1 N.O. 1 N.C.
15 1 ELC-400-017 IDEC #HW-C10 N/O CONTACT BLOCK
16 1
ELC-400-018 IDEC #HW-C01 N/C CONTACT BLOCK
17 1 ELC-400-045 HOLE SEAL, 1/2" KO
18 1 ELC-400-046 LEXAN OVERLAY, PANEL
19 1 ELC-400-061 BUTTON, MUSHROOM, PUSH/PULL
20
5
ELC-400-079 RING TERMINAL, 3/16" EYE, 14-16GA (NOT SHOWN)
21 3
ELC-400-123 2 POLE RELAY BASE
22 3 ELC-400-125 2 POLE RELAY, 12VDC
23 2 ELC-425-020 STRAIN RELIEF, 1/2" NPT
24 16 FAS-NUF-170 JAM NUT, #10-32
25 8 FAS-SPN-340 SCREW, PAN HEAD, 10-32 x 3/4" , SLOTTED
26 4
FAS-SRM-201 PHILLIPS PAN HEAD SCREW, 10-32 x 3/8"
27 8
FAS-WRF-244 10 RUBBER WASHER
28 12 FAS-WSF-344 WASHER, FLAT, #10 SAE
29 20 FAS-WSL-404 WASHER, LOCK, SPLIT, #10
30 1 MHW-100-012 7/8 ID X 1 1/8 OD X 1/8 T GASKET
31 1 PLC-100-006 DIN RAIL, 8" LONG
32 1
PLC-100-010 TURCK RECEPTACLE EXTENSION
33 2 PLC-381-002 TERMINAL BLOCK MOUNTING PLATE
34 1 PLC-390-000 PUSH BUTTON BOX WIRE KIT (NOT SHOWN)
35 1 SHM-400-132 SHIM, 1" ID x 1½" OD x .031
36 1 SSR-381-072 DIN RAIL, 5.50 LONG
19
6
14 16
11
10
13
10
13
1015
18
33323035
4
5
1
ADDED SHM-400-132 TO INSIDE OF 16-PIN RECEPTACLE ON FRONT
