Using the Océ TDS400 to Scan-to-file 87

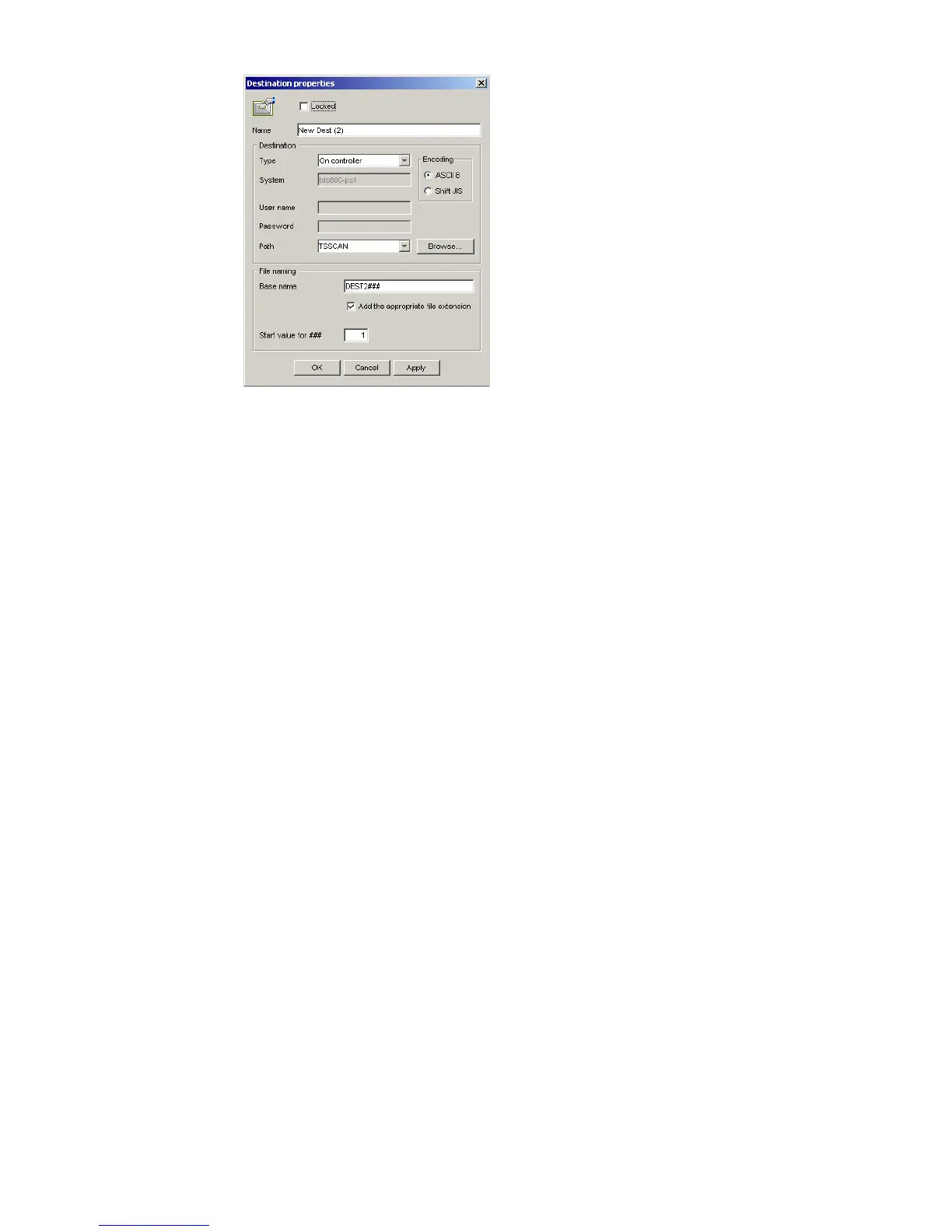

[20] ‘Destination properties’ window
3 Enter a logical name for the destination in the ‘Name’ text box.
This logical name also appears on the scanner panel S.
4 Select the ‘On the controller’ type from the ‘Type’ drop-down list box.
5 Enter a path of the target folder in the ‘Path’ text box. You can also click the
‘Browse’ button to select the path.
Note: This is only possible if you select ‘On the controller’ as ‘Type’ (see
step 4).
6 Click Ok to accept the destination properties.
▼ Create a network destination with SMB
1
Create a shared folder on a workstation. For example c:\Scan
2 On the Océ Scan Manager Open the ‘File’ menu and select ‘New’ or click on
the ‘New’ button on the toolbar (see Figure 19).
The Destination Properties dialog box appears (see Figure 20)
3 Select SMB from the ‘Type’ drop-down list box.
4 Enter the system name of the workstation where you created the shared folder.
Note: Find the system name of the workstation on the control panel of the
workstation (Control panel - Network - Identification - System name)
5 Enter the path name. This is the name of the shared folder on your workstation.
For Windows NT® , Windows® 2000 and XP, use the DOS name of the shared
folder.
For Windows 95/98® use the folder name. This is case sensitive.
Note: You can not Browse. Instead of entering the path name by hand, you
can use the drop-down list box to select a shared folder available on the
selected system.
6 If you have set a username and a password for the shared folder on the
workstation, then enter the username and the password in the required fields.
