Oceanic GEO - SET FREE DEPTH ALARM 1 (FDA1) DISPLAY

113
SET FREE DEPTH ALARM 1 (FDA1) DISPLAY, information
provided includes (Fig. 104) -
> Graphic FDA1.
> Depth Alarm value, flashing if ON is displayed, with MAX
and FT (or M) icons.
> Set Point ON or OFF, flashing.
• Pressing/releasing the S button momentarily (< 2 seconds)
will toggle the Set Point between ON and OFF.
• Pressing/releasing the A button momentarily (< 2 seconds)
will accept the ON/OFF settings.
> If OFF is selected/accepted, Set FDA 2 and 3 will be
bypassed and the display will revert to the FREE SURF
MAIN screen.
> If ON is selected/accepted, the Depth value displayed will
flash.
• Pressing/releasing the S button momentarily and
repeatedly (< 2 seconds each time) will step through the
Set Points from 30 to 330 FT (10 to 100 M) in increments
of 10 FT (1 M) at a rate of 1 Set Point per press of the
button.
• Pressing and holding the S button will scroll through the
Set Points at a rate of 4 Set Points per second until
released.
• Pressing the A button momentarily (< 2 sec) will accept the
Depth Setting and advance to SET FDA 2.
The Set Point for
the NORM/
GAUG Depth
Alarm does not
affect the FREE
Depth Alarms.

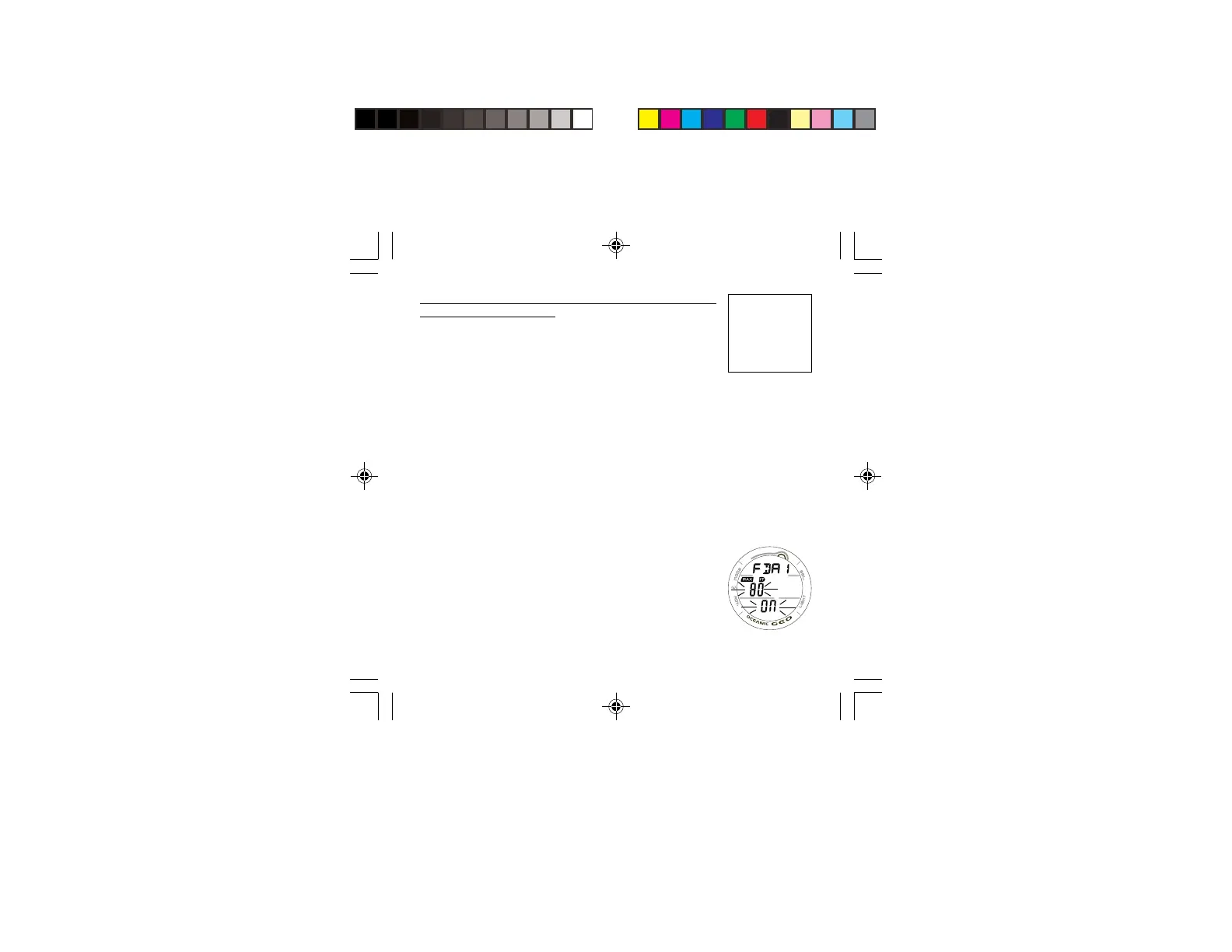

Fig. 104 - SET FREE
DEPTH ALARM 1
