Oceanic GEO - SET FREE DEPTH ALARM 2 (FDA2) DISPLAY

114
• Depressing the M button for 2 seconds, or if no button is
pressed during a period of 2 minutes, the display will
revert the FREE SURF MAIN screen.
SET FREE DEPTH ALARM 2 (FDA2) DISPLAY, information
provided includes (Fig. 105) -
> Graphic FDA2.
> Depth alarm value, flashing if ON is displayed, with MAX
and FT (or M) icons.
> Set Point ON or OFF, flashing.
• Pressing/releasing the S button momentarily (< 2 seconds)
will toggle the Set Point between ON and OFF.
• Pressing/releasing the A button momentarily (< 2 seconds)
will accept the ON/OFF settings.
> If OFF is selected/accepted, Set FDA 3 will be bypassed
and the display will revert to the FREE SURF MAIN screen.
> If ON is selected/accepted, the Depth value displayed will
flash.
• Pressing/releasing the S button momentarily and
repeatedly (< 2 seconds each time) will step through the
Set Points from 40 to 330 FT (11 to 100 M) in increments
of 10 FT (1 M) at a rate of 1 Set Point per press of the
button.
The range of
available FDA 2
Set Points begins
at the next FT/M
value greater
than the FDA 1
Alarm Set Point.

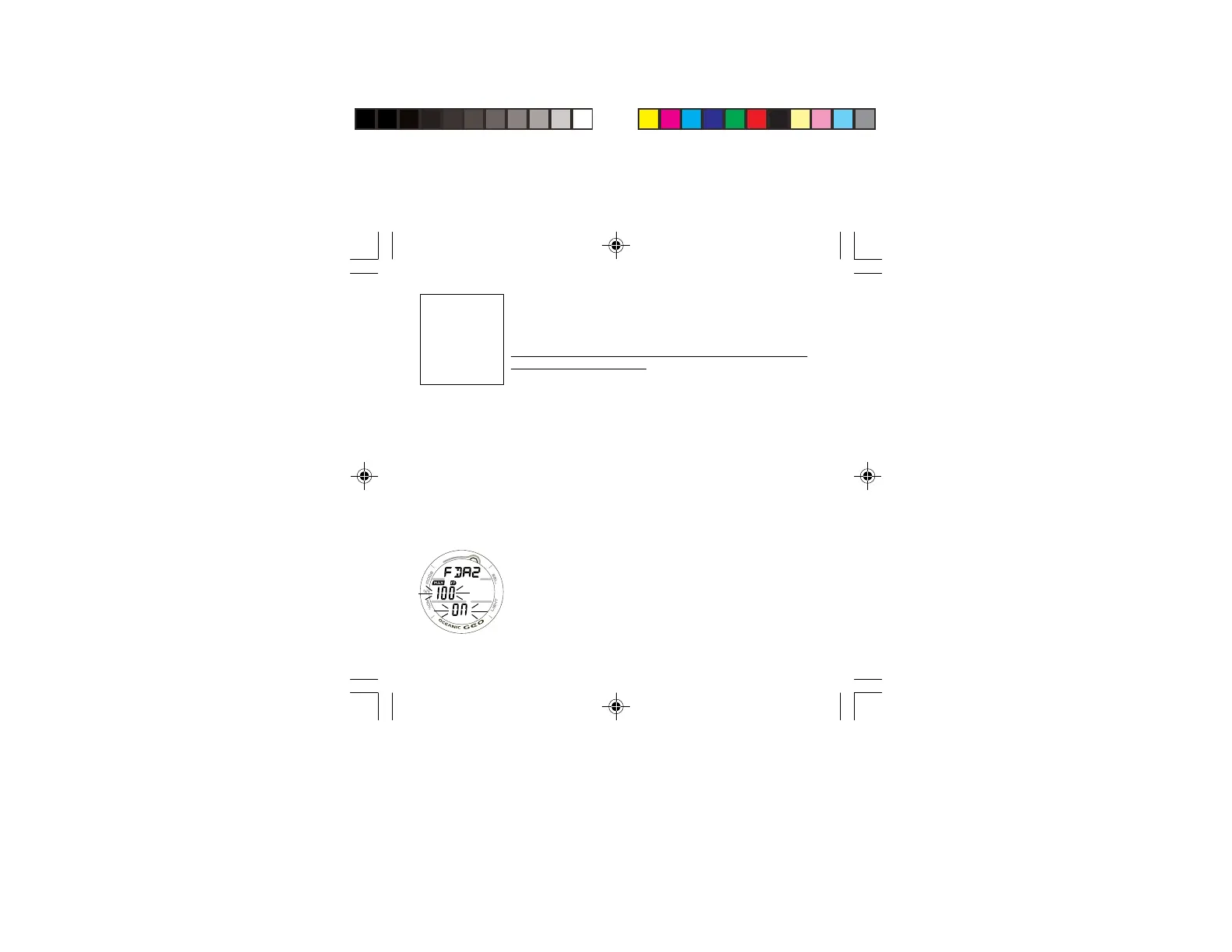

Fig. 105 - SET FREE
DEPTH ALARM 2
