• Pressing and holding the S button will scroll through the
Set Points at a rate of 4 Set Points per second until
released.
• Pressing the A button momentarily (< 2 sec) will accept the
Depth Setting and advance to SET FDA 3.
• Depressing the M button for 2 seconds, or if no button is
pressed during a period of 2 minutes, the display will
revert the FREE SURF MAIN screen.
SET FREE DEPTH ALARM 3 (FDA3) DISPLAY, information
provided includes (Fig. 106) -
> Graphic FDA3.
> Depth alarm value, flashing if ON is displayed, with MAX
and FT (or M) icons.
> Set Point ON or OFF, flashing.
• Pressing/releasing the S button momentarily (< 2 seconds)
will toggle the Set Point between ON and OFF.
• Pressing/releasing the A button momentarily (< 2 seconds)
will accept the ON/OFF settings.
> If OFF is selected/accepted, the display will revert to the
FREE SURF MAIN screen.
> If ON is selected/accepted, the Depth value displayed will
flash.
The range of
available FDA 3
Set Points begins
at the next FT/M
value greater
than the FDA 2
Alarm Set Point.

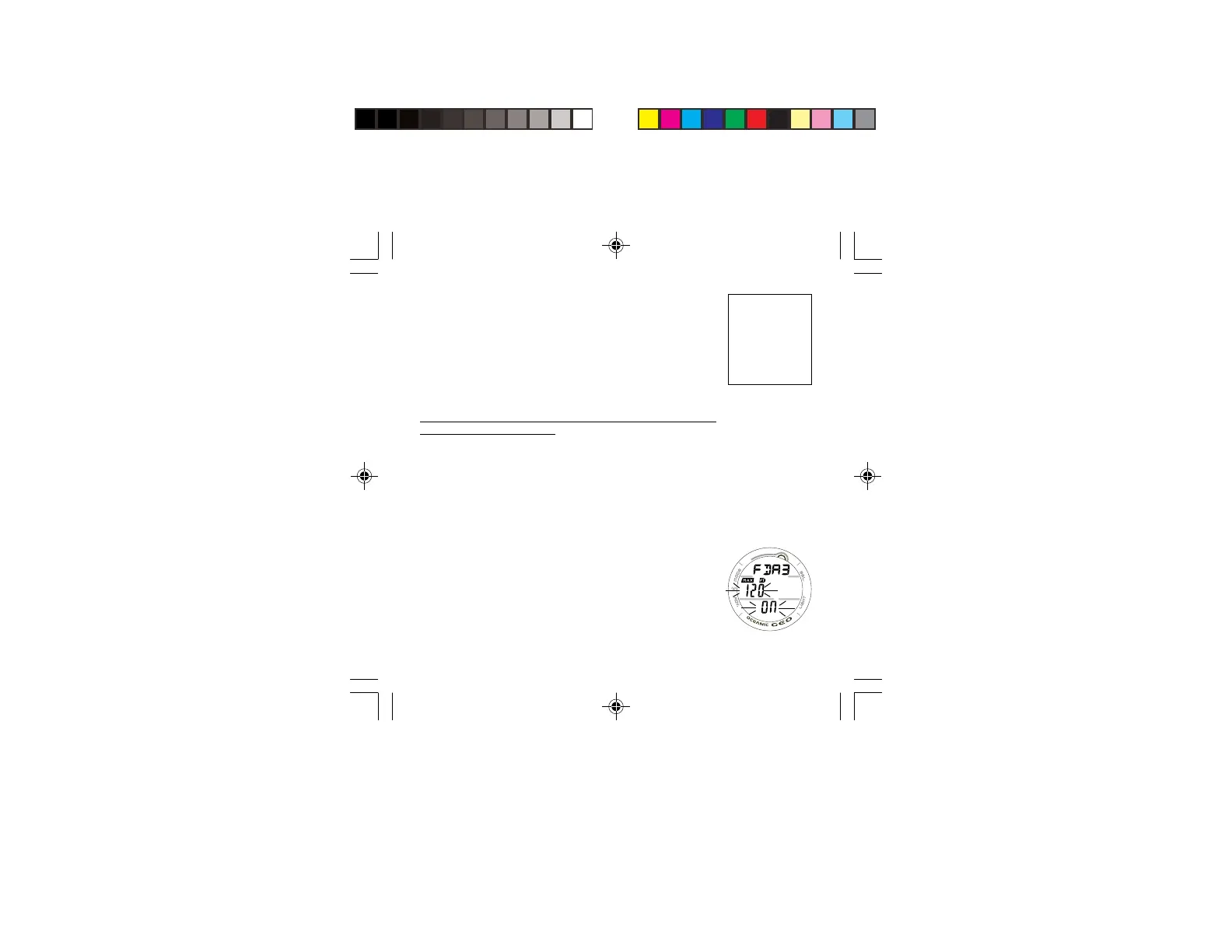

Fig. 106 - SET FREE
DEPTH ALARM 3
