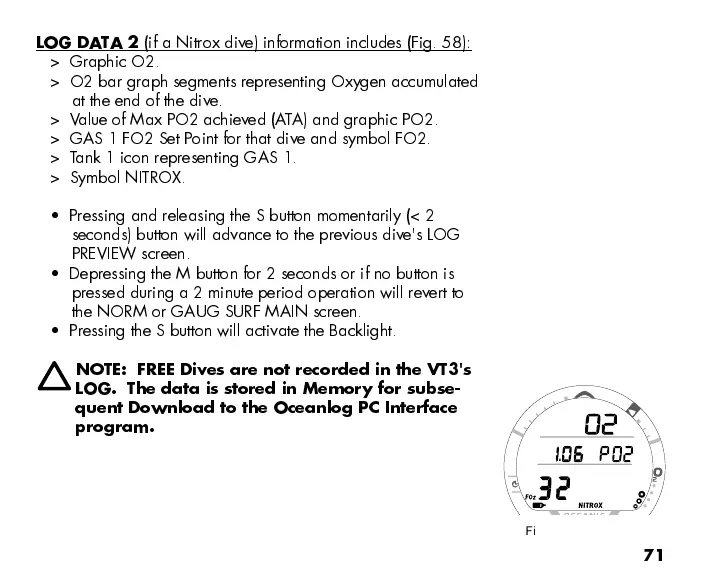

Fig. 58 - LOG DATA 2
LOG DATA 2
(if a Nitrox dive) information includes (Fig. 58):
> Graphic O2.
> O2 bar graph segments representing Oxygen accumulated
at the end of the dive.
> Value of Max PO2 achieved (ATA) and graphic PO2.
> GAS 1 FO2 Set Point for that dive and symbol FO2.
> Tank 1 icon representing GAS 1.
> Symbol NITROX.
Pressing and releasing the S button momentarily (< 2
seconds) button will advance to the previous dive's LOG
PREVIEW screen.
Depressing the M button for 2 seconds or if no button is
pressed during a 2 minute period operation will revert to
the NORM or GAUG SURF MAIN screen.
Pressing the S button will activate the Backlight.
NOTE: FREE Dives are not recorded in the VT3's
LOG. The data is stored in Memory for subse-
quent Download to the Oceanlog PC Interface
program.
