Operational Information
moving the instrument, return the motor lock switch to the
Down (Operate)
position. The following label is located next to
the motor lock switch:
Use a minimum of two people when moving the Odyssey
®
System,
as it weighs about 33 kg (72 pounds). Lift under the metal enclosure
on each side of the unit, and keep the unit as near vertical as
possible. Gently set the Odyssey Imager at its new position.
The instrument can be leveled after it is moved, if necessary. The
instrument does not need to be level for proper operation; it may be
helpful, however, if the laboratory bench is not level, to prevent
moistened membranes from sliding on the scanning surface.
Each of the 4 plastic feet on the bottom of the instrument case has a
threaded metal insert that can be turned in either direction to adjust
its height. Adjust the feet as necessary, until the instrument is level.
TRANSPORT
MOTOR LOCK
OPERATE
10BASE-T or
100BASE-TX
Figure 1-4.
Instrument base
Metal insert
Plastic foot

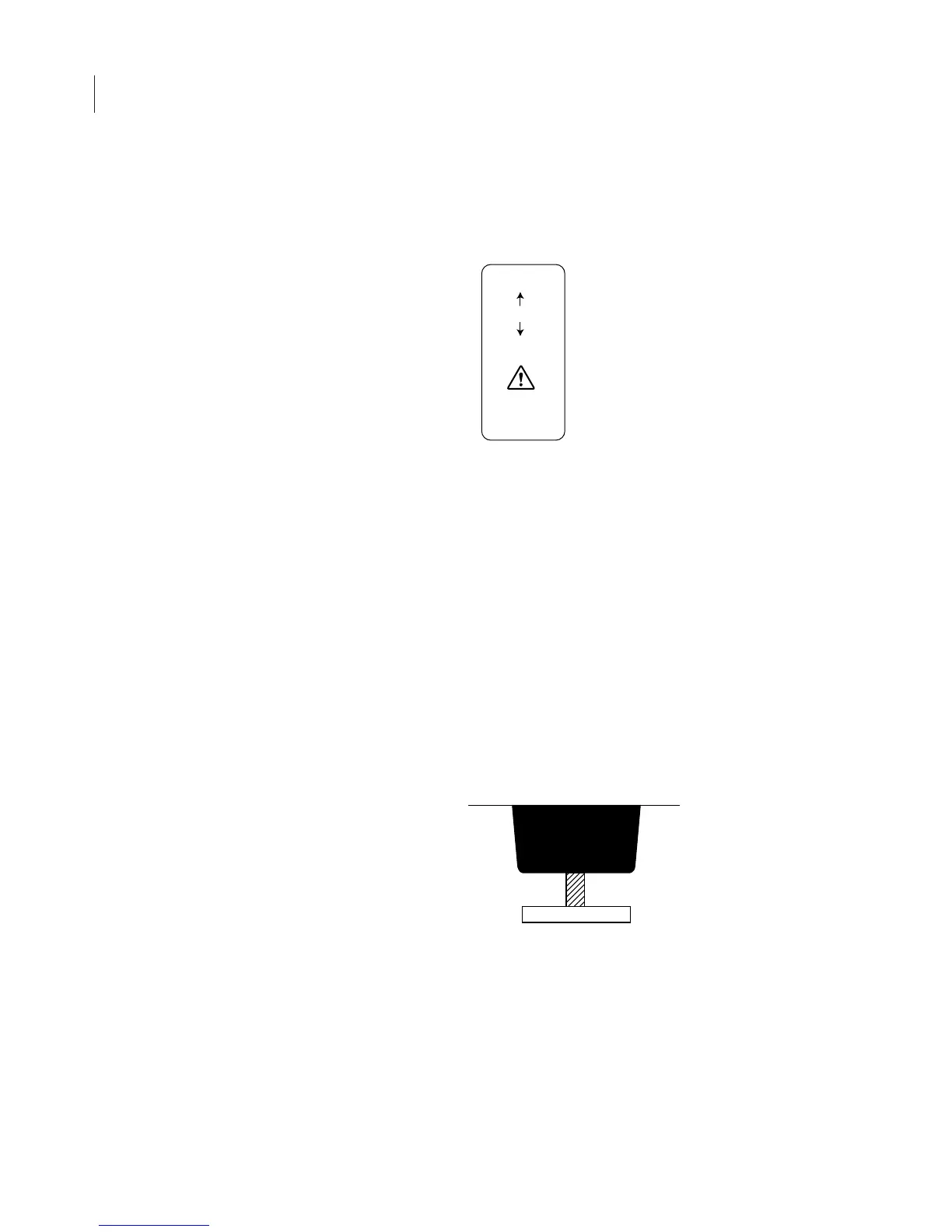

Figure 1-5. Turn the metal inserts on the feet to adjust the height.
