4.REPLACEMENT OF PARTS

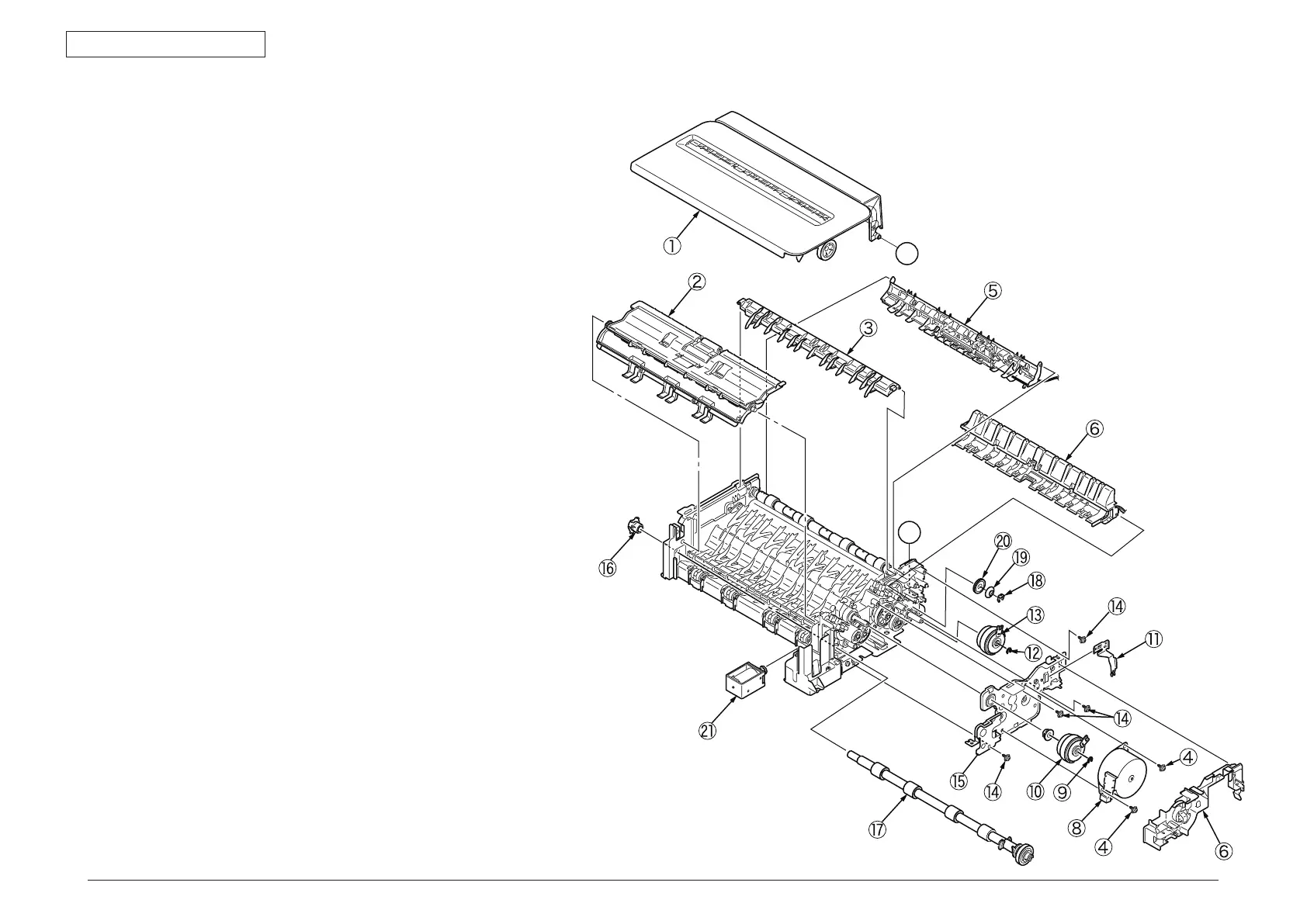

4.2.7.6 Cover-assy-top-ADF / Guide-assy / Roller / Motor / Clutch
/ Solenoid
(1) Remove the cover-assy-top-ADF
①
.
(2) Remove the guide-assy-A
②
.
(3
) Remove the guide-B
③
.
(4
) Remove the guide-cable
④
.
(5
) Remove the guide-assy-C
⑤
.
(6
) Remove the guide-assy-D
⑥
.
(7
) Remove the two screws (silver)
⑦
and remove the motor-pulse-belt
⑧
.
(8
) Remove the E-type retaining ring
⑨
and remove the clutch
⑩
.
(9
) Remove the plate-FG-S
⑪ .
(1
0) Remove the E-type retaining ring
⑫
and remove the clutch
⑬
.
(1
1) Remove the four screws (black)
⑭
and remove the plate-motor-ADF
⑮
.
(1
2) Remove the bearing-shaft
⑯
and remove the roller-assy-eject-ADF
⑰
.
(1
3) Remove the retainer-4
⑱
, spring
⑲
and washer-A
⑳
.
(1
4) Remove the solenoid
㉑
.
To Next Page
