44473001TH Rev.1
110 /
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

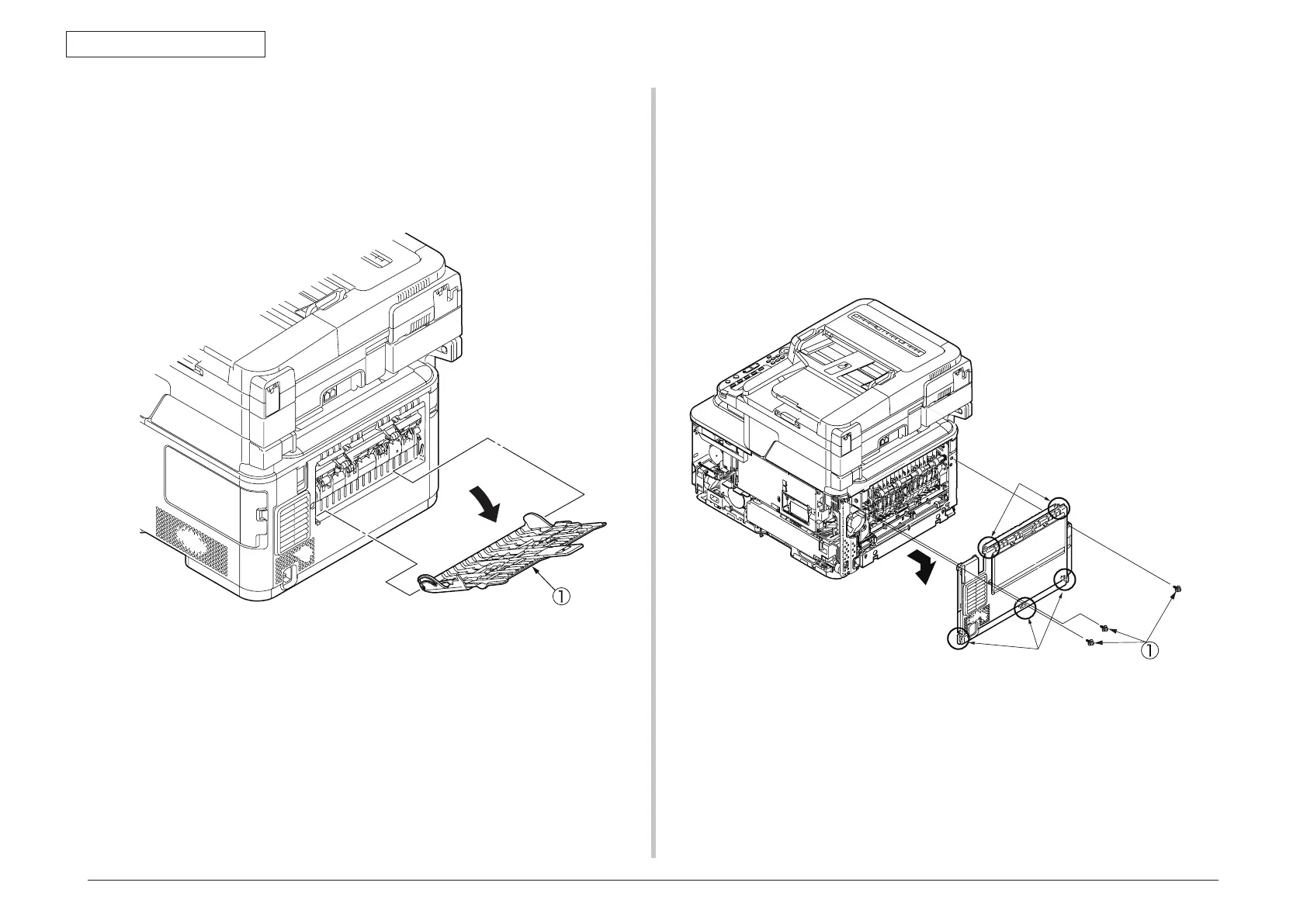

4.2.8 Face-up tray
(1) Open the face-up tray
â‘
in the direction of the arrow and, warping it, disengage
two portions to detach the face-up tray.
4.2.9 Rear cover
(1) Remove the left side cover and the right side cover. (See 4.2.3, 4.2.4)
(2) Remove the three (silver-colored) screws
â‘
.
(3
) Unlatch two portions A with a flat-blade screwdriver.
(4) Unlatch three portions B to slide the rear cover
â‘¡
in the direction of the arrow C to
detach it.
To Next Page
