44473001TH Rev.1

96 /

Oki Data CONFIDENTIAL

4.REPLACEMENT OF PARTS

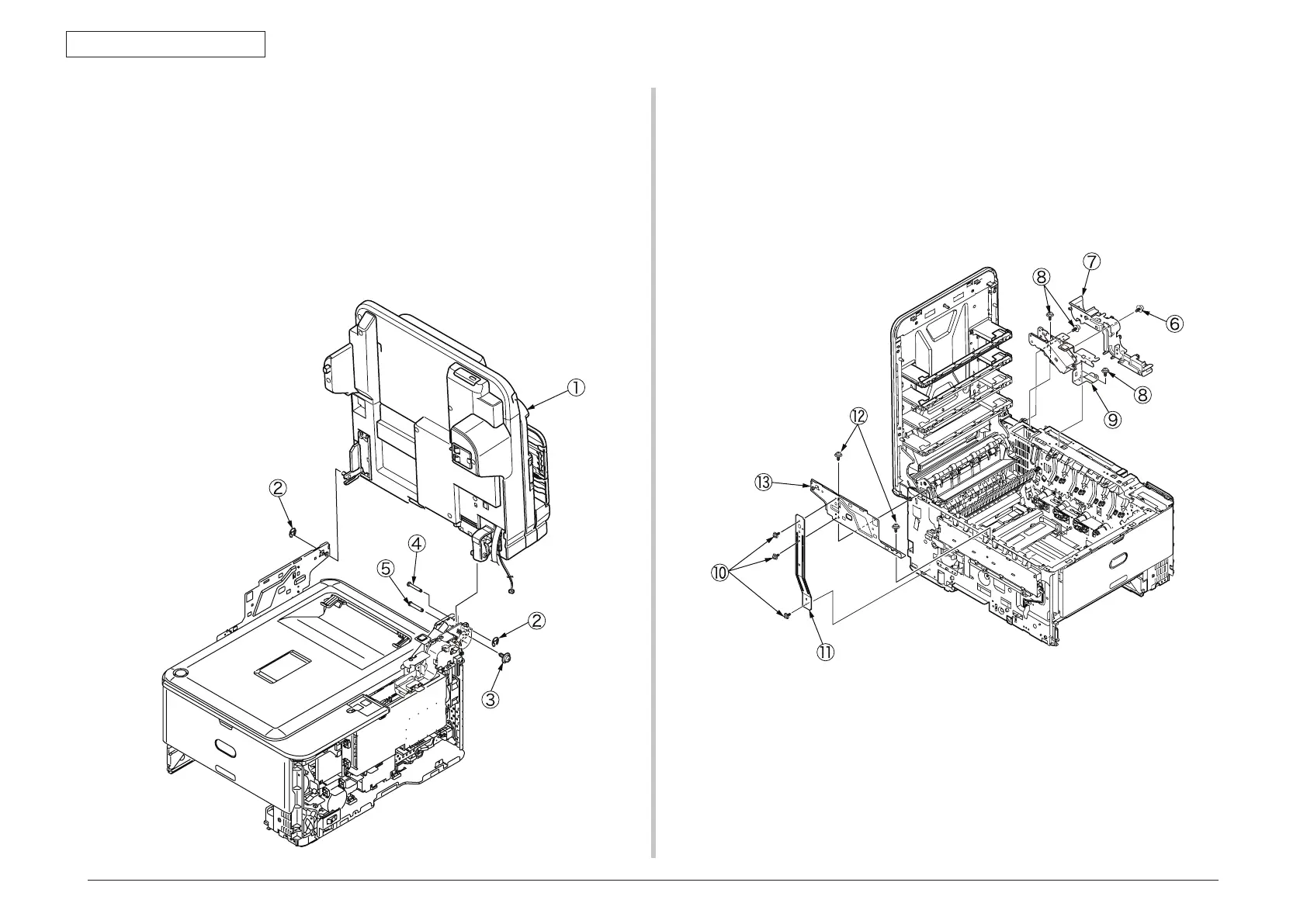

4.2.7 Scanner unit

(1) Remove the left side cover, the right side cover, the PU/CU PCB and the front

cover. (See 4.2.3, 4.2.4, 4.2.5 (4) and 4.2.6.)

(2) Remove the cover-hinge-R, the cover-stay-L and Remove the cover-hinge-RB. (See

4.2.6(2),(3),(4))

) Open the scanner

①

and remove the two E-shaped retainer rings

②

and screw

③

) Remove the shaft-stopper (hinge)

④

and remove the shaft-guide (hinge)

⑤

) Remove the scanner

①

) Remove the screw

⑥

and remove the guide cable

⑦

. Remove the three screws

⑧

and remove the hinge Assy FB

⑨

) Remove the three screws

⑩

and remove the plate support R

⑪

. Remove the two

screws

⑫

and remove plate support stay L

⑬
