4.REPLACEMENT OF PARTS
4.2.16 High-voltage power supply board

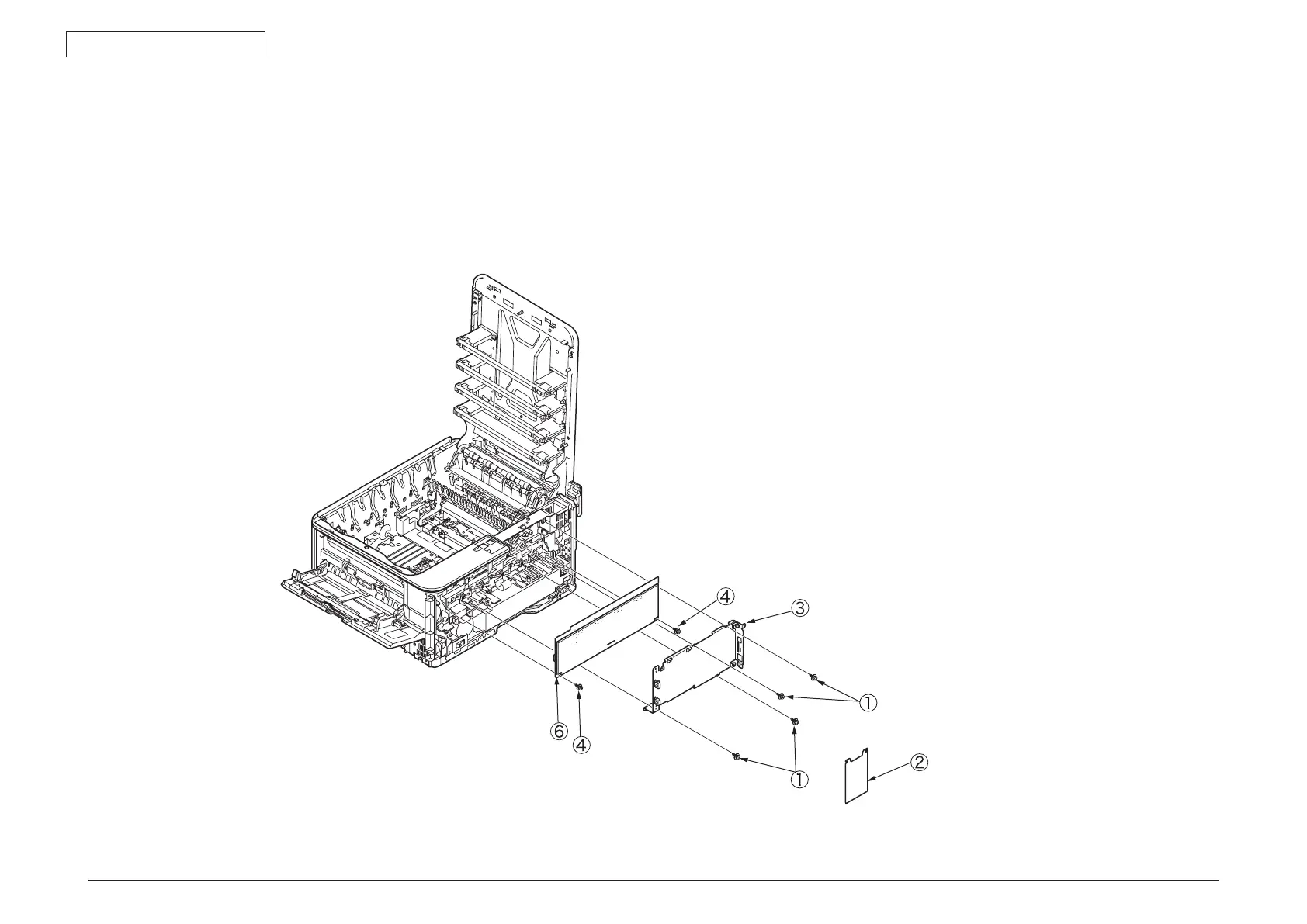

(1) Remove the right side cover and the CU/PU PCB.
(2) Remove the four (silver-colored) screws
①
to remove the film-PUCU board
②
and
the plate board
③
.
(3
) Remove the two (silver-colored) screw to remove the plate-FG
⑤
.
(4
) Unlatch the four portions to detach the high-voltage power supply board
⑤
.
