4.REPLACEMENT OF PARTS

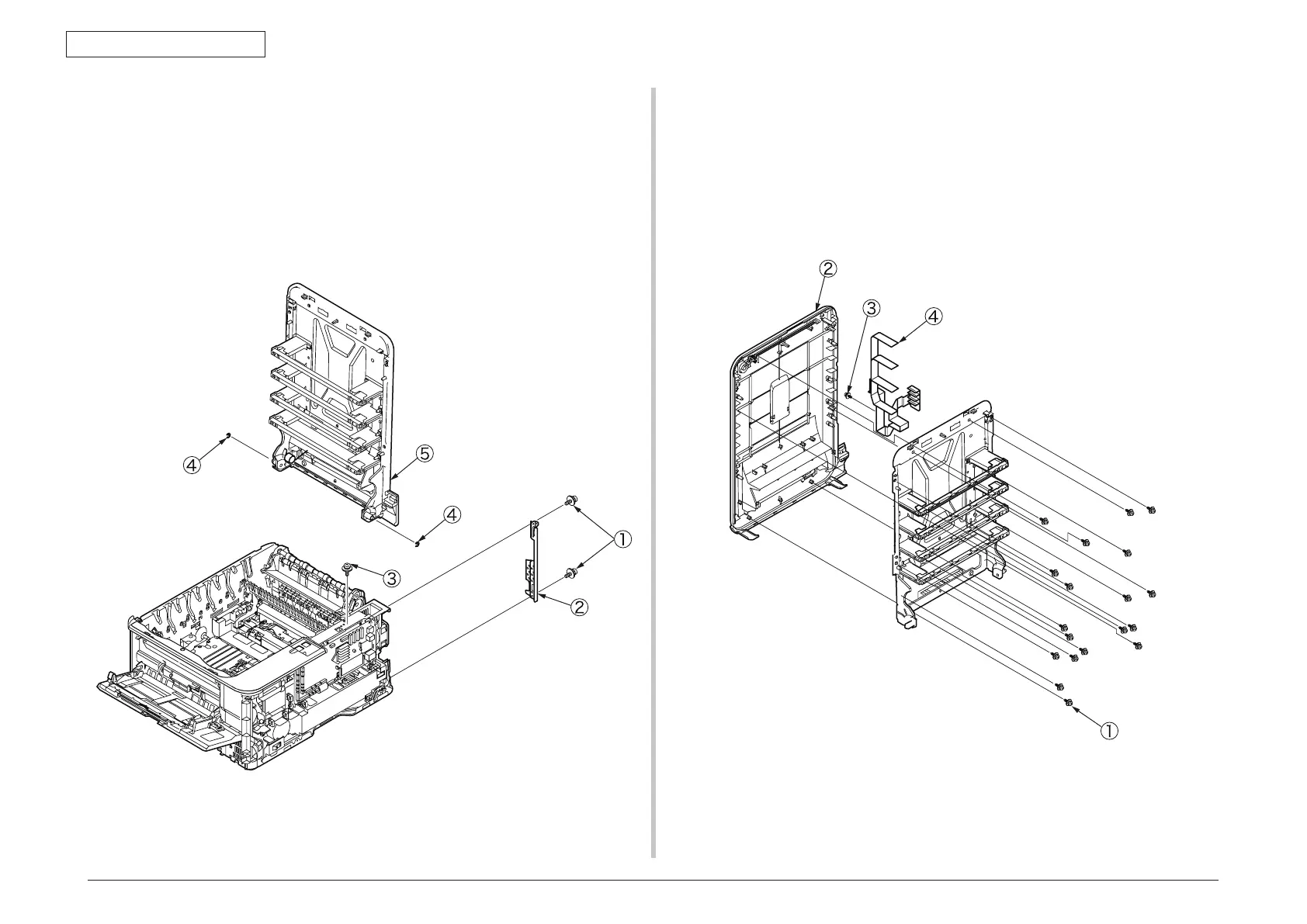

4.2.12 Top cover assembly
(1) Remove the left side cover, the right side cover and the rear cover.
(2) Remove the plate shield assembly and then the LED head cables.
(3) Remove the two screws
①
to remove the plate-rear
②
.
(4
) Remove the (silver-colored) screw
③
and then the two E-shaped retainer rings
④
to detach the top cover
⑤ .
4.2.13 Top cover and LED head cable assembly
(1) Demount the top cover assembly.
(2) Remove the 18 (black) screws
①
to detach the top cover
②
.
(3
) Remove the (silver-colored) screw
③
to detach the LED head cable assembly
④
.
×18
