4.REPLACEMENT OF PARTS
4.2.7.13 Frame-OP-panel / OPE board (MC351)

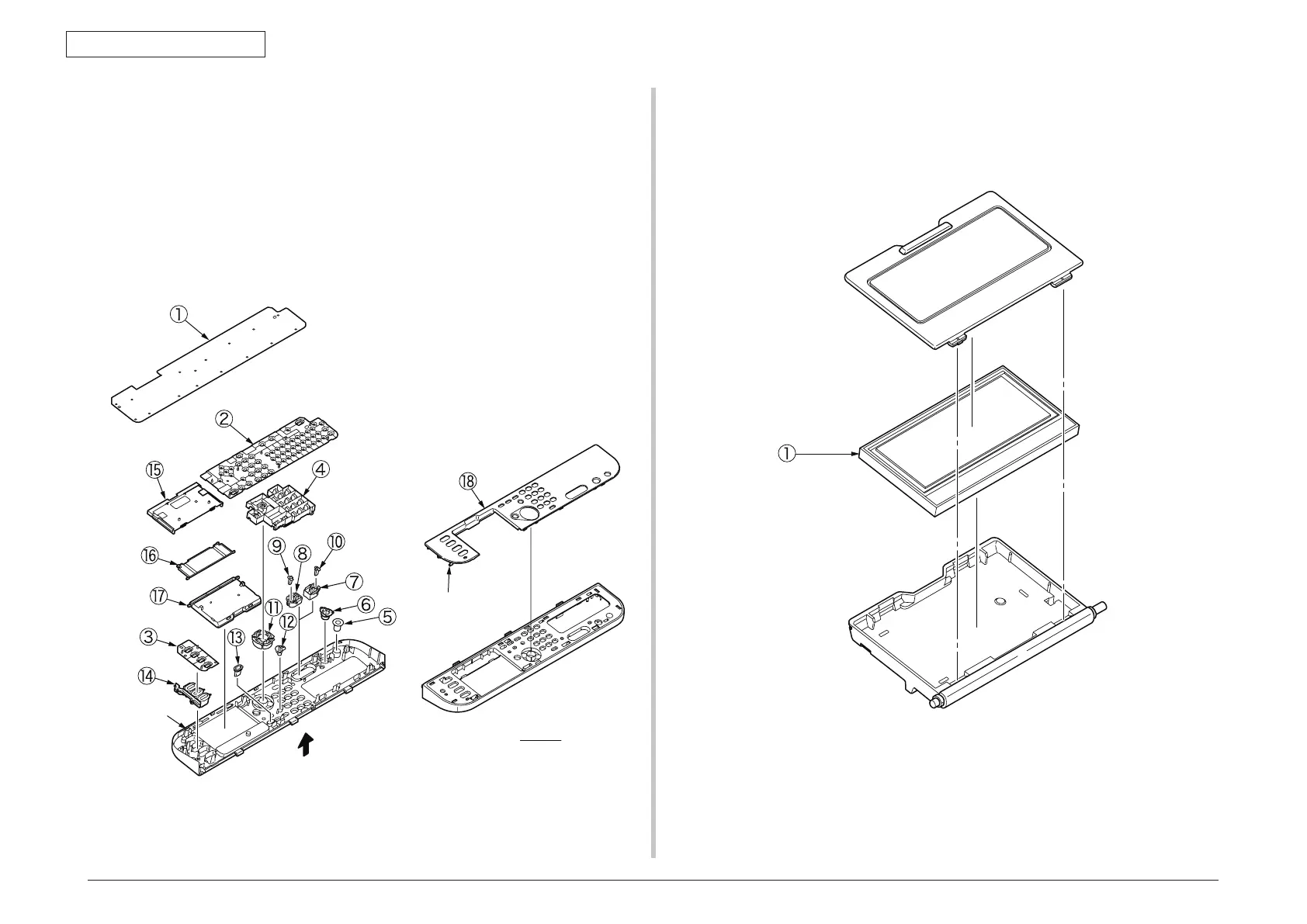

(1) Remove the eight claws to remove the OPE board
①
.
(2) Remove the rubber-pad (R)
②
and rubber-pad (L)
③
.
(3
) Remove the button and lens
④
to
⑭
.
(4
) Remove the cover bottom
⑮
and cover-cable
⑯
and LCD-assy
⑰
.
(5
) Remove the eleven latehes to remove the cover-op-panel
⑱
.
ViewA
ViewA
8 × claws
11 × Latches
4.2.7.14 LCD-assy
(1) Remove the LCD-assy
①
.
