1. CONFIGURATION

1.5.3 Telephone Line Interface Speciﬁcation

(Only MC561/MC361)

1.5.3.1 Outline of telephone Line Interface

The machine will reliably communicate with distant stations over voice-level telephone

line.

MC561/MC361 CHN-M is connectable only for erclncive use conversion equipment.

1.5.3.2 Telephone Line Interface Connector and Cable

Printer side : RJ-11

Cable side : TEL Cable (Cable with plug)

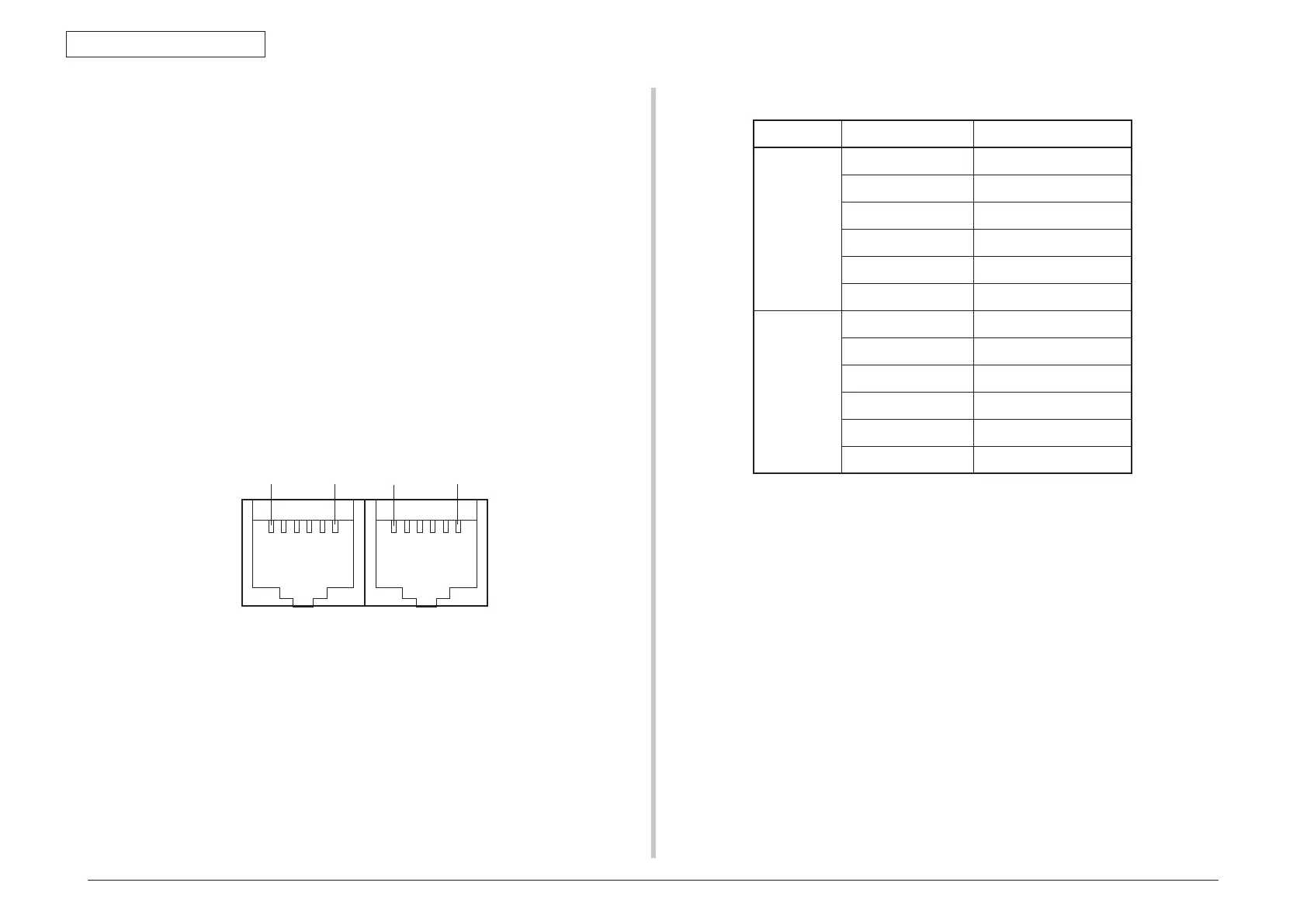

Connector contact arrengement

1.5.3.3 Telephone Line Interface signal

Contact No. Functions

TEL A1 Unspeciﬁed

A2 Unspeciﬁed

A3 TCP

A4 TCP

A5 Unspeciﬁed

A6 Unspeciﬁed

LINE B1 Unspeciﬁed

B2 Unspeciﬁed

B3 TCP

B4 TCP

B5 Unspeciﬁed

B6 Unspeciﬁed

TCP : Terminal Connection Point

A1 A6

B1 B6

TEL

LINE

1.5.3.4 USB Host Interface

USB A plug (male) connector

Connection devices

USB memory

Printer supply power: Maximum 500mA
