4.REPLACEMENT OF PARTS
⑤
44539301PA Hinge-Assy-L (ADF)
44539901PA Hinge-Assy-R (ADF)
Slider-Hinge (ADF)
Case-Hinge-L
(ADF)
Case-Hinge-R
(ADF)
EM-D110 Class C
EM-D110 Class A

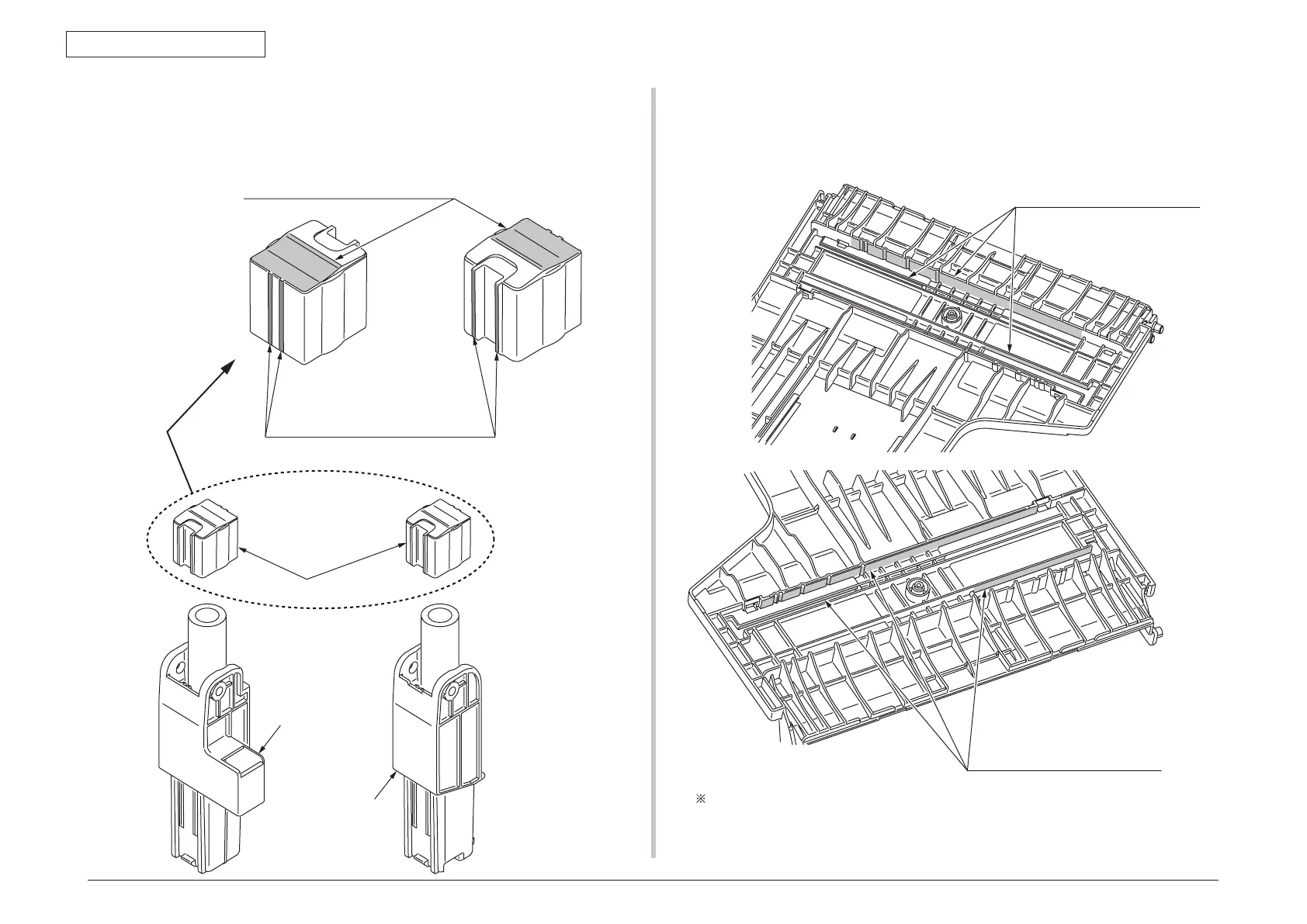

Apply a normal amount of MOLYKOTE
(EM-D110) to the hatched area.
Apply a small amount of MOLYKOTE
(EM-D110) to the hatched area.
(rib surface)
â‘¥
44538701PA Tray-Assy-Document 44538801_Tray-Document
SF-133 Class C
SF-133 Class C
Leave it for about 3minutes (drying time) after painting HANARL SF-133, and then
assemble the Tray-Assy-Document.
Apply a normal amount of HANARL
(SF-133) to the hatched area.
(3 sliding surfaces)
Apply a normal amount of HANARL
(SF-133) to the hatched area.
(3 sliding surfaces)
