4.REPLACEMENT OF PARTS
①
-3 44452301PA Side-R Assy.
①
-4 44452301PA Side-R Assy.

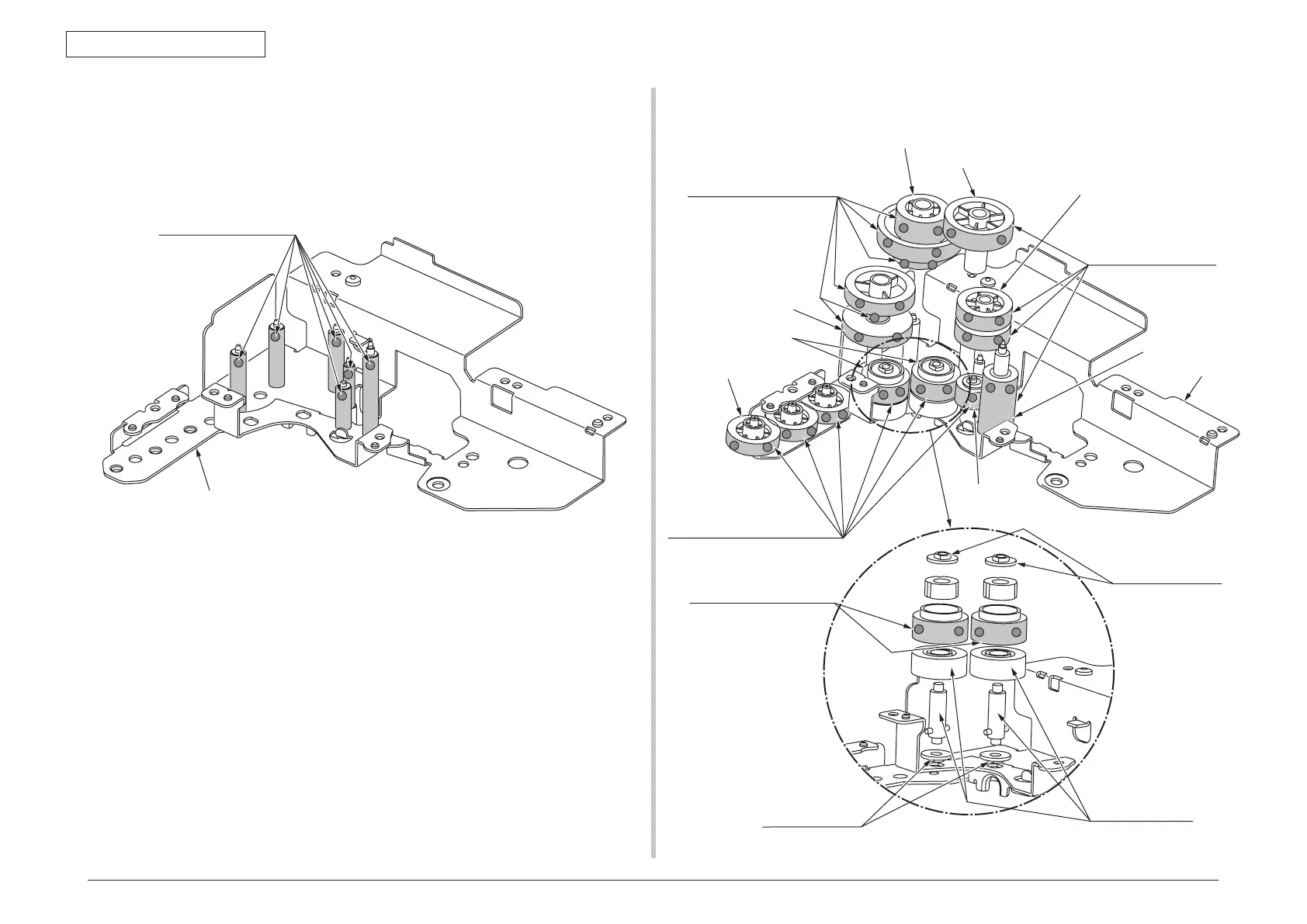

Plate-BF-Caulking
EM-30LP Class C
Apply a normal amount
of MOLYKOTE
(EM-30LP)
to the whole circle of
hatched areas. (Shaft
end surface side).
Gear-Idle-FUB
Gear-Idle-FUA
Gear-Idle-Exit-A
Gear-Idle-Exit-A
Gear-Planet
Gear-Reduct-FU
Gear-Liftup-A
Motor-DC-FU
Gear-Idle-DUP
EM-30LP Class B
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of gear
teeth (2 places).
EM-30LP Class B x2
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of gear
teeth (2 places).
EM-30LP Class B Apply
a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of
gear teeth (2 places).
EM-30LP Class B Apply a
normal amount of MOLYKOTE
(EM-30LP) to the whole circle
of gear teeth (2 places).
Grease prohibition
Grease prohibition
Grease prohibition
