4.REPLACEMENT OF PARTS

⑩

-1 44453701PA Cover-Assy.-Rear

⑩

-2 44453701PA Cover-Assy.-Rear

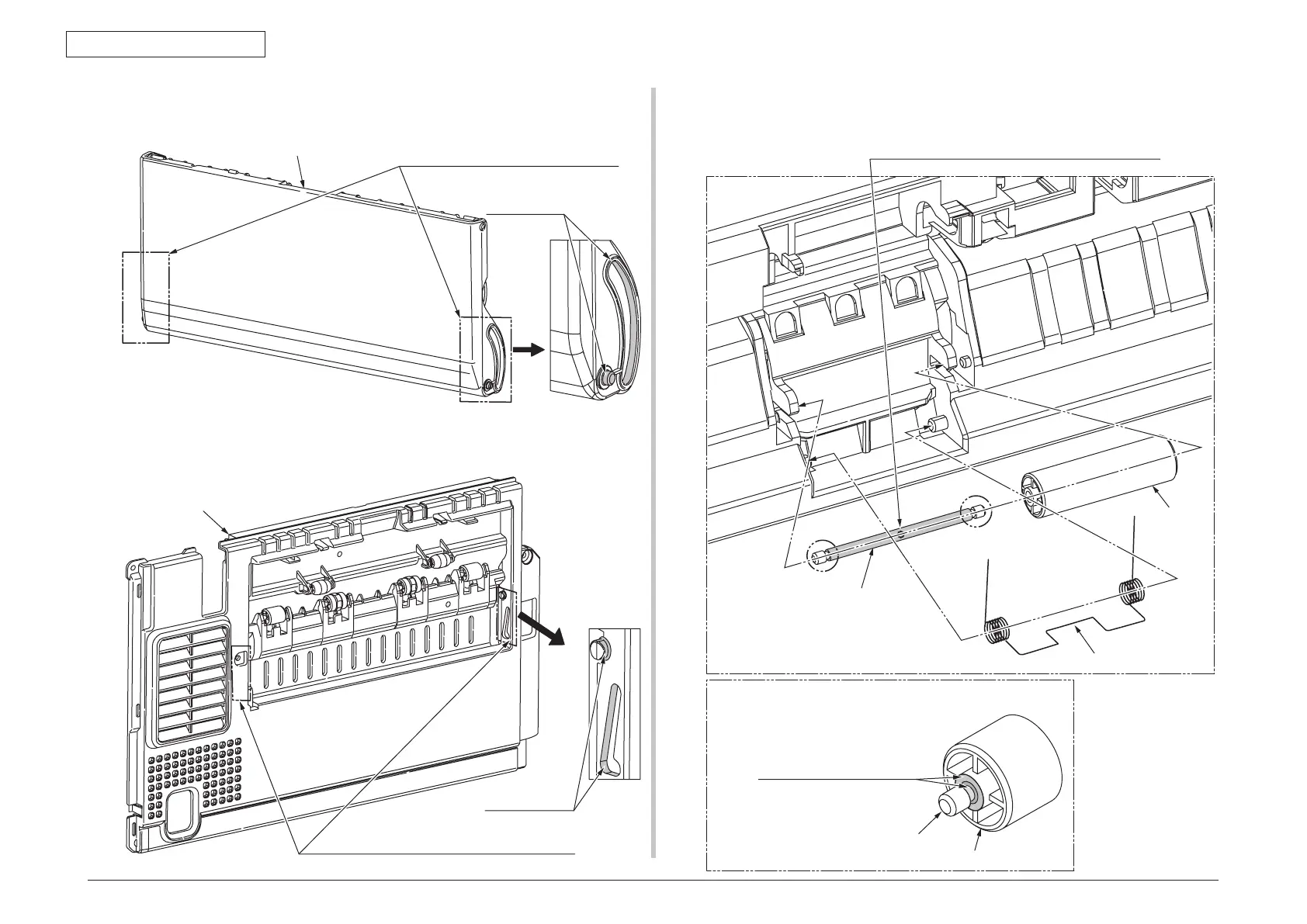

Stacker-FU_Base

SF-133 Class B

Apply a normal amount of HANAL (SF-133)

to the hatched areas.

Leave it for about 3 minutes (drying time) after painting HANAL SF-133, and then

assemble the Cover-Assy.-Stacker.

Hatched areas

Cover-Rear

SF-133 Class B

Apply a normal amount of HANAL (SF-133)

to the hatched areas.

Hatched areas

⑪

44359201PA Frame-Assy.-MPT

Note:1

Roller-Pitch

Shaft-Idle Dup

Roller-Pitch

Shaft-Idle-Dup

Spring-Torsion-Pitch

EM-30LP Class A

Apply a normal amount of

MOLYKOTE (EM-30LP) to the

hatched areas.

(Side of roller and ditch of shaft)

(The other side is also the same. :

Two places in total)

EM-30LP Class B

Apply a normal amount of MOLYKOTE (EM-30LP) to

the hatched areas. (Center of shaft)
