2. DESCRIPTION OF OPERATION
(7) Cover-opening motions of the color registration sensor and the density sensor
1.
As illustrated in Figure 2-9, when the solenoid is energized, the link lever
moves, causing the cover of the color registration sensor and the density
sensor to open.
2.
As the solenoid is de-energized, the spring pushes the cover, causing the
cover of the color registration sensor and the density sensor to close.

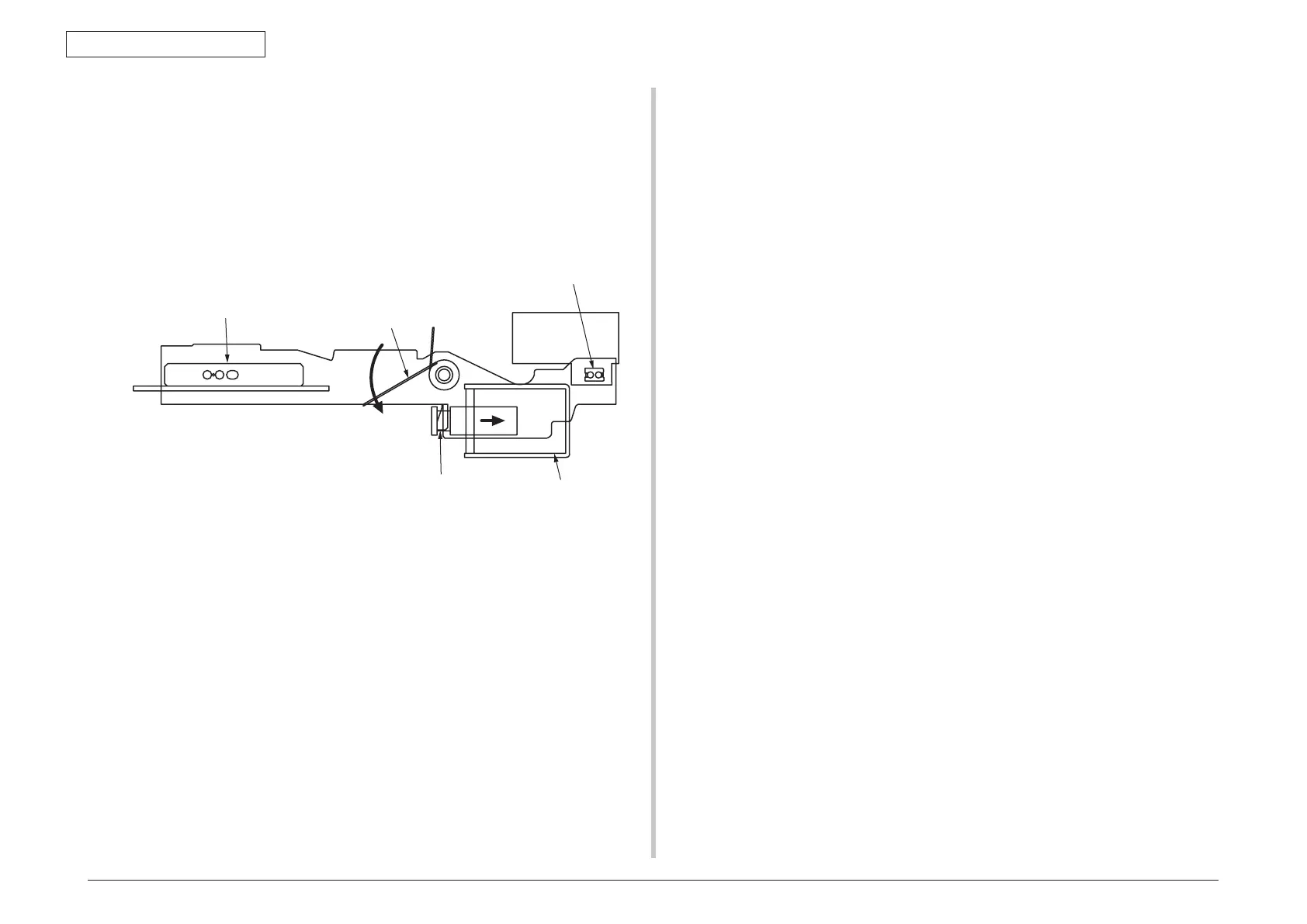

Figure 2-9
Density sensor
Spring
Color registration sensor
Link lever
Solenoid
