2.2 Top panel
OER-Elite OPERATION MANUAL
Ch.2
2.2 Top panel
No. Nomenclature Description

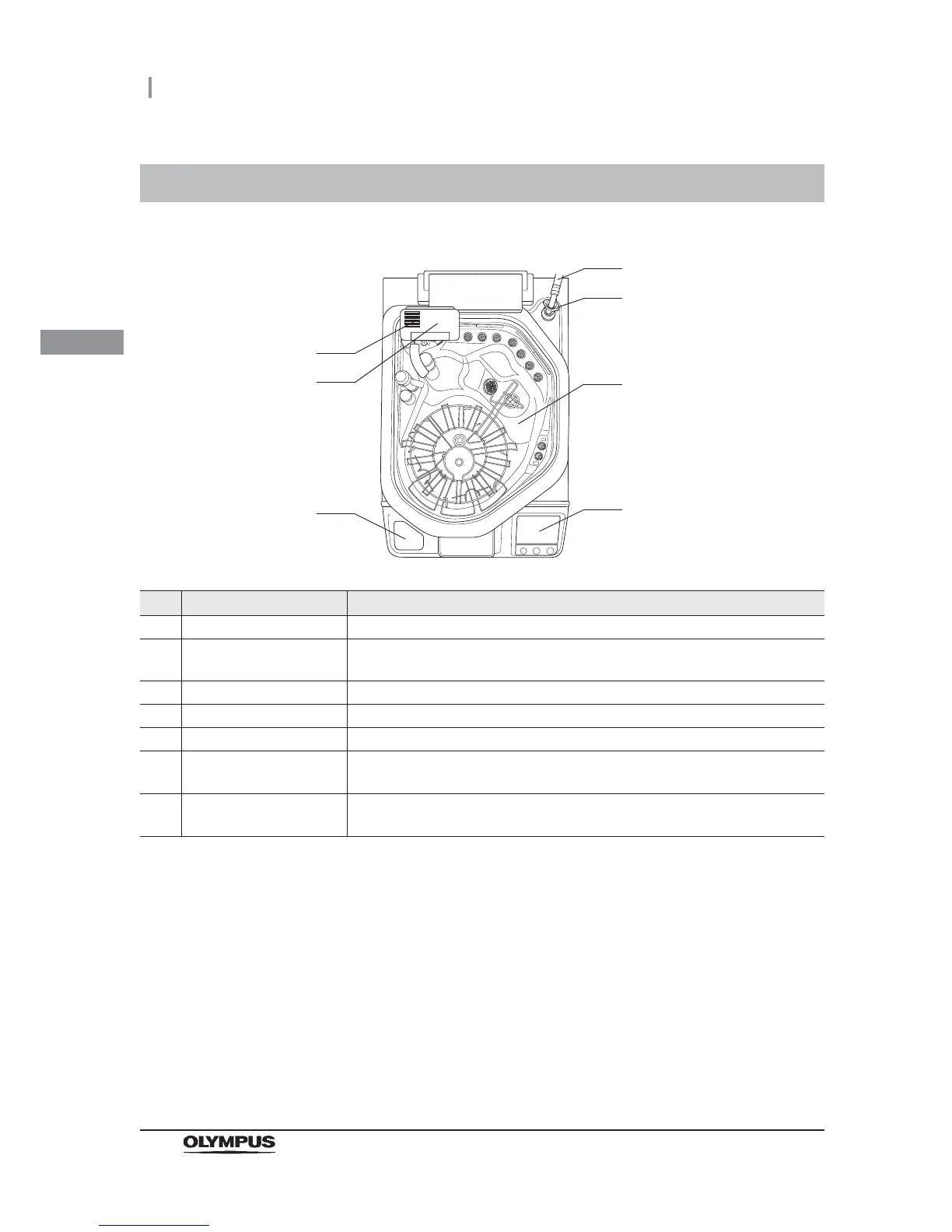

1 Water supply hose Supplies water for use in cleaning.
2 Water supply hose
connector
Connect the water supply hose. A mesh filter is built in this connector.
3 Lid Step on the foot pedal to open the lid.
4 Control panel Used for various setup and operation. Refer to Section 2.7, “Control panel”.
5 RFID reader Reads RFID tag for user ID, scope ID, and physician ID.
6 Gas filter case (lid) Accommodates the gas filter which removes the odor and vapor of the
disinfectant solution.
7 Ventilation openings on the
gas filter case
These are the slots for intake and exhaust of air into/from the reprocessing basin.
Do not block the ventilation openings on the gas filter case.
1
2
3
5
6
7
4
