2.4 Rear panel
OER-Elite OPERATION MANUAL
Ch.2

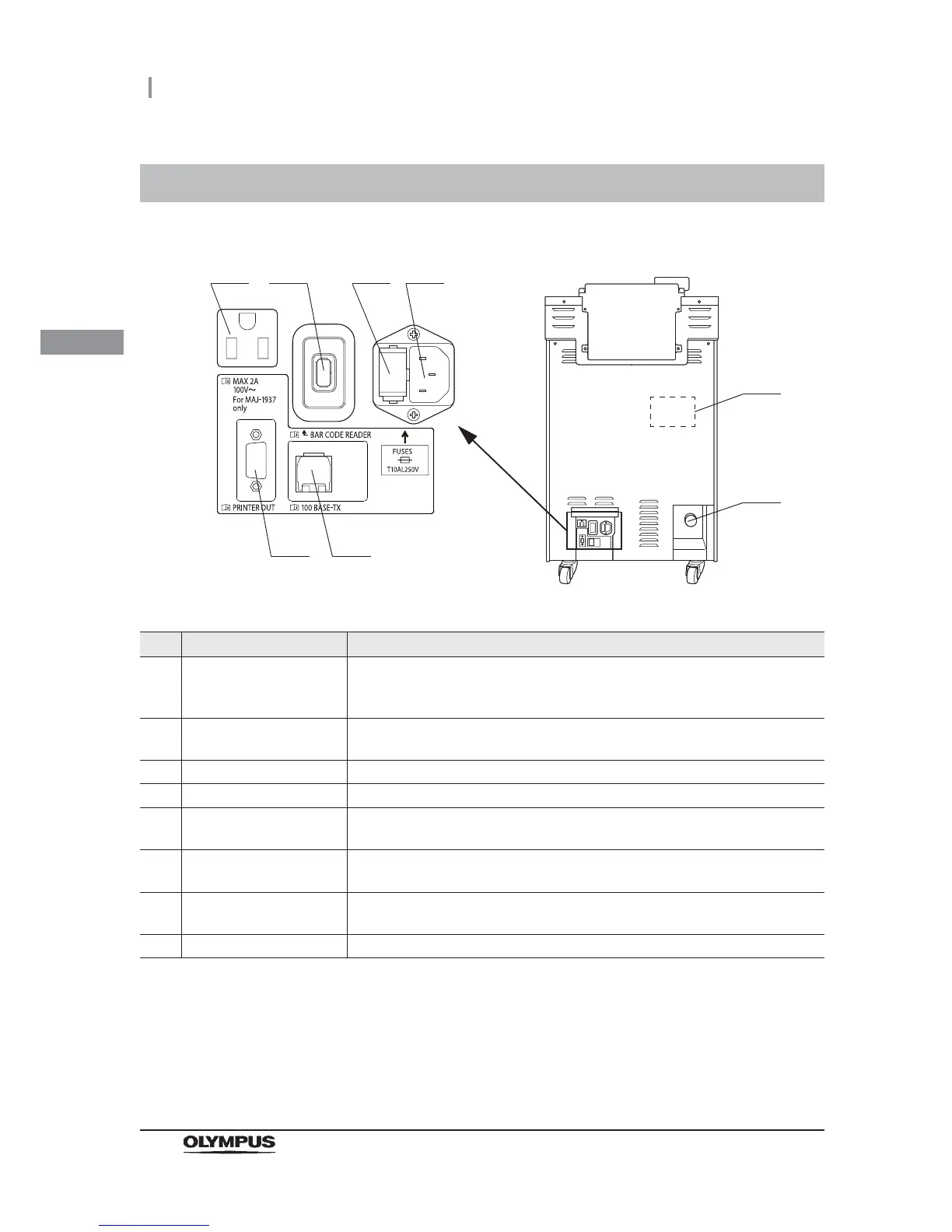

2.4 Rear panel
No. Nomenclature Description
1 Printer outlet Connect the power cord of the printer (MAJ-1937) provided with the optional
printer set (MAJ-2144) to feed power to it. Do not connect any devices other than
the specified printer.
2 Bar code reader port Connect the optional bar code reader (MAJ-2130).
Do not connect any devices other than the specified bar code reader.
3 Fuse (BOX) Protects the reprocessor from an over-current.
4 Power cord receptacle Connect the power cord.
5 100BASE-TX terminal Used to access the Olympus-designated external devices (for trained service
personnel only).
6 Printer communication port Connects the printer (MAJ-1937) provided with the optional printer set
(MAJ-2144). Do not connect any devices other than the specified printer.
7 Buckling guard attaching
holes
Screw holes used to attach the buckling guard.
8 Drain hose connector Connect the drain hose.
1
7
2 3 4
56
8
