3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Block Programming Instructions
3
BPPS/BPRS
Hint
• If a paused block program contains TIMW(813), TIMWX(816), TMHW(815), or TMHWX(817), the PV
of the timer will continue to elapse even while the block program is paused.
Example Programming
Note If the block program that is being paused appears after BPPS(811), it will not be executed. If the block pro-
gram appears before BPPS(811), it will be paused starting the next cycle.

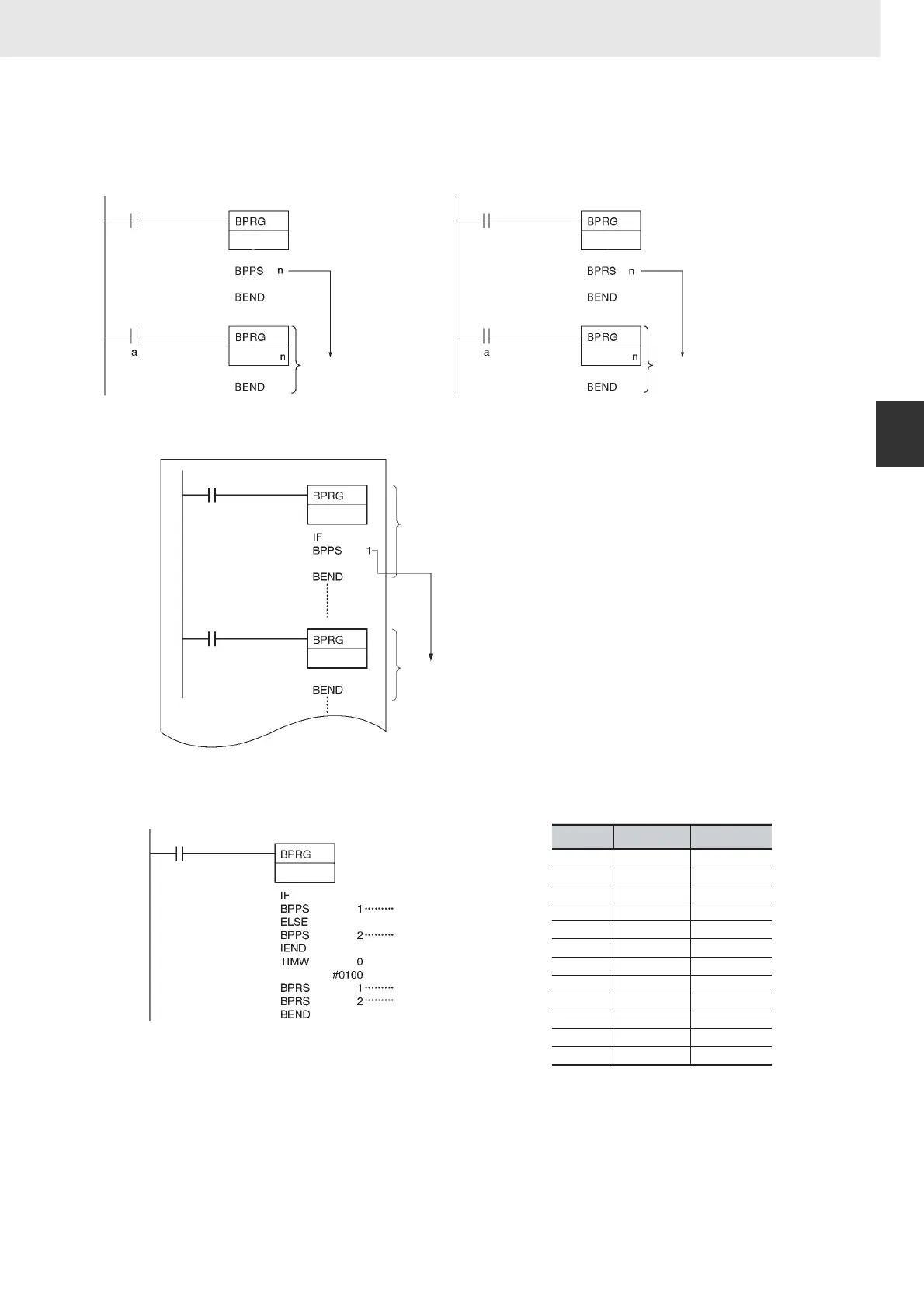

If CIO 0.00 is ON, the following program pauses execution of either block program 1 or block
program 2 depending on the status of CIO 0.01. The block program that was paused is then
restarted after 10 seconds.
to
BPRS(812) executed
for block program n.
Block program n.
This block program
will now be executed
as long as bit "a" is ON.
BPPS(811) executed
for block program n.
Block program n.
Once paused this
block program will
not be executed
even if bit "a" is ON.
to
to
to
to
to
0
1
Block program 0
Block program 1 will be paused if CIO 0.00
and CIO 0.01 are both ON.
Block program 1
If the BPPS(811) in block program 0 has
been executed, block program 1 will not be
executed even if CIO 0.02 is ON.
0.00
0.02
0.01
#0100
000200 LD 0.00
000201 BPRG(096) 0
000202 IF(802) 0.01
000203 BPPS(811) 1
---
---
---
000204 ELSE(803)
000205 BPPS(811) 2
000206 IEND(804)
000207 TIMW(803) 0000
000208 BPRS(812) 1
000209 BPRS(812) 2
000210 BEND(801)
0
Pauses block program 1
Pauses block program 2
Restarts block program 1
Restarts block program 2
Address
Instruction
Operands
0.00
0.01
