3. Instructions
234
CS/CJ/NSJ Series Instructions Reference Manual (W474)

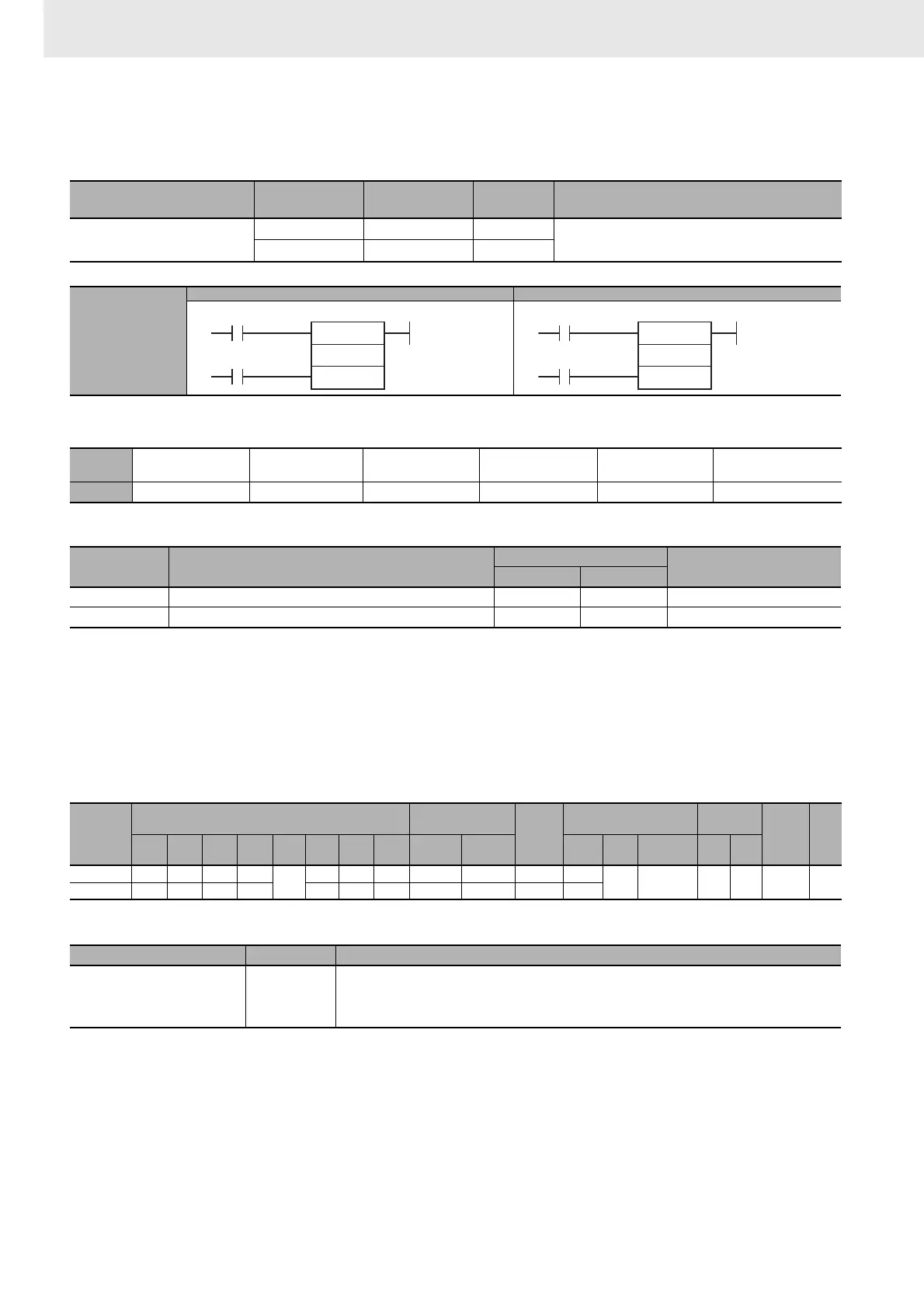

TTIM/TTIMX
Applicable Program Areas
Operands
N: Timer Number
The timer number must be between 0000 to 4095 (decimal).
S: Set Value
The set value must be between #0000 and 9999 (BCD).
&0 to 65535 decimal or #0000 to FFFF hex (Binary).
z Operand Specifications
Flags
Instruction Mnemonic Variations
Function
code
Function
ACCUMULATIVE TIMER
TTIM --- 087
TTIM(087)/TTIMX(555) operates an incrementing
timer with units of 0.1-s.
TTIMX --- 555
Symbol
TTIM TTIMX
BCD Binary
Area
Function block
definitions
Block program areas Step program areas Subroutines Interrupt tasks
SFC action or transition
programs
Usage OK Not allowed OK OK Not allowed OK
Operand Description
Data type
Size
TTIM TTIMX
N Timer Number TIMER TIMER 1
S Set Value WORD UINT 1
Area
Word addresses
Indirect DM/EM
addresses
Con-
stants
Registers Flags
Pulse
bits
TR
bits
CIO WR HR AR T C DM EM
@DM
@EM
*DM
*EM
DR IR
Indirect
using IR
TK CF
N --- --- --- ---
OK
--- --- --- --- --- --- ---
--- OK --- --- --- ---
S OKOKOKOK OKOKOK OK OK OK OK
Name Label Operation
Error Flag P_ER • ON if N is indirectly addressed through an Index Register but the address in the Index Register is not
the address of a timer Completion Flag or timer PV.
• ON if in BCD mode and S does not contain BCD data.
• OFF in all other cases.
TTIM(087)
N
S
Timer input
Reset input
S: Set value
N: Timer number
TTIMX(555)
N
S
Timer input
Reset input
S: Set value
N: Timer number
