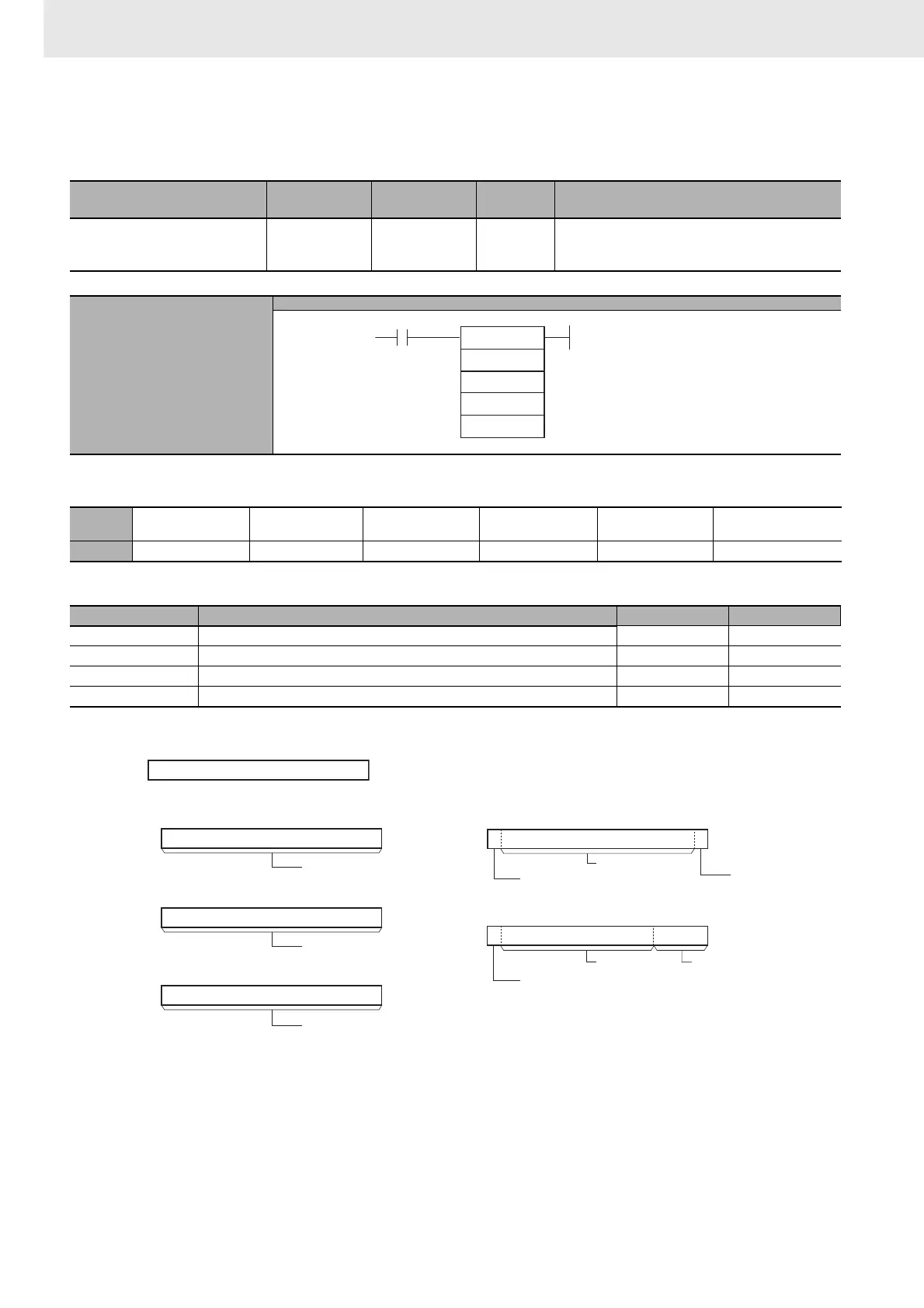

CS/CJ/NSJ Series Instructions Reference Manual (W474)
RSORT
Applicable Program Areas
Operands
S: First word of first record to sort
C: First control word
Instruction Mnemonic Variations
Function
code
Function
UNSIGNED ONE-WORD
RECORD SORT
RSORT @RSORT 203
Sorts the records in the specified table according
to the data (1 word) at the specified position in the
records.
Symbol
RSORT
Area
Function block
definitions
Block program areas Step program areas Subroutines Interrupt tasks
SFC action or
transition programs
Usage OK OK OK OK OK OK
Operand Description Data type Size
C First control word WORD 87
S1 First word of first record to sort WORD Variable
D1 First word of sorting results WORD 1
D2 Destination index register DWORD 2
RSORT(203)
C
S
C: First control word
S: First word of first record to sort
D1: First word of sorting results
D2: Destination index register
D1
D2
S
0
15
C
0
15
Number of records:
1 to 32768 decimal
(maximum: 32,768)
C+1
0
15
Record length (in words):
1 to 1024 decimal
(maximum: 1,024)
C+2
0
15
Sort data offset (in words):
0 to 1023 decimal
C+3
0
15
0: Ascending
1: Descending
01
14
0: Disable split sort
1: Enable split sort
Always 0.
00000000000000
C+4
0
15
043
14
Index register output designation
0: Do not output
1: Output
Always 0. Setting to end sorting
0 hex: Disabled
1 hex: Enabled for end data
2 hex: Enabled for end PLC
memory address
00000000000
To Next Page
