3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Sequence Control Instructions
3

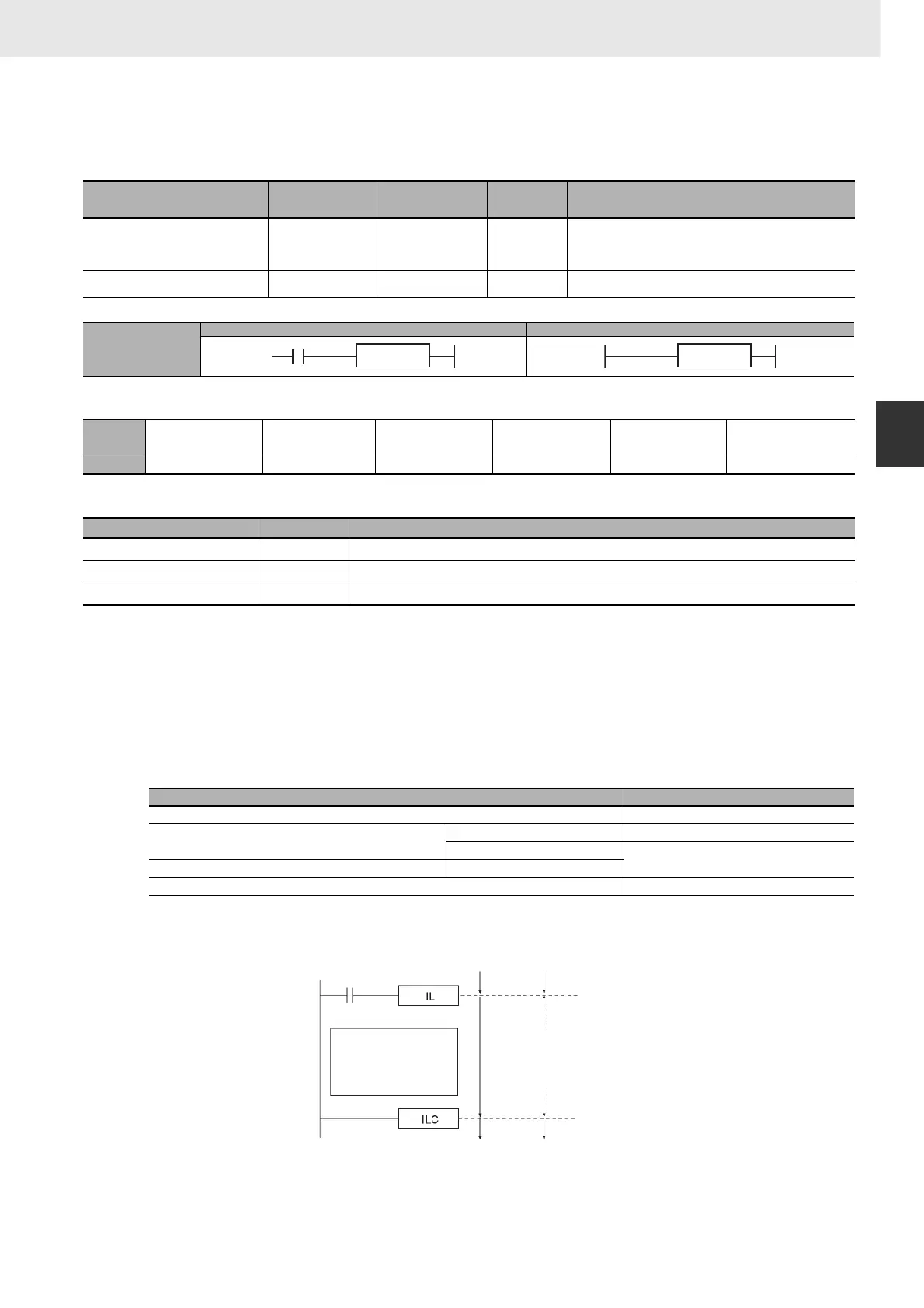

IL/ILC
IL/ILC
Applicable Program Areas
Flags
*1 In CJ2, CS1-H, CJ1-H, CJ1M, and CS1D (for Single-CPU System) CPU Units, the Equals and Negative Flags are left unchanged.
In CS1D CPU Units for Duplex Systems, CS1 CPU Units, and CJ1 CPU Units, these are turned OFF.
Function
When the execution condition for IL(002) is OFF, the outputs for all instructions between IL(002) and
ILC(003) are interlocked. When the execution condition for IL(002) is ON, the instructions between
IL(002) and ILC(003) are executed normally.
The following table shows the treatment of various outputs in an interlocked section between IL(002)
and ILC(003).
Note Bits and words in all other instructions including TTIM(087), TTIMX(555), MTIM(543), MTIMX(554), SET,
RSET, CNT, CNTX(546), CNTR(012), CNTRX(548), SFT, and KEEP(011) retain their previous status.
Instruction Mnemonic Variations
Function
code
Function
INTERLOCK IL --- 002
Interlocks all outputs between IL(002) and
ILC(003) when the execution condition for IL(002)
is OFF.
INTERLOCK CLEAR ILC --- 003 Indicates the end of the interlock range.
Symbol
IL ILC
Area
Function block
definitions
Block program areas Step program areas Subroutines Interrupt tasks
SFC action or
transition programs
Usage OK Not allowed Not allowed OK OK OK
Name Label Operation
Error Flag ER
Unchanged
*1
Equals Flag =
Unchanged
*1
Negative Flag N
Unchanged
*1
Instruction Treatment
Bits specified in OUT, OUT NOT, or OUTB(534) OFF
TIM, TIMX(550), TIMH(015), TIMHX(551), TMHH(540),
TMHHX(552), TIML(542), and TIMXL(553)
Completion Flag OFF (reset)
PV Time set value (reset)
TIMU(541), TIMUX(556), TMUH(544), and TMUHX(557) Cannot be referenced.
Bits/words specified in all other instructions (See note.) Retain previous status.
IL(002) ILC(003)
Execution
condition
Execution
condition ON
Execution
condition OFF
Interlocked section
of the program
Outputs
interlocked.
Normal
execution
