3. Instructions
202
CS/CJ/NSJ Series Instructions Reference Manual (W474)

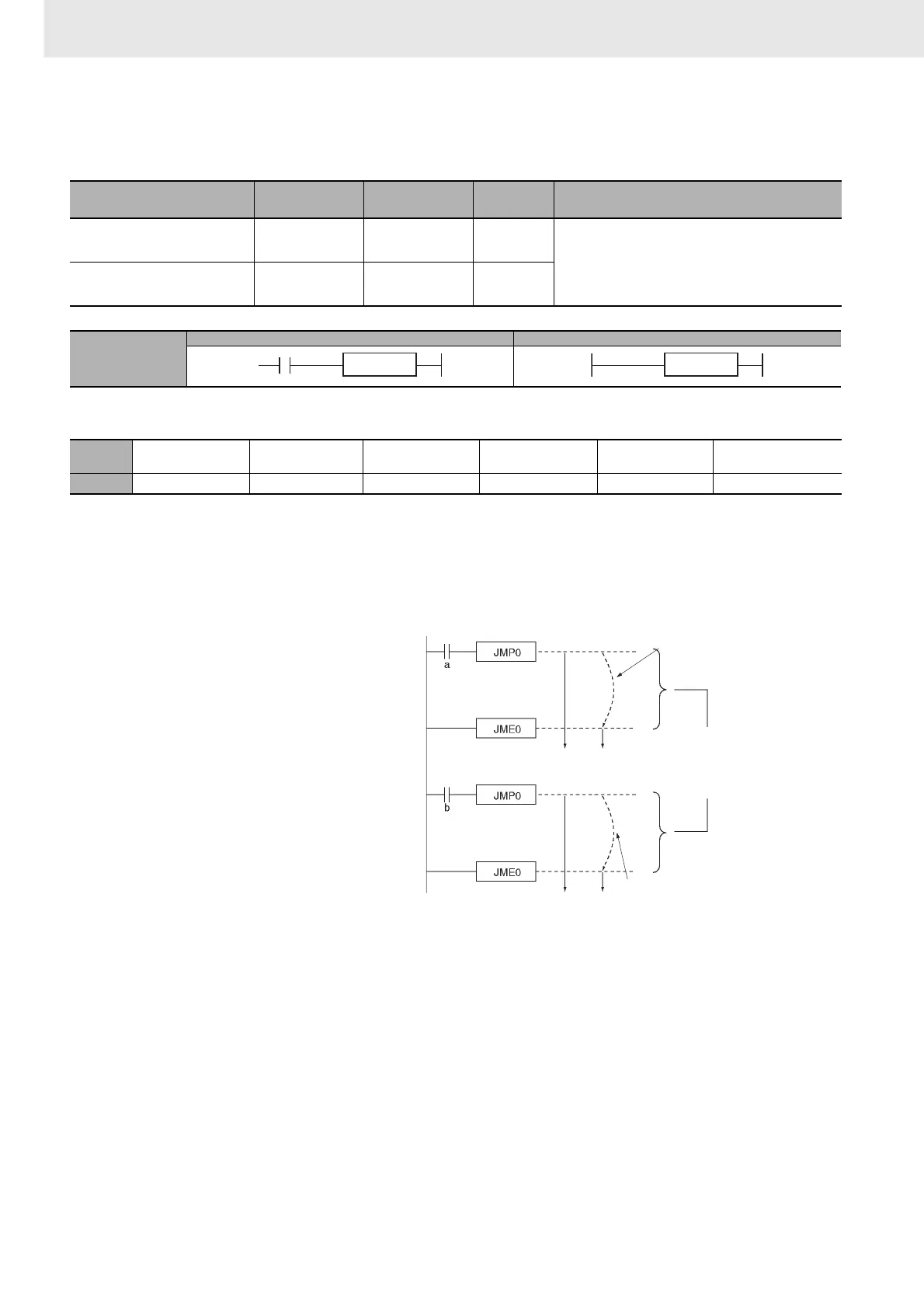

JMP0/JME0
Applicable Program Areas
Flags
There are no flags affected by this instruction.
Function
Instruction Mnemonic Variations
Function
code
Function
MULTIPLE JUMP JMP0 --- 515
When the execution condition for JMP0(515) is
OFF, all instructions from JMP0(515) to the next
JME0(516) in the program are processed as
NOP(000).
MULTIPLE JUMP END JME0 --- 516
Symbol
JMP0 JME0
Area
Function block
definitions
Block program areas Step program areas Subroutines Interrupt tasks
SFC action or
transition programs
Usage OK Not allowed Not allowed OK OK OK
When the execution condition for
JMP0(515) is ON, no jump is made and
the program executed consecutively as
written.
When the execution condition for
JMP0(515) is OFF, all instructions from
JMP0(515) to the next JME0(516) in the
program are processed as NOP(000).
Unlike JMP(004), CJP(510), and
CJPN(511), JMP0(515) does not use
jump numbers, so these instructions
can be placed anywhere in the
program.
JMP0(515) JME0(516)
Instructions
executed
Instructions
executed
Execution
condition b ON
Execution
condition b OFF
Instructions jumped
Jumped instructions
are processed as
NOP(000). Instruction
execution times are the
same as NOP(000).
Instructions
jumped
Execution
condition a ON
Execution
condition a OFF
