3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
SFC Instructions
3
SA/SE
Example Programming

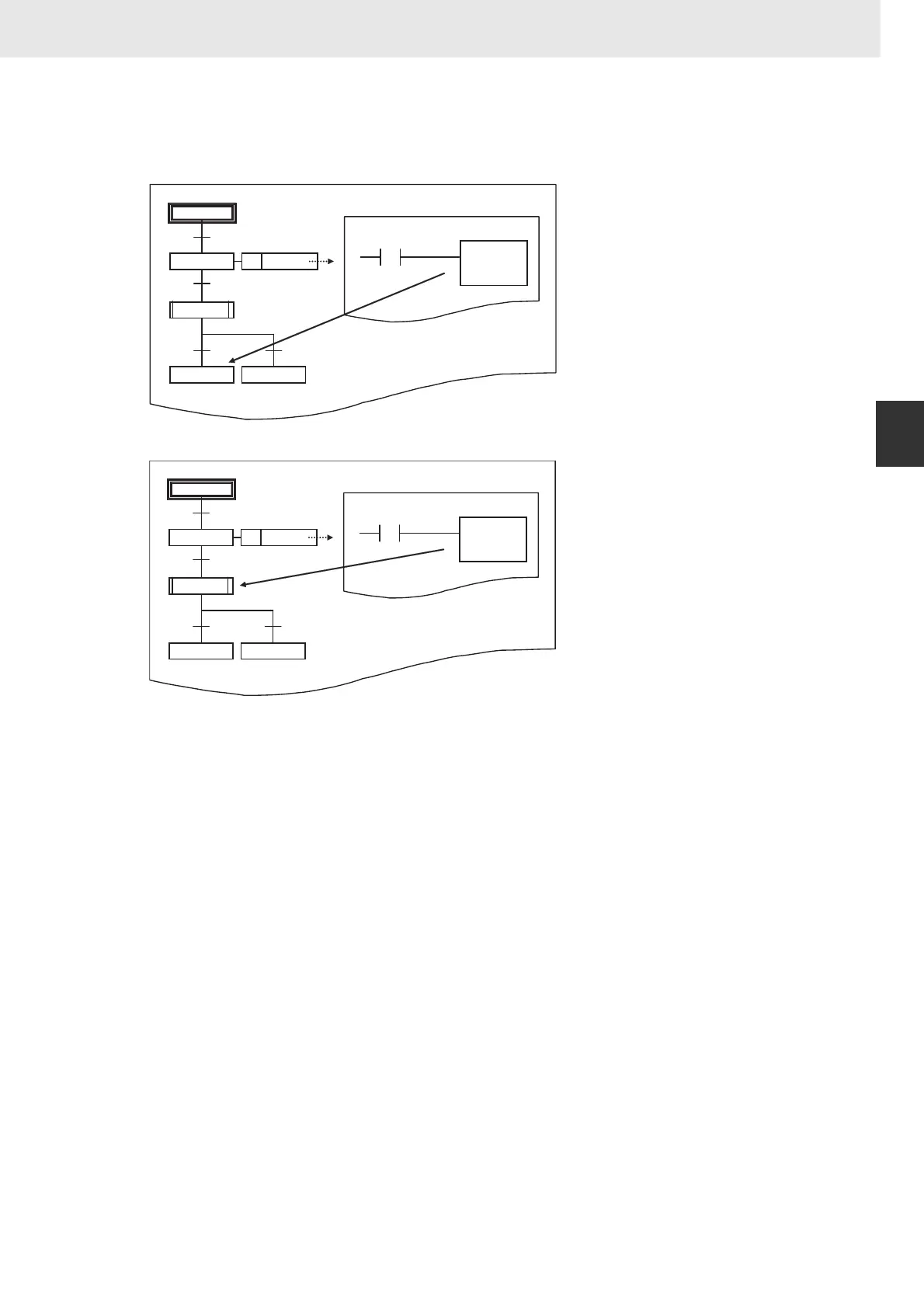

In the following example, step 4 will become active when W0.0 turns ON.
In the following example, step 3 (a subchart step) will become active when W0.1 turns ON.
Precaution
• Designate Step Flags in the form step_name.X. Refer to the SYSMAC CS/CJ Series Programmable
Controllers Operation Manual SFC Programming (W469) for details.
• Steps within subcharts cannot be specified.
• These instructions cannot be input or displayed on a Programming Console. “?” will be displayed.
SA
Step4.X
N Action1
Step1
Step2
Step4 Step5
Step3
Made active
W0.0
●
SA
Step3.X
N Action1
Step1
Step2
Step4 Step5
Step3
Made active
W0.1
●
