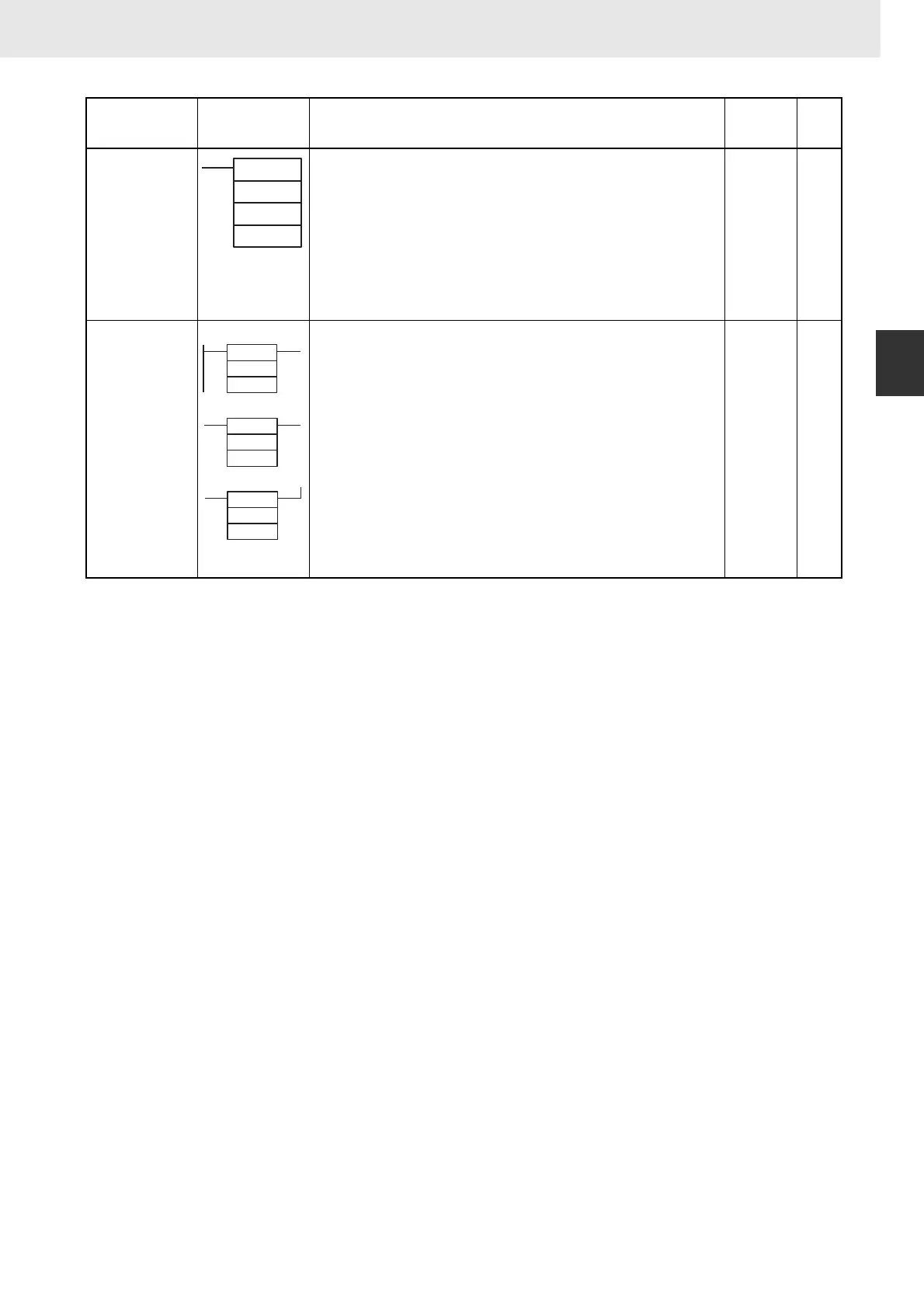

CS/CJ/NSJ Series Instructions Reference Manual (W474)
2. Summary of Instructions
2-2 Instruction Functions
2
2-2-14 Double-precision Floating-point Instructions
DOUBLE EXPO-
NENTIAL
POWER
PWRD
@PWRD
860
Raises a double-precision floating-point number (64 bits) to the power of
another double-precision floating-point number and outputs the result to
the result words.
Output
Required
544
DOUBLE SYM-
BOL COMPARI-
SON
LD, AND. or OR
+
=D (335),
<>D (336),
<D (337),
<=D (338),
>D (339),
or >=D (340)
Compares the specified double-precision data (64 bits) and creates an ON
execution condition if the comparison result is true.
Three kinds of symbols can be used with the floating-point symbol com-
parison instructions: LD (Load), AND, and OR.
LD:
Not
required
AND or
OR:
Required
546
Instruction
Mnemonic
Code
Symbol/Operand Function Location
Execution
condition
Page
PWRD(860)
B
E
R
B: 1st base word
E: 1st exponent
word
R: 1st result word
S1
S2
S1
S2
S1
S2
S1: Comparison data 1
S2: Com
p
arison data 2
Symbol, option
Using LD:
Symbol, option
Using AND:
Symbol, option
Using OR:
