3. Instructions
CS/CJ/NSJ Series Instructions Reference Manual (W474)
Sequence Input Instructions
3
AND TST/AND TSTN
Function
Precautions
• TST(350) and TSTN(351) are intermediate instructions, i.e., they cannot be used as right-hand
instructions. Be sure to program a right-hand instruction after TST(350) or TSTN(351).
Example Programming
i
z AND TST
AND TST(350) is used in the program like AND; the execution condition is ON when the specified bit in
the specified word is ON, and OFF when the bit is OFF.
z AND TSTN
AND TSTN(351) is used in the program like AND NOT; the execution condition is OFF when the
specified bit in the specified word is ON, and ON when the bit is OFF.

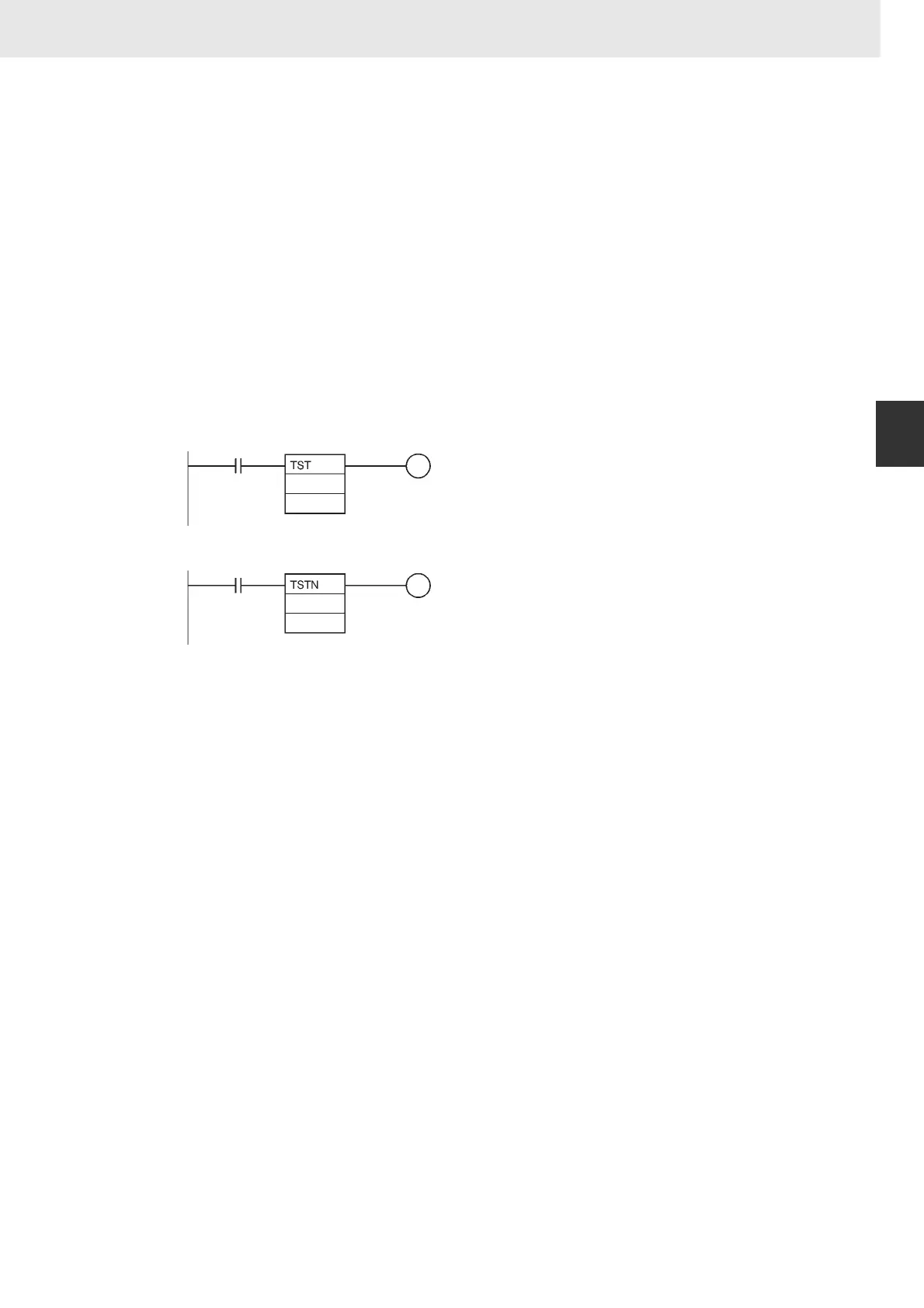

&3
In the left example, CIO 0.01 is turned ON when
CIO 0.00 and bit 3 of D10 are both ON.
In the left example, CIO 0.01 is turned ON when
CIO 0.00 is ON and bit 5 of D10 is OFF.
&5
D10
D10
0.01
0.00
0.00
0.01
