Example Programming

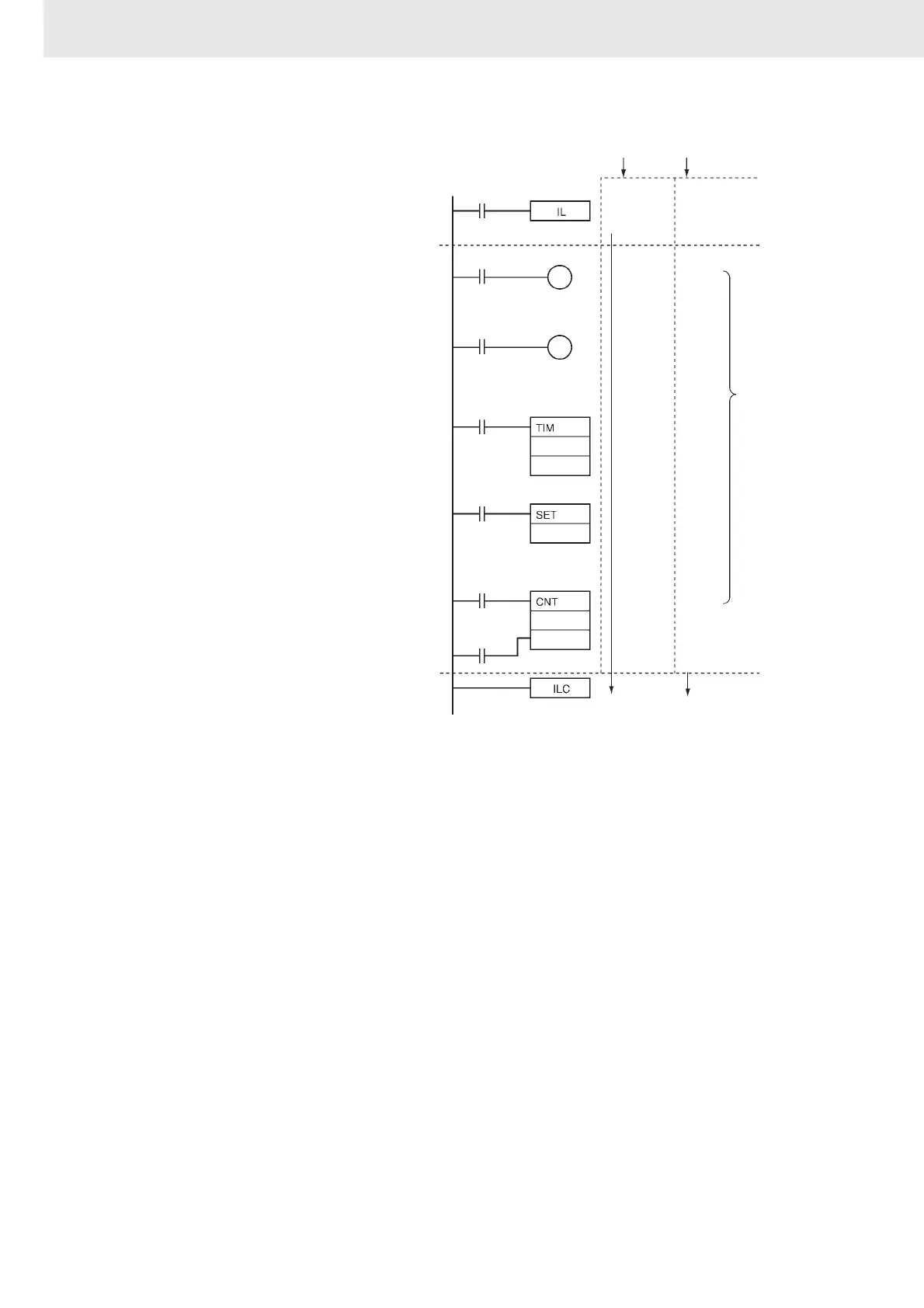

When CIO 0.00 is OFF in the right example, all
outputs between IL(002) and ILC(003) are
interlocked. When CIO 0.00 is ON in the right
example, the instructions between IL(002) and
ILC(003) are executed normally.
0.00 ON 0.00 OFF
OFF
OFF
0.00
0.01
0.02
0.03
2.00
H0
Reset
Retained
Retained
Normal
execution
Outputs
interlocked
